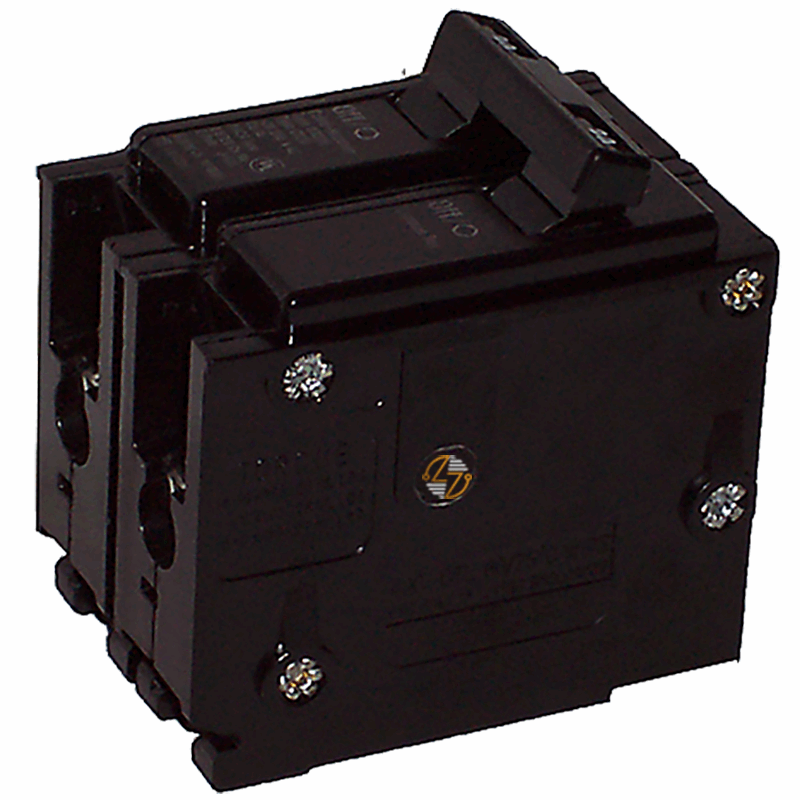

C250 - 50Amp Circuit Breaker

C250 - 50Amp Circuit Breaker

The C250 is a 50 Amp, 2-pole circuit breaker designed for use in compatible Type C electrical panels. It's commonly used on 120/240VAC circuits that require both poles to trip together when an overload or short circuit occurs. That's what the common trip feature is designed to do—if a fault is detected on either pole, both disconnect at the same time to help protect the circuit and connected equipment.

If you're replacing an existing breaker, matching the amperage is only part of the job. The breaker type, pole configuration, voltage rating, and panel compatibility all need to match the original installation.

Its HACR rating allows it to be used in approved heating, air conditioning, and refrigeration applications, but that's only part of where you'll find a breaker like this in service. The C250 is also commonly used for water heaters, compressors, pumps, air conditioning condensers, workshop equipment, and other dedicated 240-volt circuits. In most electrical systems, breakers sit quietly in the background for years. When something goes wrong, though, they're expected to react immediately. That's why using the correct replacement breaker is important.

Key Features and Benefits

• 50 Amp rating for protecting medium- to high-demand electrical circuits
• 2-pole common trip design disconnects both poles simultaneously for added safety
• Type C configuration for compatibility with approved electrical systems
• Plug-on installation allows for quick and efficient replacement
• HACR rated for approved heating, air conditioning, and refrigeration applications
• 10kA interrupting capacity at 120/240VAC for dependable fault protection
• Helps reduce the risk of equipment damage caused by overloads and short circuits
• Suitable for a variety of residential, commercial, and light industrial applications
• Compact footprint helps maximize panel space utilization


Technical Specifications

• Part Number: C250

• Type: C

• Amperage: 50 Amps

• Poles: 2

• Voltage Rating: 120/240VAC

• Interrupting Rating: 10kA @ 120/240VAC

• Trip Configuration: Common Trip

• Mounting Style: Plug-On

• HACR Rated: Yes

• Dimensions:
  • Width: 2.00 in.
  • Height: 2.88 in.
  • Depth: 2.56 in.
• Dimensions: 2.00"W x 2.88"H x 2.56"D

• Approximate Shipping Weight: 1.10 lbs.


Material Compliance and Certifications

• HACR rated for approved HVAC and refrigeration applications
• Designed to provide overcurrent and short-circuit protection
• Manufactured for use in compatible Type C electrical distribution equipment


Where It Works Best

• The C250 is an excellent fit for electrical systems that require a 50 Amp, 2-pole circuit breaker for dedicated equipment or branch circuit protection. Common applications include air conditioners, heat pumps, refrigeration equipment, electric water heaters, pumps, compressors, workshop equipment, and other 120/240VAC loads.
