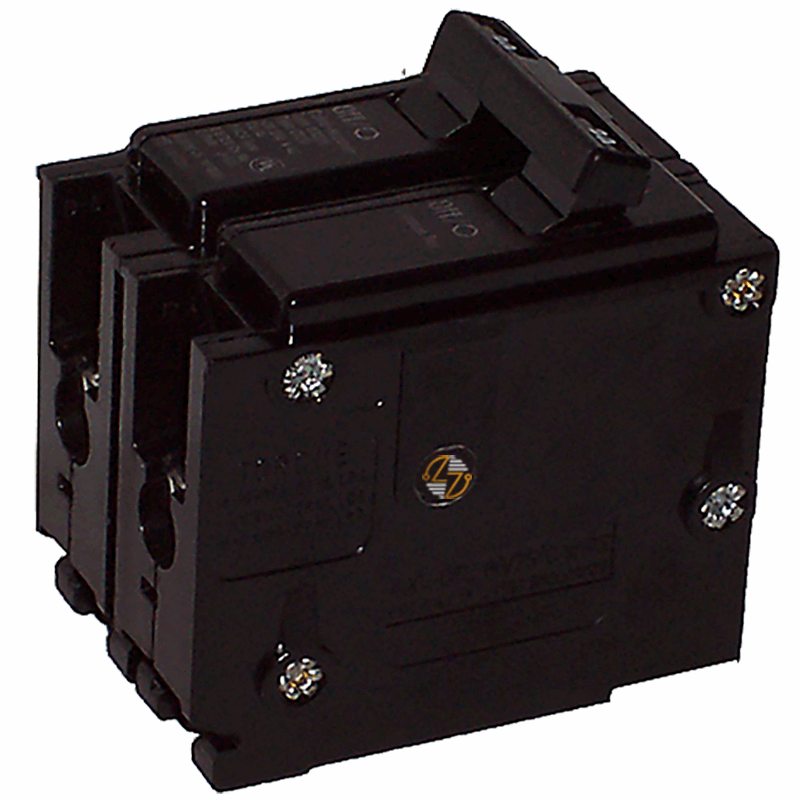

C225 - 25Amp Circuit Breaker

C225 - 25Amp Circuit Breaker

Need dependable protection for a 120/240-volt electrical system? The C225 circuit breaker is designed to help keep electrical equipment and branch circuits protected from overloads and short circuits while maintaining the performance expected in everyday residential and commercial applications. Rated at 25 amps with a 2-pole common trip design, this breaker disconnects both poles simultaneously when a fault occurs, helping you protect connected equipment and supporting safe system operation.

If you're replacing an existing breaker, matching the correct type is just as important as matching the amp rating.

Its HACR rating makes it suitable for approved heating, air conditioning, and refrigeration applications, but that's only part of the story. Breakers like the C225 are also commonly used on dedicated appliance circuits, pumps, compressors, air handlers, utility equipment, and other 120/240VAC loads that require a 25 Amp, 2-pole breaker. Most of the time, a breaker quietly does its job in the background. When an overload or short circuit occurs, though, it's expected to respond immediately. That's exactly what the C225 is designed to do.

Key Features and Benefits

• 25 Amp circuit breaker for branch circuit protection
• Two-pole configuration for 120/240VAC applications
• Common trip design disconnects both poles simultaneously during fault conditions
• Type C breaker compatible with approved electrical distribution equipment
• Plug-on mounting for straightforward installation in compatible panels
• HACR rated for approved heating, air conditioning, and refrigeration applications
• 10kA interrupting capacity at 120/240VAC
• Helps protect electrical systems from overloads and short circuits
• Suitable for residential, commercial, and light industrial environments
• Compact design simplifies replacement and maintenance projects


Technical Specifications

• Part Number: C225

• Type: C

• Amperage Rating: 25 Amps

• Poles: 2

• Voltage Rating: 120/240VAC

• Interrupting Capacity: 10kA @ 120/240VAC

• Trip Type: Common Trip

• Mounting Style: Plug-On

• HACR Rated: Yes

• Dimensions:
  • Width: 2.00 in.
  • Height: 2.88 in.
  • Depth: 2.56 in.
• Dimensions: 2.00"W × 2.88"H × 2.56"D

• Approximate Shipping Weight: 1.10 lbs.


Material Compliance and Certifications

• HACR rated for approved HVAC and refrigeration applications
• Designed for use in compatible electrical distribution systems
• Provides overcurrent and short-circuit protection for connected circuits
• Manufactured to applicable industry standards for circuit protection equipment
• Installation should be performed in accordance with applicable electrical codes and equipment requirements
• Compatibility with existing panels and equipment should be verified before installation


Where It Works Best

• The C225 is frequently used to protect dedicated 240-volt circuits serving HVAC equipment, refrigeration systems, air handlers, condensers, pumps, compressors, and other electrical loads requiring a 25 Amp, 2-pole breaker. It is also commonly installed in residential service panels, commercial electrical systems, workshops, maintenance facilities, and light industrial applications where dependable circuit protection and common trip operation are required.
