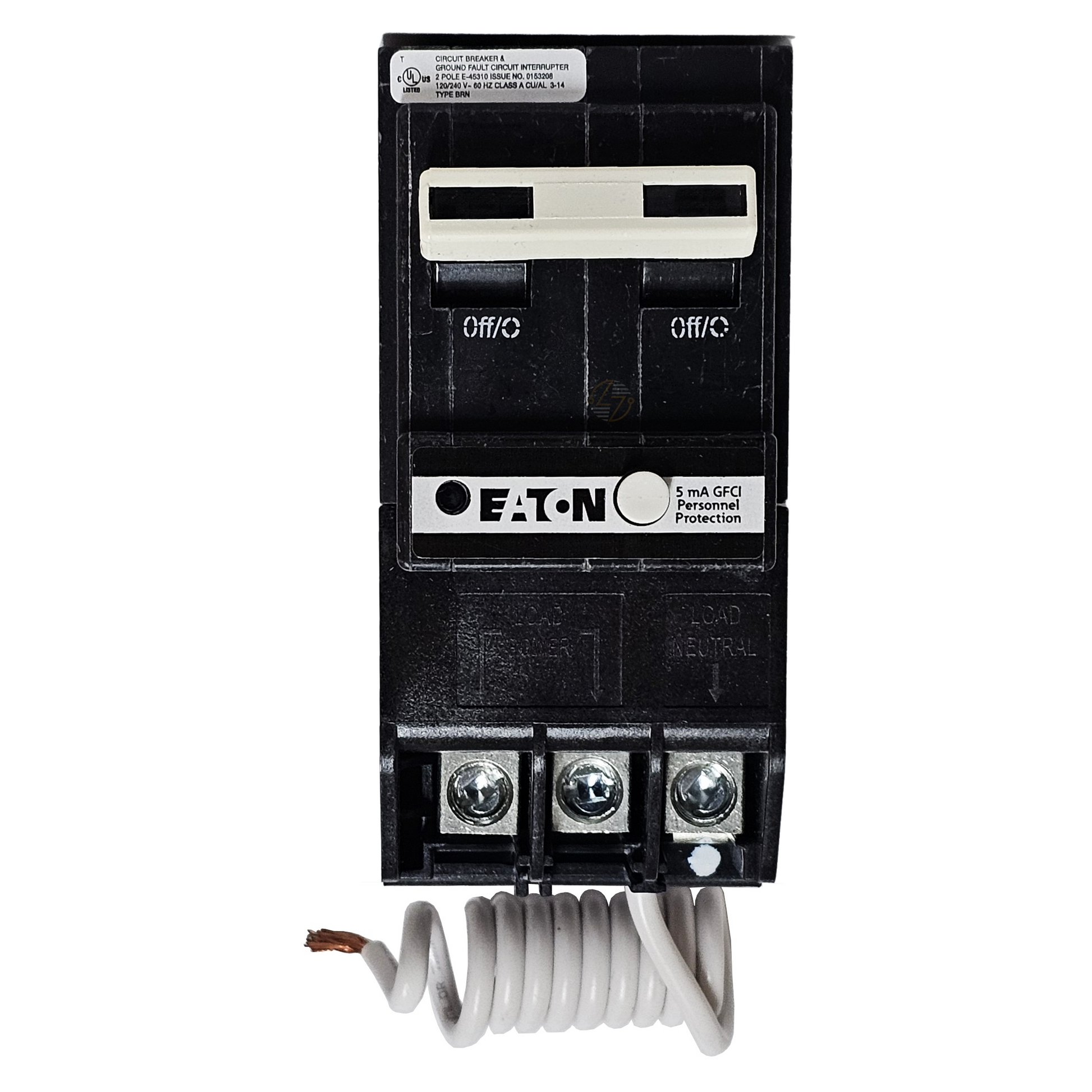

BRN235GF - 35A GFCI (5mA) Circuit Breaker

BRN235GF - 35A GFCI (5mA) Circuit Breaker

The BRN235GF 35 amp 2-pole GFCI circuit breaker is the kind of component you install when you don’t want to take chances with electrical safety. It’s built to detect ground faults quickly—tripping at just 5mA—so if something goes off track, power is cut before it becomes a real hazard. This breaker pulls double duty. It handles standard overload and short circuit protection, while also providing built-in GFCI protection for people. That means no extra devices to wire in and fewer things to troubleshoot later. For many installs, that alone makes it a more practical option. With a 35 amp rating and support for 120/240V systems, it fits comfortably into a range of residential and light commercial applications. The 10kA interrupt rating gives it the ability to deal with higher fault currents when needed, without overcomplicating the setup. It’s not flashy—and it doesn’t need to be. It just works the way it’s supposed to, which is exactly what you want from a breaker like this.

Key Features and Benefits

• Trips at 5mA for added protection against electrical shock
• 2-pole configuration for 120/240V circuits
• 35 amp rating for everyday applications
• 10kA interrupt capacity to safely handle faults
• Combines breaker and GFCI protection in one unit
• Helps reduce extra wiring and components
• Straightforward, reliable performance

Technical Specifications

• Part Number: BRN235GF

• Poles: 2

• Amperage: 35A

• Voltage Rating: 120/240VAC

• Interrupt Rating: 10kA

• Frame Type: GFCB

• Type: GFTCB (GFCI Circuit Breaker)

• Dimensions:
  • Height: 4.25"
  • Width: 2.0"
  • Depth: 3.0"
• Ground Fault Trip Level: 5mA


Material Compliance and Certifications

• UL Requirements: This breaker meets standard UL requirements for ground fault circuit interrupters and is built with materials intended for consistent, dependable operation under normal electrical conditions.


Where It Works Best

• Kitchens and bathrooms
• Garages and basements
• Outdoor outlets or equipment
• Laundry areas
• Light commercial spaces
