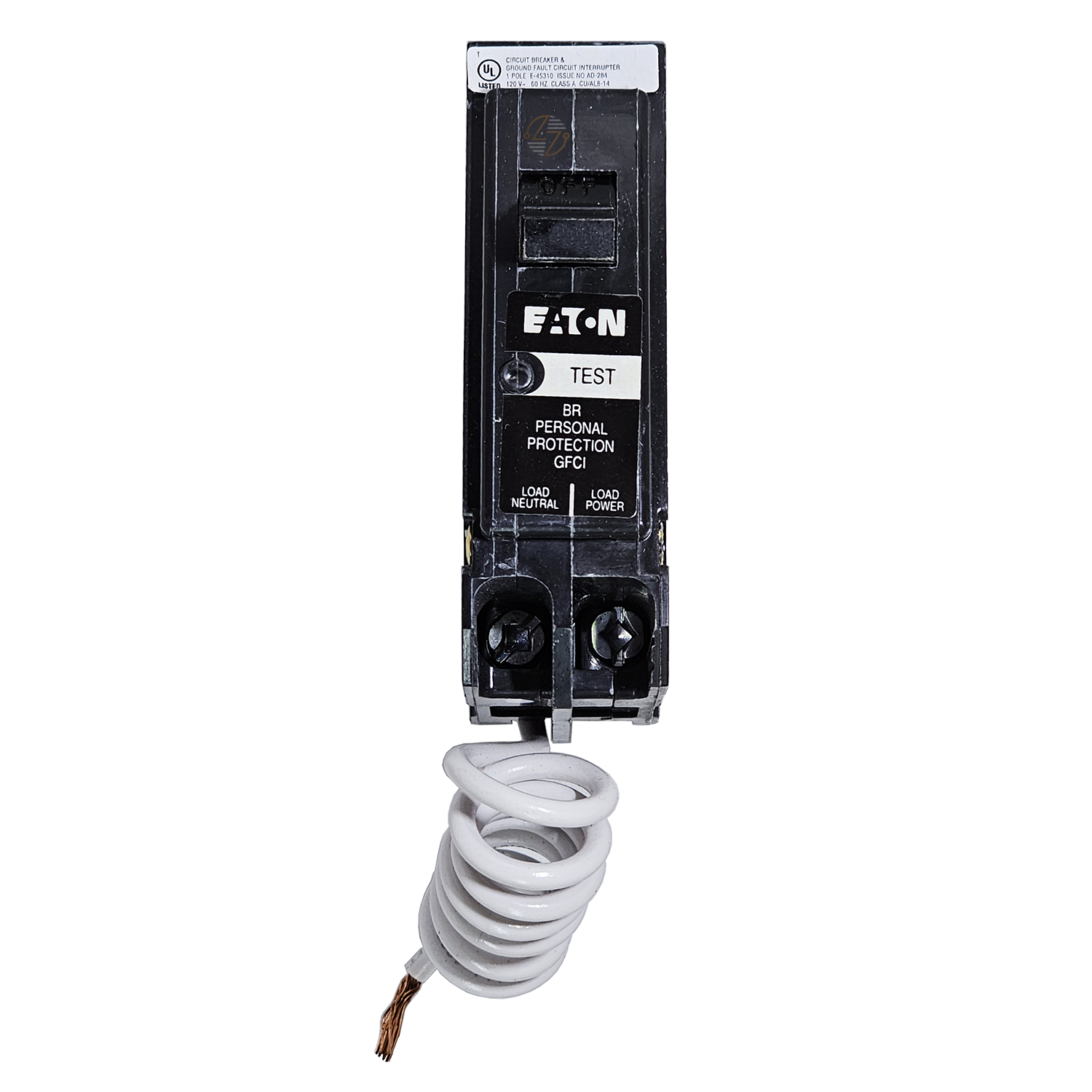

BRN130GF - 30A GFCI (5mA) Circuit Breaker

BRN130GF - 30A GFCI (5mA) Circuit Breaker

If you’re working on a circuit where safety isn’t optional, the BRN130GF 30 Amp GFCI circuit breaker is built for exactly that job. It’s designed to protect people—not just equipment—by shutting off power the moment it senses a ground fault. That kind of quick response can make all the difference in areas where moisture or direct contact with electricity is a real concern. This breaker uses 5mA ground fault sensitivity, which is the standard level for personnel protection. In simple terms, it reacts fast enough to help prevent serious electrical shock. The compact, single-pole design makes it easy to fit into most panels without taking up extra space, while the 10k A.I.C. rating gives you the confidence that it can handle fault conditions without hesitation. Whether you’re replacing an existing breaker or upgrading a panel to meet code, this is a straightforward, dependable option that does exactly what it’s supposed to—protect people and keep your system running safely.

Key Features and Benefits

• Built-in GFCI protection (5mA) for personal safety
• 30 Amp, single-pole design for standard branch circuits
• Trips quickly when ground faults are detected
• 10kA interrupting rating for dependable fault handling
• Helps meet electrical code requirements in wet or damp areas
• Compact size fits easily into compatible panels

Technical Specifications

• Part Number: BRN130GF
• Poles: 1
• Amperage: 30A
• Voltage: 120/240 VAC
• Interrupting Rating: 10k A.I.C.
• Frame Type: GFCB (Type GFTCB)
• GFCI Sensitivity: 5mA
• Dimensions: 3.19" H x 1.0" W x 2.5" D

Material Compliance and Certifications

• This breaker is manufactured to meet recognized electrical safety standards and is suitable for installations that require UL-listed GFCI protection. It’s built with compliance in mind, helping electricians and contractors stay aligned with current safety codes.

Where It Works Best

• Kitchens and bathrooms
• Outdoor outlets and circuits
• Garages and utility spaces
• Basements or damp environments
• Light commercial applications needing personnel protection
