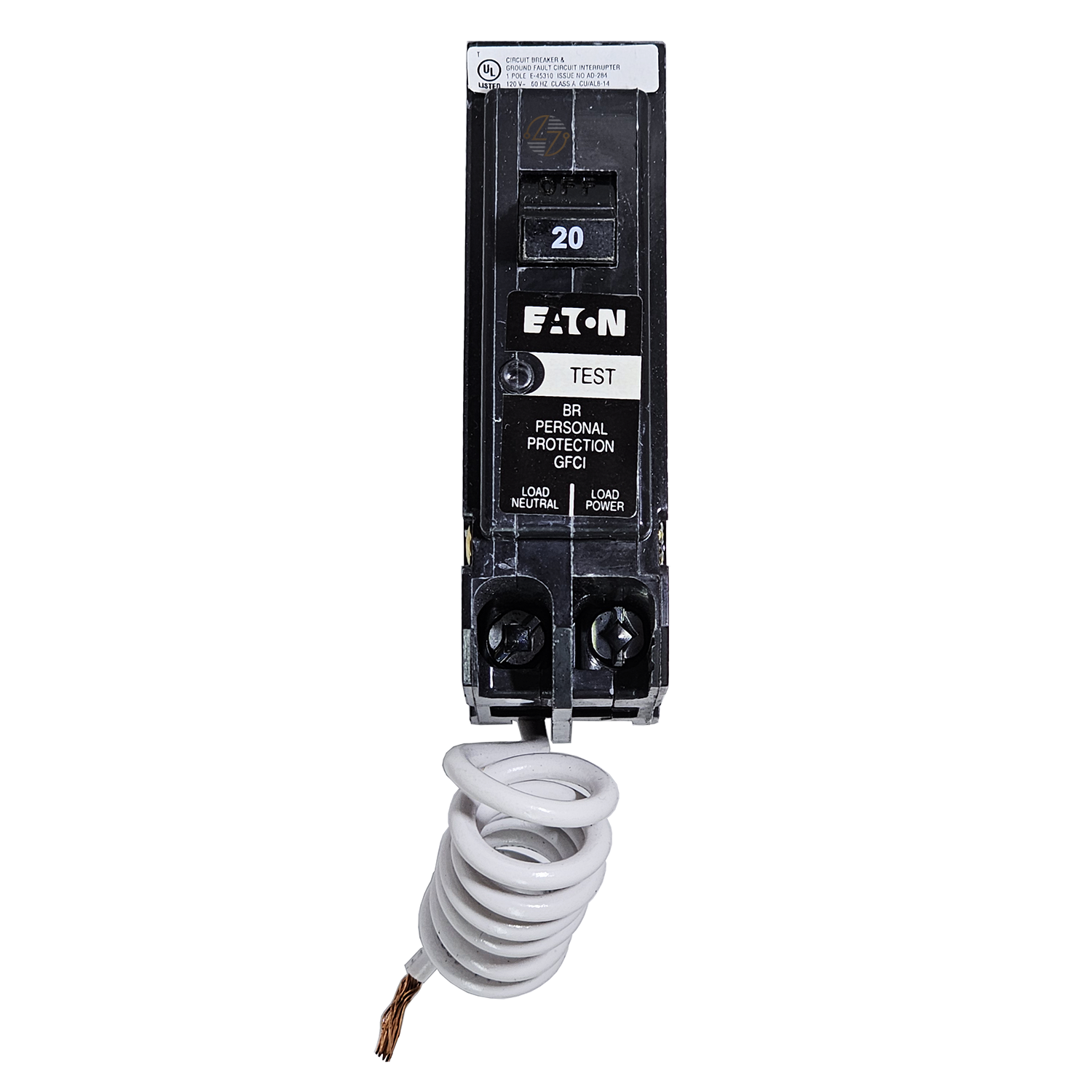

BRN120GF - 20A GFCI (5mA) Circuit Breaker

BRN120GF - 20A GFCI (5mA) Circuit Breaker

The Eaton BRN120GF is a 20 Amp single-pole GFCI circuit breaker designed for circuits where ground-fault protection is required. Installed in compatible Eaton Type BR loadcenters and panelboards, this breaker combines standard overload and short-circuit protection with built-in Ground Fault Circuit Interrupter (GFCI) technology, helping you protect people from electrical shock in areas where moisture may be present.

Many of the circuits found in kitchens, bathrooms, garages, laundry rooms, unfinished basements, workshops, and outdoor spaces require GFCI protection under modern electrical codes. Instead of adding separate protective devices elsewhere in the circuit, the BRN120GF provides that protection directly at the panel. Its 5 mA ground-fault protection continuously monitors the circuit and trips when a ground-fault condition is detected.

The breaker's plug-on design allows for installation in compatible Type BR panels, making it a common choice for your panel upgrades, breaker replacements, remodeling projects, and new construction. The trip-to-center feature and GFI indicator also make it easier to identify a tripped breaker during troubleshooting.

Key Features and Benefits

• 20 Amp single-pole GFCI circuit breaker
• Built-in Ground Fault Circuit Interrupter (GFCI) protection
• 5 mA ground-fault protection level
• Provides overload and short-circuit protection
• Compatible with Eaton Type BR loadcenters and panelboards
• Plug-on mounting design
• Trip-to-center indication for easier identification of tripped conditions
• GFI status indicator
• 10kAIC interrupting rating
• Commonly used where GFCI protection is required by electrical code
• Suitable for breaker replacements, panel upgrades, remodeling projects, and new construction


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BRN120GF

• Product Type: GFCI Circuit Breaker

• Breaker Family: BRN

• Amperage Rating: 20 Amps

• Voltage Rating: 120/240 Volts

• Number of Poles: Single-Pole

• Interrupt Rating: 10 kAIC

• Ground-Fault Protection: 5 mA

• Trip Type: Trip-to-Center

• Connection Type: Plug-On

• Mounting Method: Plug-On

• Wire Size: #14-8 AWG

• Dimensions:
  • Length: 4 Inches
  • Width: 3.5 Inches
  • Height: 1 Inch
• Product Weight: 0.45 lb


Material Compliance and Certifications

• Designed for ground-fault, overload, and short-circuit protection
• Manufactured for use in compatible Eaton Type BR electrical distribution equipment
• Install in accordance with applicable electrical codes and manufacturer requirements
• Certification information available from the manufacturer


Where It Works Best

• The BRN120GF is commonly installed on 20 Amp branch circuits serving kitchens, bathrooms, garages, laundry rooms, unfinished basements, utility rooms, workshops, outdoor receptacles, and other locations where ground-fault protection is required or recommended.
