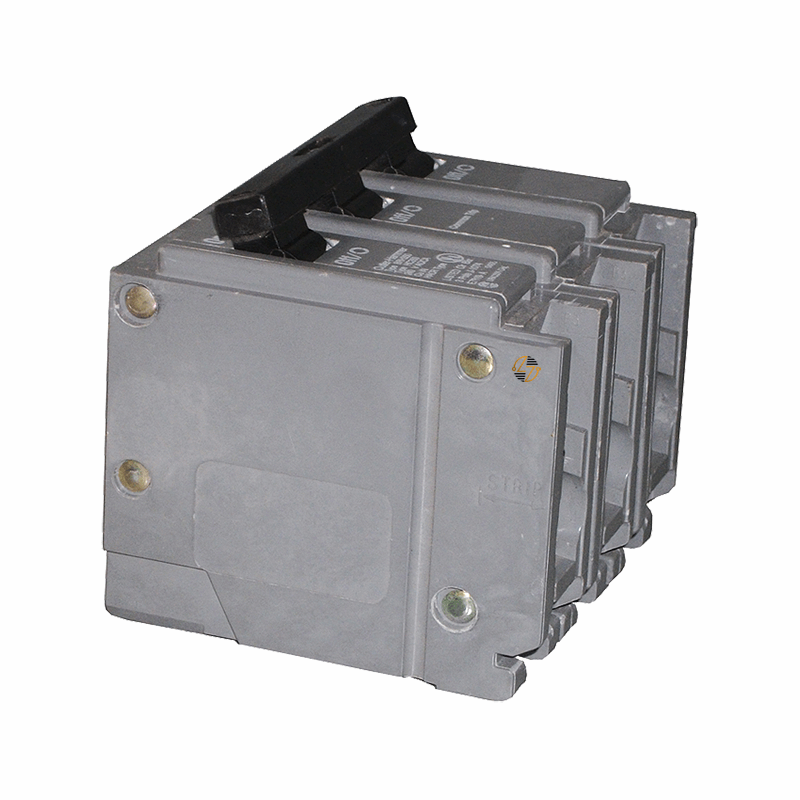

BRH390 90A Circuit Breaker

BRH390 90A Circuit Breaker

Enhance the safety and efficiency of your electrical installations with the Eaton BRH390 Thermal Magnetic Circuit Breaker. This robust three-pole breaker is designed to protect your electrical system from overloads and short circuits, ensuring reliable performance and safety. With a 90A current rating and a high 22 kAIC interrupt rating, it is perfect for residential or commercial settings requiring a durable and effective circuit protection solution.

Key Features and Benefits:

• Robust Protection: The BRH390 features a thermal magnetic mechanism, offering precise protection by combining thermal (overload) and magnetic (short circuit) protection, ensuring your circuits are safeguarded under various conditions.
• High Interrupt Capacity: With a 22 kAIC interrupt capacity, this circuit breaker can handle high fault currents, providing exceptional protection against abrupt electrical surges.
• Ease of Installation: Designed as a Type BR 1-Inch plug-on circuit breaker, it offers a straightforward installation process, making it a practical choice for quick setups and maintenance.
• Compatibility and Flexibility: Compatible with Eaton Type BR Loadcenters, this breaker supports a wide range of wiring configurations with wire size accommodation from #4-1/0 AWG Cu/Al, adding to its versatility in various applications.

Technical Specifications:

• Amperage Rating: 90 A
• Catalog Number: BRH390
• Voltage Rating: 240V
• Pole: Three-pole
• Trip Type: Common breaker trip
• Wire Size: #4-1/0 AWG Cu/Al

Material Compliance and Certifications:

• Compliance: Complies with Federal Specifications Classification W-C376, ensuring adherence to rigorous federal guidelines and standards.
• Certifications: UL 490 certified, affirming its safety and reliability in electrical protection.

Suitability:

• Ideal for residential and commercial applications where high capacity and reliability are paramount. Whether upgrading an existing system or installing a new one, the BRH390 provides a dependable solution for managing electrical loads efficiently and safely.

The Eaton BRH390 Circuit Breaker is your reliable choice for ensuring safe and efficient electrical power management in various applications, meeting the highest standards for safety and performance.
