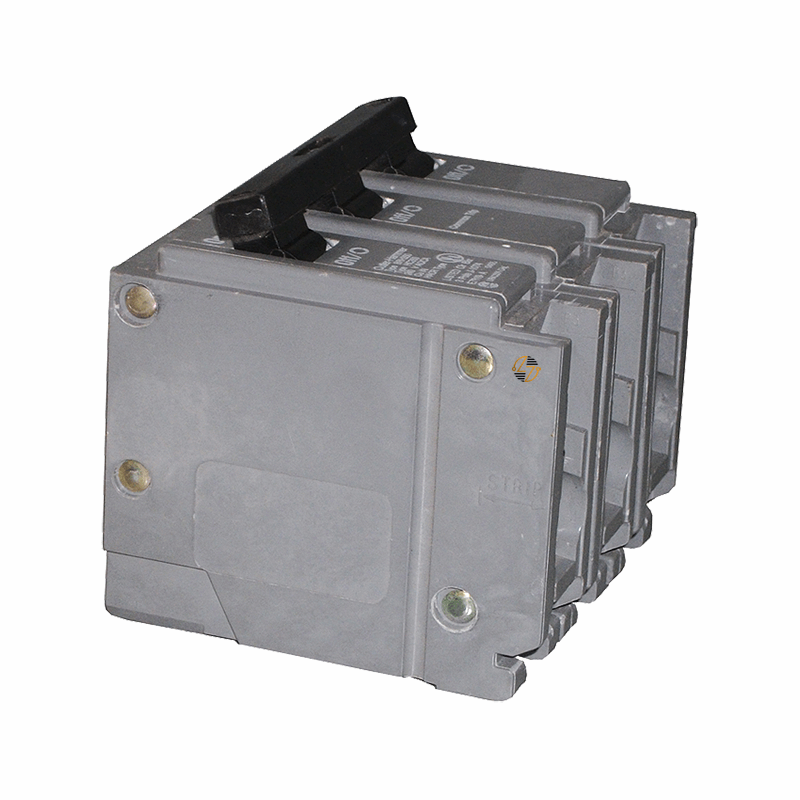

BRH360 60A Circuit Breaker

BRH360 60A Circuit Breaker

Maximize the reliability and efficiency of your electrical system with the Eaton BRH360, a top-of-the-line thermal magnetic circuit breaker designed for superior protection. Crafted with precision and catering to demanding safety standards, the BRH360 is an essential component for modern electrical systems, ensuring robust and reliable circuit protection. Whether you’re outfitting a new installation or upgrading an existing one, the BRH360 offers the performance and peace of mind you need.

Key Features and Benefits:

• Robust Trip Mechanism: The common trip type ensures that all poles trip simultaneously, providing a complete shutdown in the event of an overload or short circuit, safeguarding your electrical system.
• High Interrupting Capacity: With a 22 kAIC interrupt rating, the BRH360 efficiently handles high fault currents, offering enhanced protection against severe electrical faults.
• Flexible Installation: Designed as a Type BR 1-Inch plug-on circuit breaker, it allows for easy and quick installation into Eaton Type BR load centers, streamlining the setup process and reducing downtime.
• Wide Wire Range Compatibility: Accommodates wires from #4 to 1/0 AWG, both Cu and Al, providing versatility and reducing the need for additional adapters or modifications.

Technical Specifications:

• Amperage: 60 A
• Voltage Rating: 240V
• Pole Number: Three-pole
• Dimensions: 3 x 3 x 3 inches
• Weight: 2 lb

Material Compliance and Certifications:

• Certified Safety: UL 490 certified, ensuring compliance with stringent safety standards.
• Federal Specifications: Meets Federal Specifications Classification W-C376, guaranteeing reliability and performance.

Suitability:

• Ideal for residential and commercial power distribution systems requiring robust circuit protection. It is particularly suitable for installations where space and safety are paramount.

With its combination of advanced safety features, straightforward installation, and compliance with the latest standards, the Eaton BRH360 circuit breaker is an excellent choice for ensuring the safety and efficiency of your electrical infrastructure.
