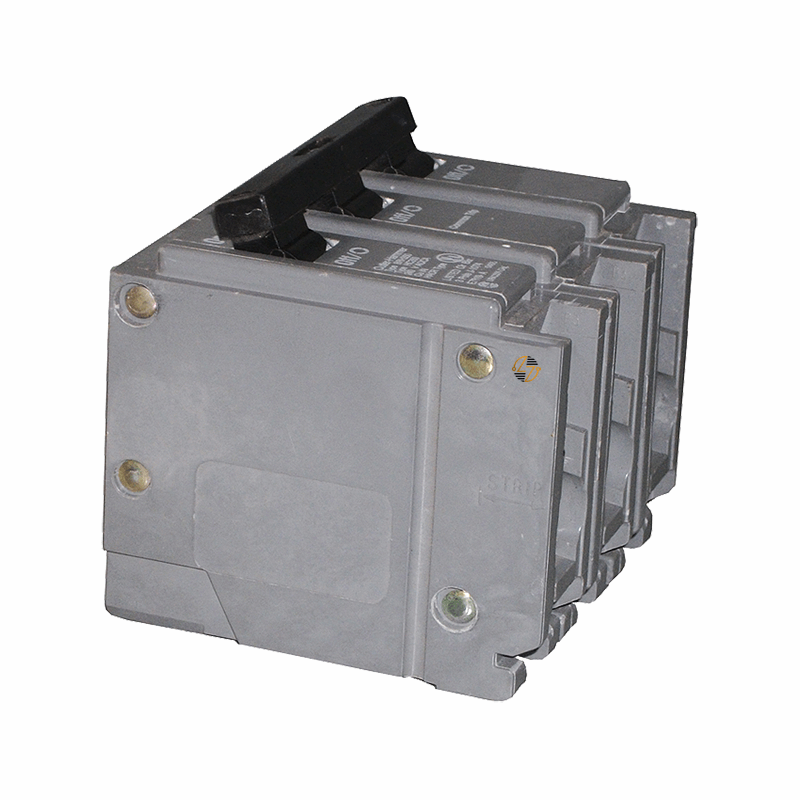

BRH315 - 15 Amp Circuit Breaker

BRH315 - 15 Amp Circuit Breaker

The BRH315 15 Amp 3-Pole Circuit Breaker is designed to provide dependable protection for your three-phase electrical systems where consistent performance and equipment safety are essential. Featuring a 15 Amp rating and a 22kA interrupting capacity at 240VAC, this BRH-series breaker helps you guard against overloads and short circuits before they can cause damage to electrical equipment or disrupt operations. Its plug-on design allows for quick installation in compatible panelboards, making it a practical choice for both new electrical projects and replacement applications.

Key Features and Benefits

• 15 Amp Current Rating: Ideal for protecting lower-amperage three-phase circuits and connected equipment.
• 3-Pole Configuration: Designed for use in three-phase electrical distribution systems.
• 22kAIC at 240VAC: High interrupting capacity helps protect equipment during fault conditions.
• Plug-On Mounting Design: Simplifies installation and maintenance in compatible panelboards.
• HACR Rated: Suitable for heating, air conditioning, and refrigeration applications.
• Reliable Overcurrent Protection: Helps reduce the risk of damage caused by overloads and short circuits.
• Compact Construction: Efficient use of panel space while maintaining accessibility for service and maintenance.


Technical Specifications

• Part Number: BRH315

• Type: BRH

• Amperage Rating: 15 Amps

• Poles: 3

• Voltage Rating: 240VAC

• Interrupting Capacity: 22kAIC @ 240VAC

• Mounting Style: Plug-On

• HACR Rated: Yes

• Dimensions:
  • Width: 3.00 in
  • Height: 2.88 in
  • Depth: 2.56 in
• Dimensions: 3.00"W x 2.88"L x 2.56"D

• Approximate Ship Weight: 1.90 lbs


Material Compliance and Certifications

• HACR (Heating, Air Conditioning, and Refrigeration) Rated: HACR (Heating, Air Conditioning, and Refrigeration) Rated.
• Overcurrent Protection: Manufactured for use in electrical distribution systems requiring dependable overcurrent protection.
• Industry Standards: Designed to meet applicable industry performance standards for molded case circuit breakers.


Where It Works Best

• The BRH315 is commonly used in commercial facilities, industrial environments, HVAC systems, refrigeration equipment, motor control circuits, and electrical distribution panels requiring a 15 Amp 3-pole circuit breaker. Its combination of a compact footprint, plug-on installation, HACR rating, and 22kAIC fault protection makes it a strong choice for applications where reliable circuit protection and long-term electrical system performance are important.
