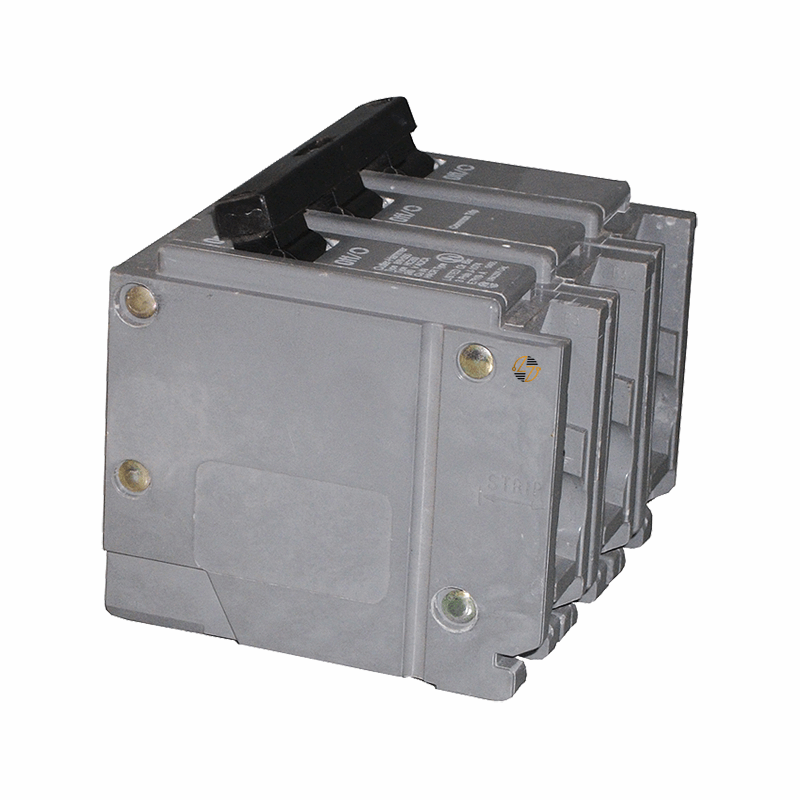

BRH3100 100A Circuit Breaker

BRH3100 100A Circuit Breaker

The Eaton BRH3100 is a top-tier, three-pole thermal magnetic circuit breaker designed for robust and efficient performance. Engineered for use with Type BR Loadcenters, this 100 amp breaker ensures safe and reliable circuit protection with a high interrupt rating of 22 kAIC, suitable for residential and commercial applications. With its compact 1-inch plug-on design, the BRH3100 is easy to install and compatible with #4-1/0 AWG Cu/Al wires, making it a versatile choice for numerous electrical setups.

Key Features and Benefits:

• High Current Handling: Rated at 100 A, capable of managing high power demands.
• Enhanced Safety: Features a common trip type for simultaneous tripping of all poles, adding an extra layer of safety.
• Robust Interrupt Rating: 22 kAIC interrupt capacity provides excellent protection against sudden surges and electrical faults.
• Easy Installation: Plug-on design ensures a straightforward installation without the need for complex tools or extensive modifications.
• Wide Wire Compatibility: Accepts a range of wire sizes from #4 to 1/0 AWG, supporting both copper and aluminum wires, which enhances its adaptability in different installations.

Technical Specifications:

• Voltage Rating: 240 V
• Pole Configuration: Three-pole
• Circuit Breaker Type: BR
• Dimensions: 3 x 3 x 3 inches
• Weight: 1 lb
• Certifications: UL 490

Material Compliance and Certifications:

• Compliance: The BRH3100 meets rigorous federal specifications (Classification W-C376) and is certified under UL 490, ensuring it meets high safety and performance standards.

Suitability:

• Ideal for residential, commercial, and industrial environments where reliable circuit protection is crucial. This breaker is particularly suited for high-demand electrical systems that require a robust, secure, and easy-to-maintain circuit protection solution.

Experience the reliability and safety of the Eaton BRH3100, your dependable choice for advanced circuit protection.
