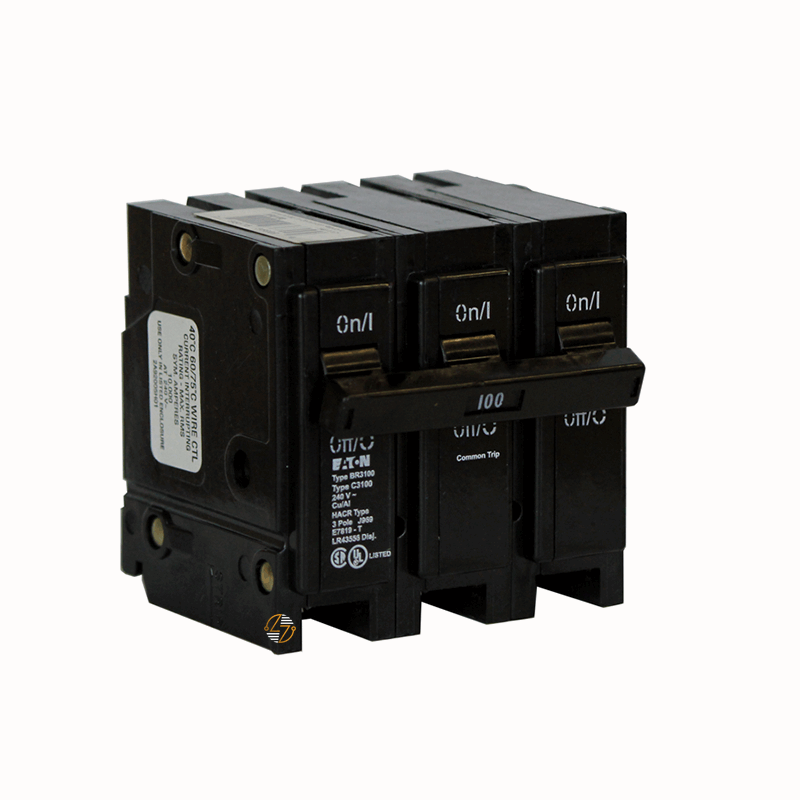

BR3100 - 100Amp Circuit Breaker

BR3100 - 100Amp Circuit Breaker

The Eaton BR3100 is a robust and reliable thermal magnetic circuit breaker designed for residential and light commercial applications. This three-pole, plug-on circuit breaker is compatible with Eaton Type BR Loadcenters and offers a substantial 100 amp current capacity. It is engineered to provide protection by interrupting electrical flows in the event of an overload or short circuit, ensuring safety and efficiency in power distribution systems.

Key Features and Benefits:

• High Current Rating: With a 100 ampere capacity, the BR3100 is capable of handling high-demand electrical applications, making it ideal for comprehensive residential or commercial use.
• Three-Pole Protection: Offers a tri-phase protection system that interrupts circuit faults in both line and load sides, providing enhanced safety.
• Thermal Magnetic Trip Mechanism: Ensures reliable performance and protection by combining thermal properties for overload protection and magnetic force to handle short circuits.
• Easy Installation: The 1-inch plug-on design facilitates quick and straightforward installation, reducing downtime and simplifying maintenance.

Technical Specifications:

• Amperage: 100 A
• Voltage Rating: 120/240 V
• Interrupt Rating: 10 kAIC
• Wire Size: #1 AWG Cu/Al
• Dimensions: 3 x 2.9 x 2.5 inches
• Weight: 1.1 lb

Material Compliance and Certifications:

• Compliance: Compliant with Federal Specifications Classification W-C375 for assured quality and reliability.
• Certified: Certified under UL 489 standard, which validates its safety and suitability for electrical circuit protection.

Suitability:

• The BR3100 circuit breaker is designed for residential buildings requiring substantial power distribution and protection. It is also suitable for light commercial environments where reliable circuit protection is a critical need.

Eaton’s BR3100 circuit breaker is a high-performance solution tailored for modern electrical safety requirements. Its combination of powerful features and robust compliance with safety standards makes it an essential component for any residential or commercial electrical system.
