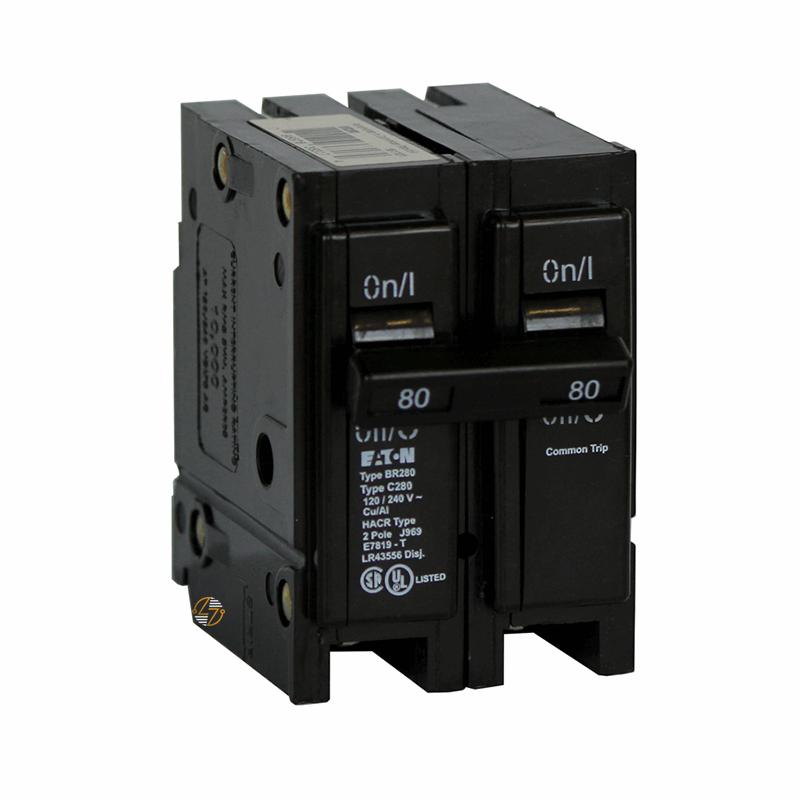

BR280 - 80 Amp Circuit Breaker

BR280 - 80 Amp Circuit Breaker

When your electrical system requires reliable protection for larger 240-volt circuits, the Eaton BR280 delivers the performance and dependability professionals expect from the Eaton Type BR product line. This 80 Amp, 2-pole circuit breaker is designed to safeguard electrical equipment and wiring from overloads and short circuits while providing the consistent operation needed for demanding residential and light commercial applications.

Whether you're powering a subpanel, HVAC system, electric water heater, air compressor, irrigation equipment, or other high-current loads, the BR280 helps keep your electrical distribution system protected and operating safely. Its thermal-magnetic trip mechanism responds to both prolonged overload conditions and sudden fault currents, while the common-trip design disconnects both poles simultaneously for added protection on 240-volt circuits.

Key Features and Benefits

• Provides 80 Amp overcurrent protection for high-demand electrical circuits
• Two-pole configuration designed for 120/240V applications
• Thermal-magnetic trip technology helps protect against overloads and short circuits
• Common-trip operation disconnects both poles simultaneously during fault conditions
• Plug-on mounting simplifies installation in compatible Eaton Type BR loadcenters
• Accepts #8–1/0 AWG copper or aluminum conductors
• 10 kAIC interrupting capacity for dependable fault protection
• Ideal for panel upgrades, replacement applications, and new electrical installations
• Manufactured by Eaton, a recognized leader in power distribution and circuit protection


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BR280

• UPC: 786676363174

• Product Type: Thermal Magnetic Circuit Breaker

• Series: Type BR

• Amperage Rating: 80A

• Voltage Rating: 120/240V AC

• Number of Poles: 2

• Trip Type: Common Trip

• Mounting Method: Plug-On

• Interrupt Rating: 10 kAIC

• Wire Size Compatibility: #8–1/0 AWG Copper/Aluminum

• Compatible Loadcenters: Eaton Type BR

• Dimensions:
  • Depth: 1.9 in.
  • Width: 2.9 in.
  • Height: 2.5 in.
• Weight: 0.6 lb


Material Compliance and Certifications

• UL 489 Listed
• Federal Specifications Classification W-C375
• Manufactured to Eaton Type BR performance standards


Where It Works Best

• The Eaton BR280 is well-suited for residential, multifamily, commercial, and light industrial electrical systems that require an 80 Amp two-pole breaker. Common applications include HVAC equipment, heat pumps, electric water heaters, subpanels, workshop machinery, irrigation systems, pumps, compressors, and other large 240-volt loads. It is also an excellent replacement breaker for existing Eaton Type BR panels where maintaining proper panel compatibility is essential.
