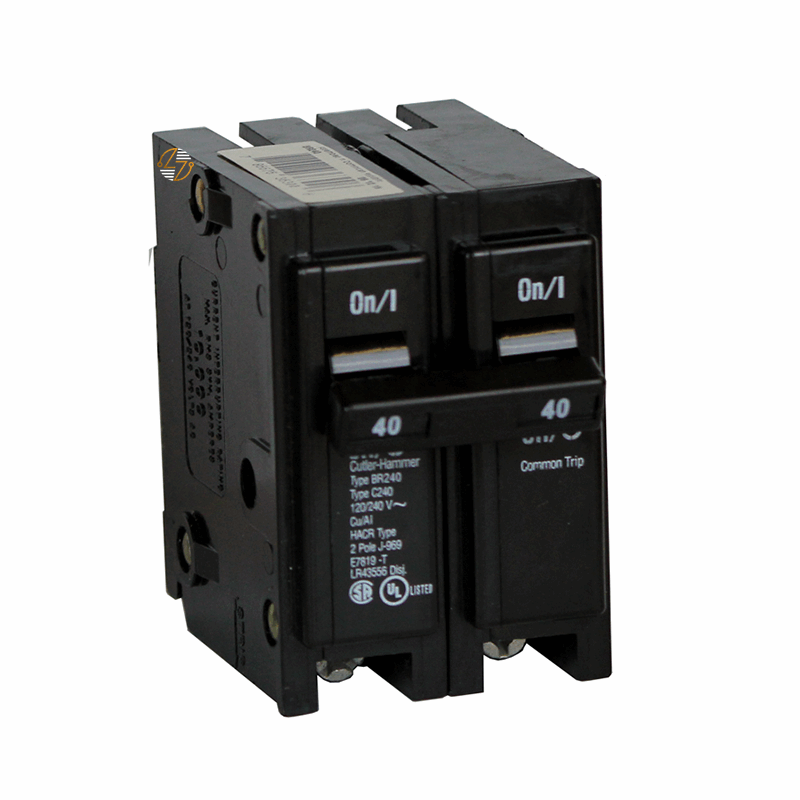

BR240 - 40 Amp Circuit Breaker

BR240 - 40 Amp Circuit Breaker

The Eaton BR240 is a 40 Amp, two-pole circuit breaker for Eaton Type BR loadcenters. It is commonly used on 120/240V circuits serving air conditioners, heat pumps, electric ranges, water heaters, compressors, and other equipment that requires a 40 Amp two-pole breaker.

You'll find this breaker in residential panels, apartment buildings, workshops, retail spaces, offices, and light commercial properties. Common applications include HVAC equipment, electric heating systems, water heaters, pumps, compressors, and other dedicated 240-volt loads.

Many BR240 breakers remain in service for years in properly maintained electrical systems, which is one reason Eaton's Type BR line continues to be widely used in existing installations.

Key Features and Benefits

• 40 Amp circuit breaker
• Two-pole configuration
• Common-trip operation
• Thermal-magnetic trip mechanism
• Type BR plug-on mounting
• Compatible with Eaton Type BR loadcenters
• Rated for 120/240V AC applications
• 10 kAIC interrupting capacity
• Accepts #14–4 AWG copper or aluminum conductors
• Suitable for branch circuit protection and replacement applications


Technical Specifications

• Manufacturer: Eaton

• Catalog Number: BR240

• UPC: 786676363006

• Product Type: Thermal Magnetic Circuit Breaker

• Series: Type BR

• Amperage Rating: 40A

• Voltage Rating: 120/240V AC

• Number of Poles: 2

• Trip Type: Common Trip

• Circuit Breaker Type: BR

• Mounting Method: Plug-On

• Interrupt Rating: 10 kAIC

• Wire Size Compatibility: #14–4 AWG Copper/Aluminum

• Used With: Type BR Loadcenters

• Dimensions:
  • Depth: 1.9 in.
  • Width: 2.9 in.
  • Height: 2.5 in.
• Weight: 0.55 lb


Material Compliance and Certifications

• UL 489 Listed
• Federal Specifications Classification W-C375
• Manufactured to Eaton Type BR specifications
• Intended for use in compatible Eaton Type BR loadcenters


Where It Works Best

• The BR240 is commonly used in Eaton Type BR panels installed in homes, apartments, condominiums, garages, workshops, offices, retail spaces, and light commercial facilities. Typical applications include air conditioning systems, heat pumps, electric ranges, water heaters, compressors, pumps, electric heating equipment, dedicated 240-volt circuits, and other electrical loads requiring a 40 Amp two-pole breaker. It is also frequently used during panel maintenance, circuit additions, and breaker replacement projects where an Eaton Type BR breaker is required.
