BR120CAF - 20Amp Circuit Breaker

BR120CAF - 20 Amp Circuit Breaker

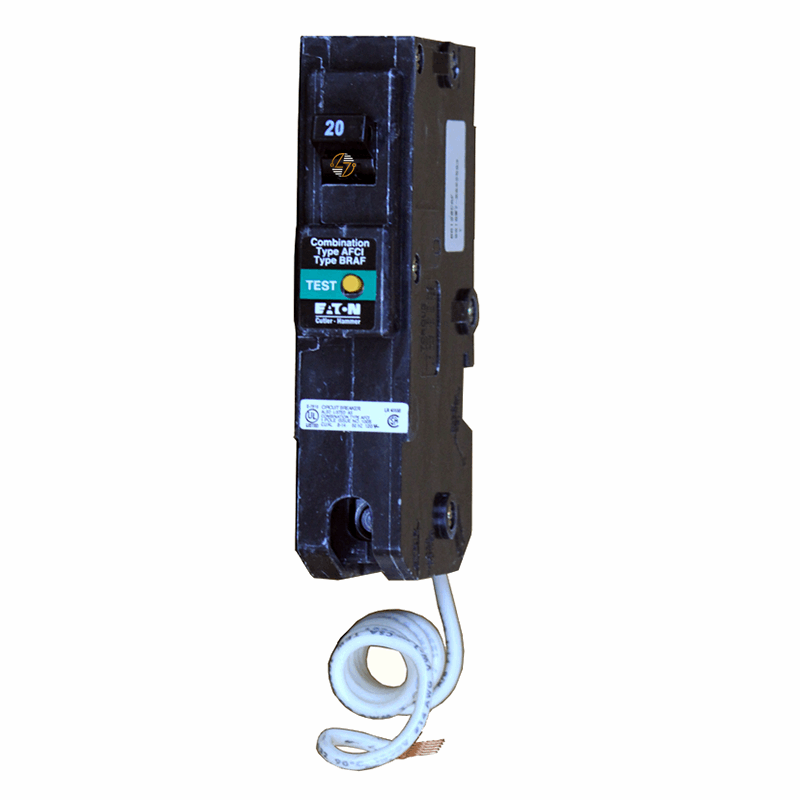

The BR120CAF circuit breaker is a 20-amp, single-pole plug-on breaker designed to provide branch circuit protection in 120VAC electrical systems. Built on the BRAF frame platform, this HACR-rated breaker features Combination Type Arc Fault Circuit Interruption (CAFCI) to help detect and mitigate potentially dangerous arc faults in residential and light commercial applications. With a 10kA A.I.C. rating at 120VAC, the BR120CAF is engineered for proper form, fit, and function in compatible load centers requiring this specific configuration. Designed for dependable operation and long service life, this breaker is built to last while helping maintain electrical system safety and code compliance.

Key Features and Benefits

• 20 Amp, Single-Pole Protection – Designed for 120VAC branch circuits requiring 20A overcurrent protection.
• Combination Type Arc Fault Circuit Interruption (CAFCI) – Detects both parallel and series arc faults to reduce fire risk caused by damaged wiring or loose connections.
• 10kA A.I.C. Rating @ 120VAC – Suitable for systems with available fault currents up to 10,000 amps.
• Plug-On Design – Allows straightforward installation in compatible BRAF frame load centers.
• HACR Rated – Approved for use with heating, air conditioning, and refrigeration equipment applications where permitted.
• Built to Last – Manufactured for durability and consistent mechanical operation over time.
• Form, Fit, and Functional Replacement – Designed to match the original breaker specifications for seamless compatibility in appropriate panels.

Technical Specifications

• Part Number: BR120CAF
• Amperage: 20 Amps
• Poles: 1
• Voltage Rating: 120VAC
• Interrupting Capacity (A.I.C.): 10kA @ 120VAC
• Frame Type: BRAF
• Breaker Type: Plug-On, Combination Type Arc Fault
• HACR Rated: Yes
• Ship Weight: 1.0 lb
• Height: 4.56 inches

Material Compliance and Certifications

• Industry Standards: The BR120CAF circuit breaker is manufactured to meet applicable industry standards for molded case circuit breakers and arc fault protection devices.
• UL Requirements: Combination-type AFCI breakers are typically designed to comply with UL requirements for arc fault circuit interruption and branch circuit protection.
• HACR Rating: HACR rating confirms suitability for HVAC-related applications where permitted by code. Always verify local electrical codes and panel compatibility prior to installation.

Where It Works Best

• The BR120CAF is ideal for residential and light commercial branch circuits requiring 20 amp, 120VAC protection with combination arc fault functionality. It is commonly used in bedrooms, living areas, and other spaces where AFCI protection is required by the National Electrical Code (NEC). This breaker is intended for installation in compatible BRAF frame load centers and is well-suited for maintenance, repair, or direct replacement projects where matching specifications are essential.
