BR120 20A Circuit Breaker

BR120 20A Circuit Breaker

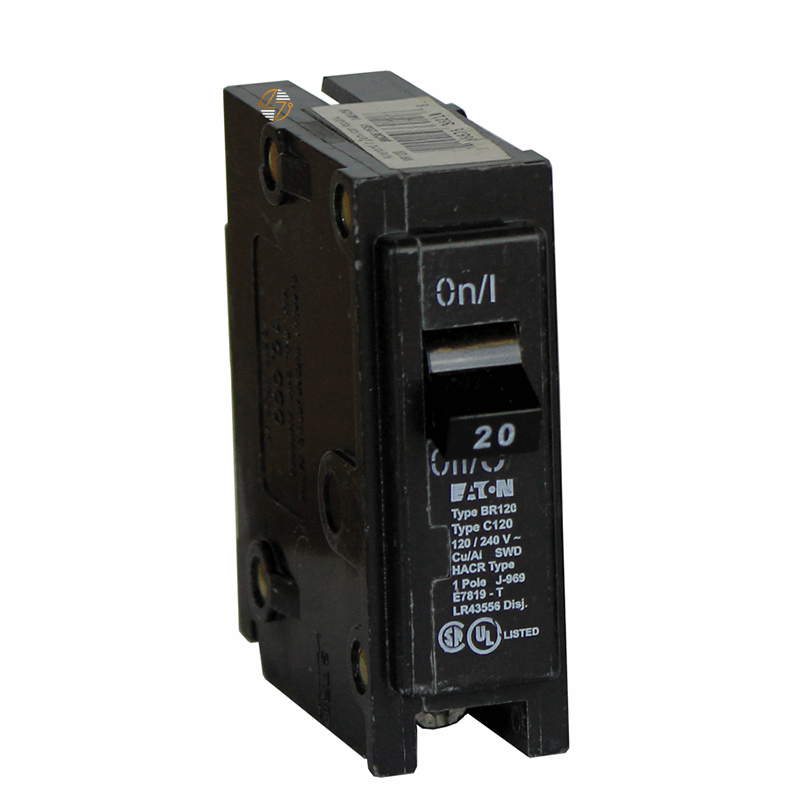

Secure your electrical systems with the Eaton BR120 Circuit Breaker, a pinnacle of reliability and safety in electrical circuit protection. The BR120 model is a thermal magnetic, single-pole circuit breaker, meticulously engineered to deliver dependable performance with a 20A current rating and a substantial 10 kAIC interrupt rating. This breaker is designed for use with BR Type Loadcenters and can handle wire sizes from #14-4 AWG, accommodating both copper and aluminum wires.

Key Features and Benefits:

• Enhanced Safety: Thermal magnetic trip mechanism ensures reliable disconnection in the event of overloads and short circuits, protecting wiring and preventing electrical fires.
• Easy Installation: The 1-Inch plug-on design facilitates quick and straightforward installation, making setup or replacements efficient without the need for extensive rewiring.
• Compact Design: With a modest footprint of 2.5" x 3" x 1" and a light weight of 0.3 lb, it fits seamlessly into your electrical panel without taking up excessive space.
• Robust Construction: Built to last with a sturdy case and a design that resists common electrical hazards.

Technical Specifications:

• Amperage Rating: 20 A
• Voltage Rating: 120/240 V
• Interrupt Rating: 10 kAIC
• Mounting Method: Plug-on
• Number of Poles: Single-pole
• Wire Size: #14-4 AWG Cu/Al

Material Compliance and Certifications:

• This product meets strict federal specifications (W-C375) and is UL 489 certified, affirming its quality and compliance with safety standards.

Suitability:

• Ideal for residential applications with its limited lifetime warranty and commercial applications supported by a 1-year warranty. The BR120 circuit breaker is a trusted choice for protecting electrical circuits in a variety of settings.

The Eaton BR120 Circuit Breaker is more than just a component; it's a vital part of your electrical system, designed to offer protection and peace of mind with its reliable performance and safety features. Ensure your systems remain secure and compliant with this high-quality breaker.
