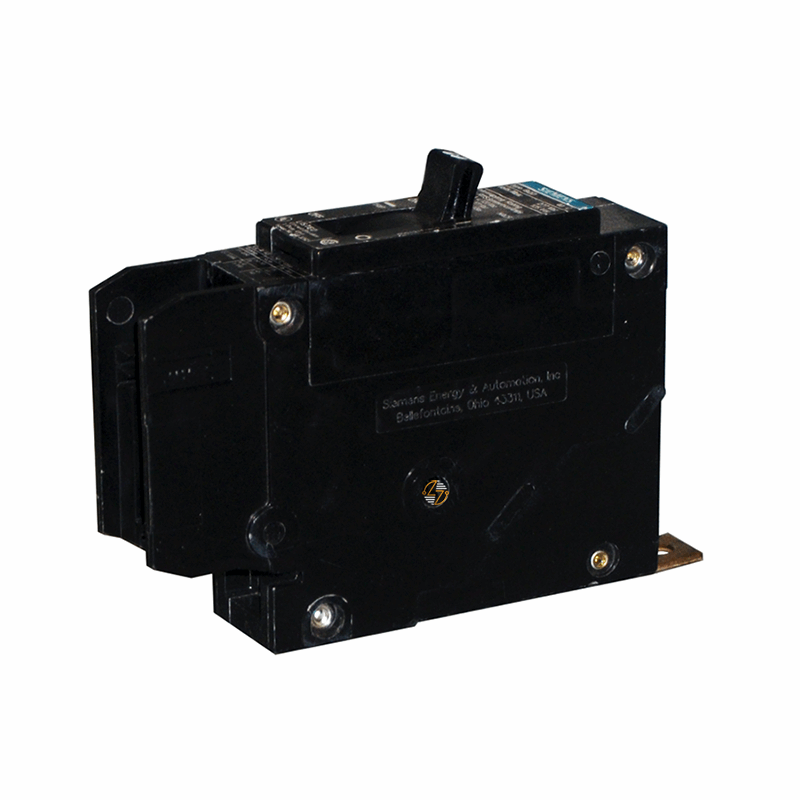

BQD150 - 50Amp Circuit Breaker

BQD150 - 50Amp Circuit Breaker

The Siemens BQD150 is a 50-amp, single-pole breaker that protects circuits from overloads and short circuits. It fits neatly in panelboards and works in tight spaces. The thermal magnetic trip responds to both slow overloads and sudden faults, keeping your wiring and equipment safe without unnecessary shutdowns. Rated for 277VAC with a 14 kAIC interrupting capacity, the BQD150 is commonly used in lighting panels, control panels, and low-voltage systems. Its molded case is sturdy, and low-tab connections make installation quick and simple. Electricians and maintenance teams trust it for everyday protection that keeps your systems running smoothly.

Key Features and Benefits

• 50 Amp rating for branch circuits

• Single-pole breaker for 277VAC systems

• Thermal magnetic trip for overload and short-circuit protection

• 14 kAIC interrupting capacity

• Panelboard mount for easy installation

• Molded case for durability

• Low-tab connections for secure wiring

• Protects circuits, wiring, and equipment

• Ideal for commercial and industrial use


Technical Specifications

• Catalog Number: BQD150

• Manufacturer: Siemens

• Series: BQD

• Poles: 1

• Amp Rating: 50 Amps

• Voltage Rating: 277 VAC

• Frequency: 50/60 Hz

• Interrupting Rating: 14 kAIC

• Trip Unit: Thermal Magnetic

• Mounting Style: Panelboard

• Connection Type: Low Tab

• Frame Size: 100A

• Width: 1 in. | Height: 3 in. | Depth: 4 in.

• Enclosure Material: Molded Case

• Max Operating Temp: 40°C

• Net Weight: 0.56 lb


Material Compliance and Certifications

• UL 489 Listed

• CSA C22.2 Certified

• RoHS Compliant

• WEEE Compliant

• REACH Information Available


Where It Works Best

• The BQD150 is used in commercial buildings, offices, schools, retail spaces, healthcare facilities, and industrial settings.
