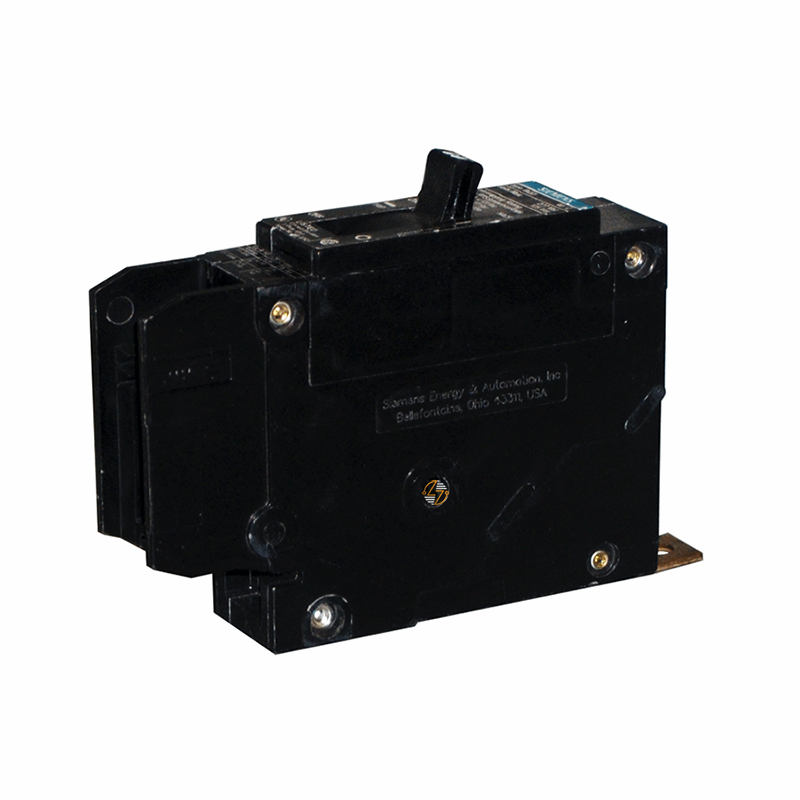

BQD130 - 30Amp Circuit Breaker

BQD130 - 30Amp Circuit Breaker

The Siemens BQD130 is a 30-amp, single-pole circuit breaker commonly used in commercial and industrial electrical systems that operate at 277 volts AC. Built for panelboard applications, it provides dependable protection against overloads and short circuits while helping you keep lighting and power distribution circuits operating safely.

The BQD130 features a 14 kAIC interrupting rating, allowing it to safely clear fault conditions before they can cause more extensive damage to connected equipment and wiring. Whether it's being installed in a commercial lighting panel, office building, school, healthcare facility, or industrial control system, this Siemens breaker offers the straightforward performance electrical professionals expect from the BQD series.

Key Features and Benefits

• 30 Amp Continuous Current Rating: Provides dependable protection for circuits operating within a 30-amp load requirement.
• Single-Pole Configuration: Designed for 277VAC electrical systems.
• Thermal Magnetic Trip Unit: Protects against overloads and short circuits for reliable operation.
• 14 kAIC Interrupting Capacity: Safely clears fault conditions to minimize equipment damage.
• Panelboard Mounting Design: Supports straightforward installation in panelboards.
• Low-Tab Electrical Connection: Provides secure connections for reliable performance.
• Compact Molded Case Construction: Saves panel space while delivering consistent protection.
• Circuit Protection: Helps protect circuits from overloads and short circuits.
• Commercial and Industrial Use: Suitable for commercial and industrial applications.


Technical Specifications

• Catalog Number: BQD130

• Manufacturer: Siemens

• Series: BQD

• Number of Poles: 1

• Ampere Rating: 30 Amps

• Voltage Rating: 277 VAC

• Frequency: 50/60 Hz

• Interrupting Rating: 14 kAIC

• Trip Unit Type: Thermal Magnetic

• Mounting Style: Panelboard Mount

• Connection Type: Low Tab

• Frame Size: 100A

• Dimensions:
  • Width: 3 in.
  • Height: 1 in.
  • Depth: 4 in.
• Enclosure Type: Molded Case Circuit Breaker

• Maximum Ambient Operating Temperature: 40°C

• Net Weight: 0.589 lb


Material Compliance and Certifications

The Siemens BQD130 is manufactured to meet recognized electrical industry standards and compliance requirements.

• UL 489 Listed
• CSA C22.2 Certified
• IEC 60947-2 Compliant
• RoHS Compliant
• WEEE Compliant
• REACH Information Available

Where It Works Best

• The BQD130 is frequently used in commercial lighting systems, panelboards, branch circuits, control panels, office buildings, schools, healthcare facilities, retail spaces, and industrial electrical distribution systems that require dependable 30-amp circuit protection at 277VAC.
