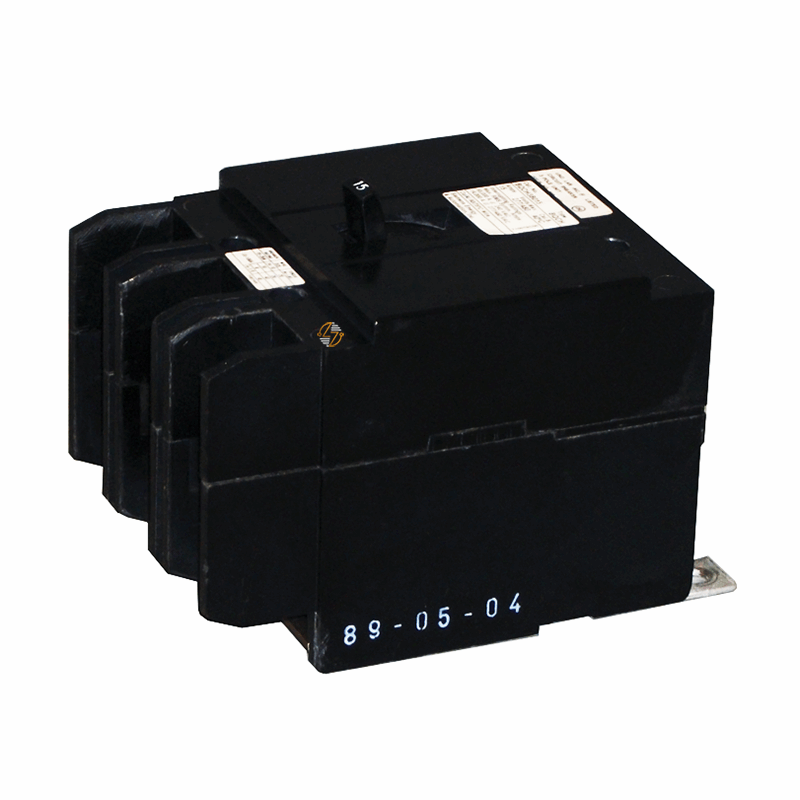

BQCH3B050 - 50Amp Circuit Breaker

BQCH3B050 - 50Amp Circuit Breaker

When you need a 50 amp, 3-pole circuit breaker that matches the specifications of an existing installation, the BQCH3B050 delivers the form, fit, and functionality required for many commercial and industrial electrical systems. Designed with a BQCH frame and bolt-on mounting configuration, this molded case circuit breaker helps provide dependable circuit protection against overloads and short circuits while fitting compatible equipment as intended.

The BQCH3B050 is commonly found in three-phase power distribution systems where maintaining compatibility with existing panelboards and electrical equipment is essential. Its 50 amp rating makes it suitable for a variety of branch circuit and equipment protection applications, while the 14kA interrupting rating at 480VAC supports installations that require this level of fault-current protection. Because it is HACR rated, it is frequently used with heating, ventilation, air conditioning, and refrigeration equipment found throughout commercial facilities.

Whether you're maintaining a manufacturing plant, servicing a commercial building, or replacing a breaker in an established electrical distribution system, choosing the correct frame type, pole configuration, and mounting style can save time and help keep projects moving. Built to last, the BQCH3B050 is designed for applications where a 50 amp, 3-pole bolt-on molded case circuit breaker is required.

Key Features and Benefits

• 50 amp current rating for branch circuit and equipment protection
• 3-pole design for three-phase electrical systems
• Bolt-on mounting for secure installation in compatible equipment
• BQCH frame type for proper fit and replacement applications
• Molded case circuit breaker construction
• 14kA interrupting rating at 480VAC
• HACR rated for HVAC and refrigeration applications
• Rated for operation in ambient temperatures up to 40°C
• Supports form, fit, and functional replacement needs
• Built to last in demanding commercial and industrial environments


Technical Specifications

• Part Number: BQCH3B050

• Circuit Breaker Type: Molded Case Circuit Breaker

• Frame Type: BQCH

• Poles: 3

• Amperage Rating: 50 Amps

• Voltage Rating: 480VAC

• Interrupting Rating: 14kA @ 480VAC

• Mounting Type: Bolt-On

• Ambient Temperature Rating: 40°C

• HACR Rated: Yes

• Dimensions:
  • Width: 3.00 in.
  • Height: 4.49 in.
  • Depth: 2.70 in.
• Dimensions: 3.00"W x 4.49"H x 2.70"D

• Approximate Shipping Weight: 4.0 lbs.


Material Compliance and Certifications

• HACR Rated
• Molded Case Circuit Breaker construction
• Rated for operation in 40°C ambient environments
• Manufactured for use in applications requiring the published electrical ratings and specifications


Where It Works Best

• The BQCH3B050 is well suited for commercial, industrial, institutional, and facility maintenance applications where three-phase power distribution is utilized. It is commonly used with HVAC systems, refrigeration equipment, motor loads, control panels, panelboards, and electrical distribution equipment requiring a 50 amp 3-pole breaker with a 14kA interrupting rating at 480VAC. It is particularly useful when replacing an existing breaker and maintaining compatibility with the original system design is important.
