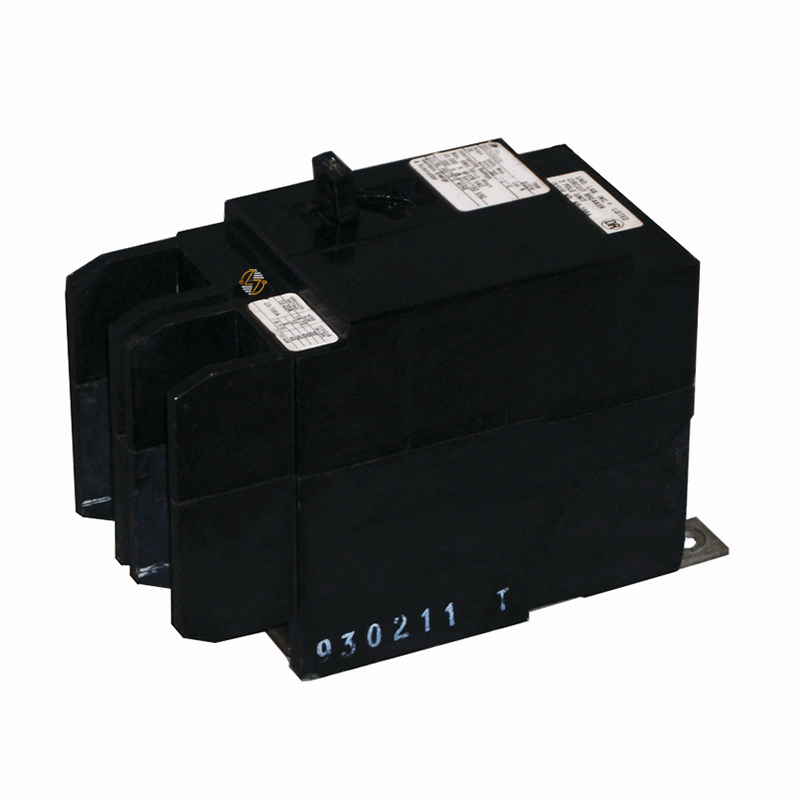

BQCH2B080 - 80Amp Circuit Breaker

BQCH2B080 - 80Amp Circuit Breaker

If you're searching for a BQCH2B080, chances are you're trying to match an existing breaker in a panel or piece of equipment. This 80 amp, 2-pole bolt-on molded case circuit breaker is built for systems that use a BQCH frame and call for a 14kA interrupting rating at 480VAC. When the ratings and frame type match what's already installed, replacing a breaker becomes much more straightforward.

The bolt-on mounting design allows the breaker to be secured in compatible equipment, while the 2-pole configuration is commonly used where both poles need to open together. Breakers like the BQCH2B080 are often found in commercial buildings, warehouses, manufacturing facilities, schools, and other properties that depend on electrical distribution equipment every day.

This breaker is also HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment where that rating is specified. With a 40°C ambient rating, it can be used in a wide range of commercial and industrial environments. Whether you're replacing a breaker that has reached the end of its service life or tracking down the correct part for an existing installation, the BQCH2B080 provides the ratings and configuration needed for a compatible replacement.

Key Features and Benefits

• 80 amp current rating
• 2-pole configuration
• Bolt-on mounting design
• BQCH frame type
• Molded case circuit breaker construction
• 14kA interrupting rating at 480VAC
• HACR rated
• Rated for operation in 40°C ambient conditions
• Compatible with equipment designed for BQCH frame breakers
• Suitable for replacement and maintenance applications
• Built to last


Technical Specifications

• Part Number: BQCH2B080

• Frame Type: BQCH

• Circuit Breaker Type: Molded Case Circuit Breaker

• Poles: 2

• Amperage Rating: 80 Amps

• Voltage Rating: 480VAC

• Interrupting Rating: 14kA @ 480VAC

• Mounting Type: Bolt-On

• Ambient Temperature Rating: 40°C

• HACR Rated: Yes

• Dimensions:
  • Width: 2.00 in.
  • Height: 4.49 in.
  • Depth: 2.70 in.
• Approximate Shipping Weight: 3.0 lbs.


Material Compliance and Certifications

• HACR Rated
• Molded Case Circuit Breaker
• Rated for operation in 40°C ambient conditions
• Intended for installation in compatible electrical equipment
• Suitable for use within published electrical ratings


Where It Works Best

• The BQCH2B080 is commonly used in commercial facilities, warehouses, manufacturing plants, schools, healthcare buildings, and other locations that utilize compatible electrical distribution equipment. Typical applications include HVAC systems, refrigeration equipment, motor circuits, control panels, branch circuits, and power distribution systems requiring an 80 amp, 2-pole bolt-on circuit breaker with a 14kA interrupting rating at 480VAC.
