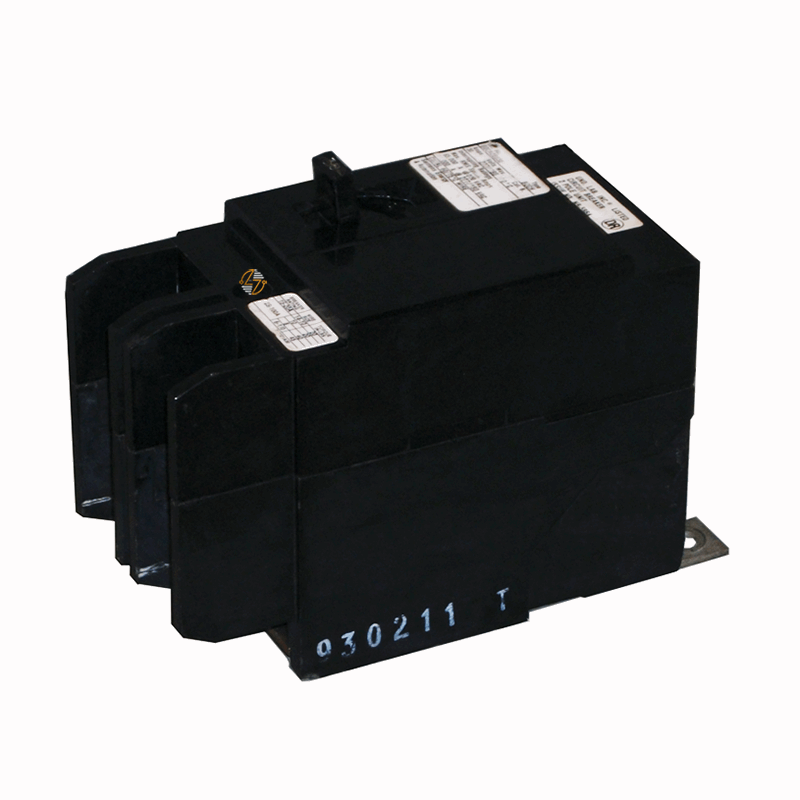

BQCH2B060 - 60Amp Circuit Breaker

BQCH2B060 - 60Amp Circuit Breaker

If you're replacing a breaker in an existing panel or piece of equipment, matching the original specifications is usually the first thing on the checklist. The BQCH2B060 is a 60 amp, 2-pole bolt-on molded case circuit breaker designed for applications that require a BQCH frame and a 14kA interrupting rating at 480VAC. When those specifications match your system requirements, this breaker provides the configuration needed for a compatible replacement.

You'll often find the BQCH2B060 in commercial buildings, manufacturing facilities, warehouses, schools, and other properties that rely on electrical distribution equipment designed around the BQCH platform. Its bolt-on mounting design allows it to be installed securely in compatible equipment, while the 2-pole configuration is used where both poles need to disconnect together.

The breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration applications where that rating is required. It is also rated for operation in 40°C ambient conditions, making it a good fit for many commercial and industrial environments. Whether you're replacing a failed breaker, performing preventive maintenance, or matching an existing installation, the BQCH2B060 helps keep the system consistent with its original design. Built to last, it is intended for long-term use in compatible electrical systems when installed and used within its published ratings.

Key Features and Benefits

• 60 amp current rating
• 2-pole configuration
• Bolt-on mounting design
• BQCH frame type
• Molded case circuit breaker construction
• 14kA interrupting rating at 480VAC
• HACR rated
• Rated for operation in 40°C ambient conditions
• Designed for use in compatible electrical equipment
• Compatible form, fit, and functional replacement
• Built to last


Technical Specifications

• Part Number: BQCH2B060

• Frame Type: BQCH

• Circuit Breaker Type: Molded Case Circuit Breaker

• Poles: 2

• Amperage Rating: 60 Amps

• Voltage Rating: 480VAC

• Interrupting Rating: 14kA @ 480VAC

• Mounting Type: Bolt-On

• Ambient Temperature Rating: 40°C

• HACR Rated: Yes

• Dimensions:
  • Width: 2.00 in.
  • Height: 4.49 in.
  • Depth: 2.70 in.
• Approximate Shipping Weight: 3.0 lbs.


Material Compliance and Certifications

• HACR Rated
• Molded case circuit breaker construction
• Rated for operation in 40°C ambient conditions
• Intended for installation in properly rated compatible equipment
• Suitable for use within published electrical ratings


Where It Works Best

• The BQCH2B060 is commonly used in commercial facilities, warehouses, manufacturing plants, schools, healthcare buildings, and other locations that utilize compatible electrical distribution equipment. Typical applications include HVAC systems, refrigeration equipment, motor circuits, control panels, branch circuits, and power distribution systems requiring a 60 amp, 2-pole bolt-on circuit breaker with a 14kA interrupting rating at 480VAC.
