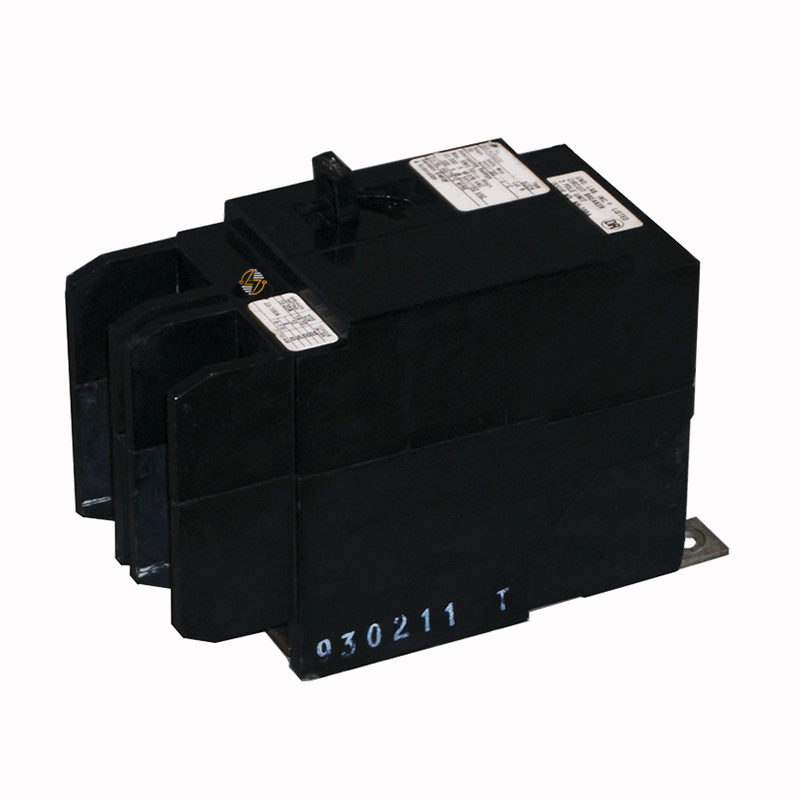

BQCH2B050 - 50Amp Circuit Breaker

BQCH2B050 - 50Amp Circuit Breaker

If you're searching for a BQCH2B050, chances are you're looking for a breaker that matches what's already installed. This 50 amp, 2-pole bolt-on molded case circuit breaker is designed for systems that use a BQCH frame and require a 14kA interrupting rating at 480VAC. When replacing electrical components, matching the original ratings and mounting style helps keep the system configured the way it was designed.

The BQCH2B050 is commonly found in commercial and industrial equipment, including panelboards, HVAC systems, refrigeration equipment, motor circuits, and other power distribution applications. Its bolt-on design allows it to be securely mounted in compatible equipment, while the 2-pole configuration is used where both poles must disconnect together.

Because this breaker is HACR rated, it can be used in heating, air conditioning, and refrigeration applications where that rating is required. It's also rated for 40°C ambient conditions, making it suitable for many everyday operating environments. Whether you're replacing a breaker that has failed or simply matching an existing installation, the BQCH2B050 provides the ratings and configuration needed for a compatible replacement. Like many breakers built for commercial and industrial service, it's designed to hold up over time when used within its intended specifications.

Key Features and Benefits

• 50 amp current rating
• 2-pole configuration
• Bolt-on mounting design
• BQCH frame type
• Molded case circuit breaker construction
• 14kA interrupting rating at 480VAC
• HACR rated
• Rated for operation in 40°C ambient conditions
• Designed for use in compatible electrical equipment
• Compatible form, fit, and functional replacement
• Built to last


Technical Specifications

• Part Number: BQCH2B050

• Frame Type: BQCH

• Circuit Breaker Type: Molded Case Circuit Breaker

• Poles: 2

• Amperage Rating: 50 Amps

• Voltage Rating: 480VAC

• Interrupting Rating: 14kA @ 480VAC

• Mounting Type: Bolt-On

• Ambient Temperature Rating: 40°C

• HACR Rated: Yes

• Dimensions:
  • Width: 2.00 in.
  • Height: 4.49 in.
  • Depth: 2.70 in.
• Approximate Shipping Weight: 3.0 lbs.


Material Compliance and Certifications

• HACR Rated
• Molded case circuit breaker construction
• Rated for operation in 40°C ambient conditions
• Intended for installation in properly rated compatible equipment
• Suitable for use within published electrical ratings


Where It Works Best

• The BQCH2B050 is commonly used in commercial buildings, warehouses, manufacturing facilities, schools, healthcare facilities, and other locations that utilize compatible electrical distribution equipment. Typical applications include HVAC systems, refrigeration equipment, motor loads, branch circuits, control panels, and power distribution systems requiring a 50 amp, 2-pole bolt-on circuit breaker with a 14kA interrupting rating at 480VAC.
