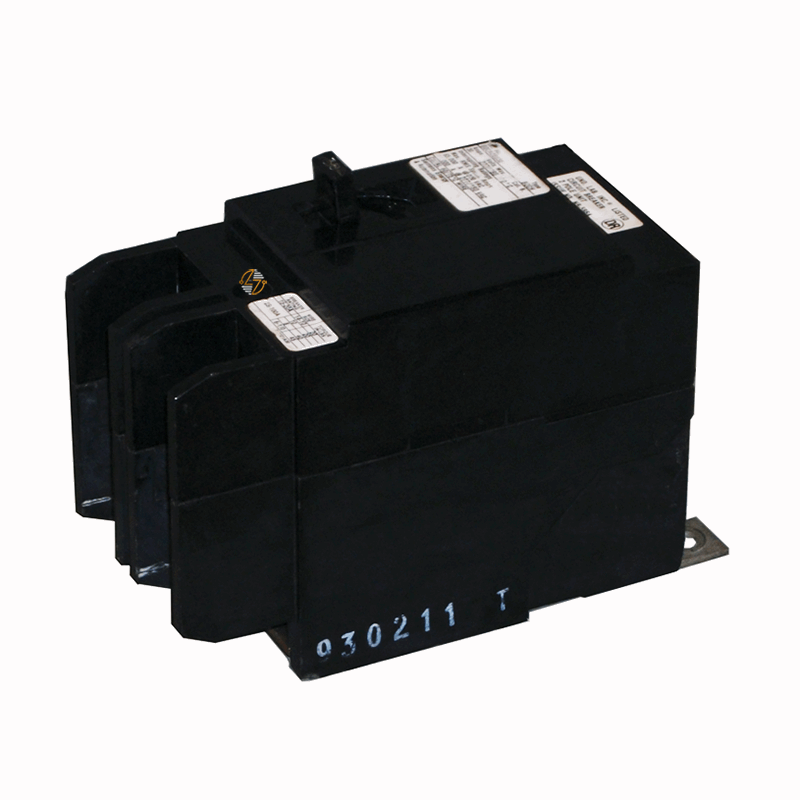

BQCH2B035 - 35Amp Circuit Breaker

BQCH2B035 - 35Amp Circuit Breaker

When you're replacing a breaker in an existing system, the goal is usually straightforward: find the right match and get the equipment back up and running. The BQCH2B035 is a 35 amp, 2-pole bolt-on molded case circuit breaker designed for installations that require a BQCH frame breaker with a 14kA interrupting rating at 480VAC. If the original equipment calls for these specifications, this breaker provides the same basic configuration needed for a compatible replacement.

You'll commonly find the BQCH2B035 in commercial buildings, schools, warehouses, manufacturing facilities, and other properties that rely on electrical distribution equipment designed around the BQCH platform. Its bolt-on mounting design helps it fit securely in compatible equipment, while the 2-pole configuration makes it suitable for applications that require simultaneous disconnection of both poles.

The breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration applications where that rating is specified. It is also rated for operation in 40°C ambient conditions, allowing it to be used in a wide range of commercial and industrial environments. Whether you're handling routine maintenance, replacing a failed breaker, or matching equipment specifications for a repair project, the BQCH2B035 is built to last and designed to maintain the original setup of compatible electrical systems.

Key Features and Benefits

• 35 amp current rating
• 2-pole configuration
• Bolt-on mounting design
• BQCH frame type
• Molded case circuit breaker construction
• 14kA interrupting rating at 480VAC
• HACR rated
• Rated for operation in 40°C ambient conditions
• Designed for use in compatible electrical equipment
• Supports form, fit, and functional replacement requirements
• Built to last


Technical Specifications

• Part Number: BQCH2B035

• Frame Type: BQCH

• Circuit Breaker Type: Molded Case Circuit Breaker

• Poles: 2

• Amperage Rating: 35 Amps

• Voltage Rating: 480VAC

• Interrupting Rating: 14kA @ 480VAC

• Mounting Type: Bolt-On

• Ambient Temperature Rating: 40°C

• HACR Rated: Yes

• Dimensions:
  • Width: 2.00 in.
  • Height: 4.49 in.
  • Depth: 2.70 in.
• Approximate Shipping Weight: 3.0 lbs.


Material Compliance and Certifications

• HACR Rated
• Molded case circuit breaker construction
• Rated for operation in 40°C ambient conditions
• Intended for installation in properly rated compatible equipment
• Suitable for low-voltage power distribution applications within published ratings


Where It Works Best

• The BQCH2B035 is commonly found in commercial facilities, schools, healthcare buildings, warehouses, manufacturing plants, retail locations, and similar environments using compatible electrical distribution equipment. Typical applications include HVAC systems, refrigeration equipment, motor circuits, control panels, branch circuits, and power distribution systems that require a 35 amp, 2-pole bolt-on circuit breaker with a 14kA interrupting rating at 480VAC.
