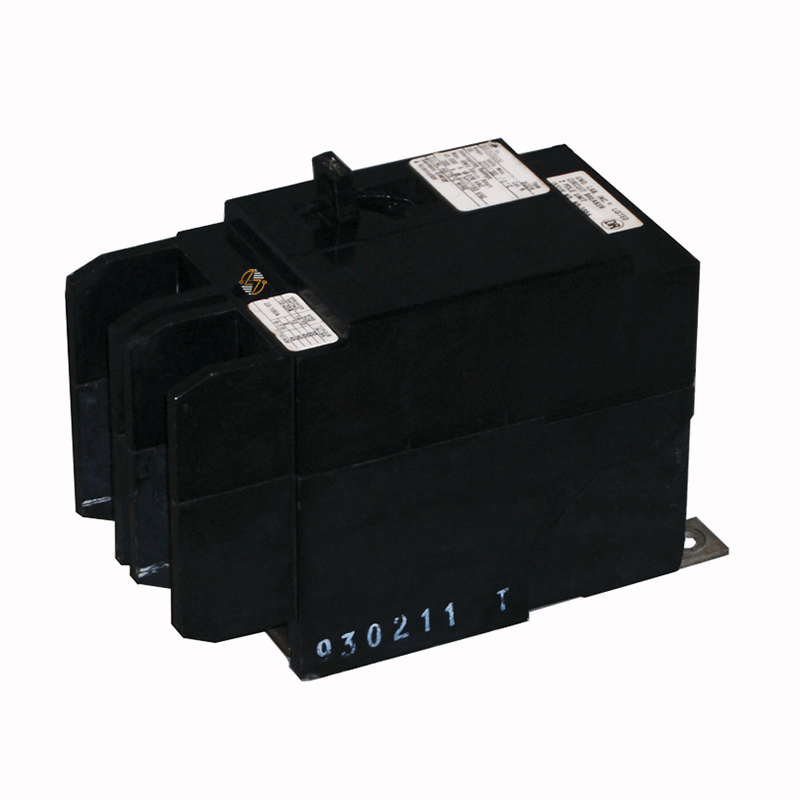

BQCH2B030 - 30Amp Circuit Breaker

BQCH2B030 - 30Amp Circuit Breaker

When a panel calls for a specific breaker, getting the match right matters. The BQCH2B030 is a 30 amp, 2-pole bolt-on molded case circuit breaker designed for systems that require a BQCH frame breaker with a 14kA interrupting rating at 480VAC. For many maintenance and repair projects, the priority is simple: replace the existing breaker with one that matches the original specifications. This breaker provides the ratings, dimensions, and mounting style needed for those applications.

You'll often find the BQCH2B030 in commercial buildings, warehouses, schools, manufacturing facilities, and other properties that rely on compatible electrical distribution equipment. It's commonly used with HVAC systems, refrigeration equipment, control panels, motor circuits, and branch circuits where a 30 amp, 2-pole breaker is required. The bolt-on design helps keep the breaker securely mounted in equipment built for this configuration.

Key Features and Benefits

• 30 amp current rating
• 2-pole configuration
• Bolt-on mounting design
• BQCH frame type
• Molded case circuit breaker construction
• 14kA interrupting rating at 480VAC
• HACR rated
• Rated for operation in 40°C ambient conditions
• Designed for use in compatible electrical equipment
• Supports form, fit, and functional replacement requirements
• Built to last


Technical Specifications

• Part Number: BQCH2B030

• Frame Type: BQCH

• Circuit Breaker Type: Molded Case Circuit Breaker

• Poles: 2

• Amperage Rating: 30 Amps

• Voltage Rating: 480VAC

• Interrupting Rating: 14kA @ 480VAC

• Mounting Type: Bolt-On

• Ambient Temperature Rating: 40°C

• HACR Rated: Yes

• Dimensions:
  • Width: 2.00 in.
  • Height: 4.49 in.
  • Depth: 2.70 in.
• Approximate Shipping Weight: 3.0 lbs.


Material Compliance and Certifications

• HACR Rated
• Molded case circuit breaker construction
• Suitable for low-voltage power distribution applications
• Intended for installation in properly rated compatible equipment


Where It Works Best

• The BQCH2B030 is commonly found in office buildings, schools, healthcare facilities, warehouses, retail centers, manufacturing plants, and similar commercial or industrial properties. Typical applications include HVAC systems, refrigeration equipment, motor loads, control panels, branch circuits, and electrical distribution systems requiring a 30 amp, 2-pole bolt-on circuit breaker with a 14kA interrupting rating at 480VAC.
