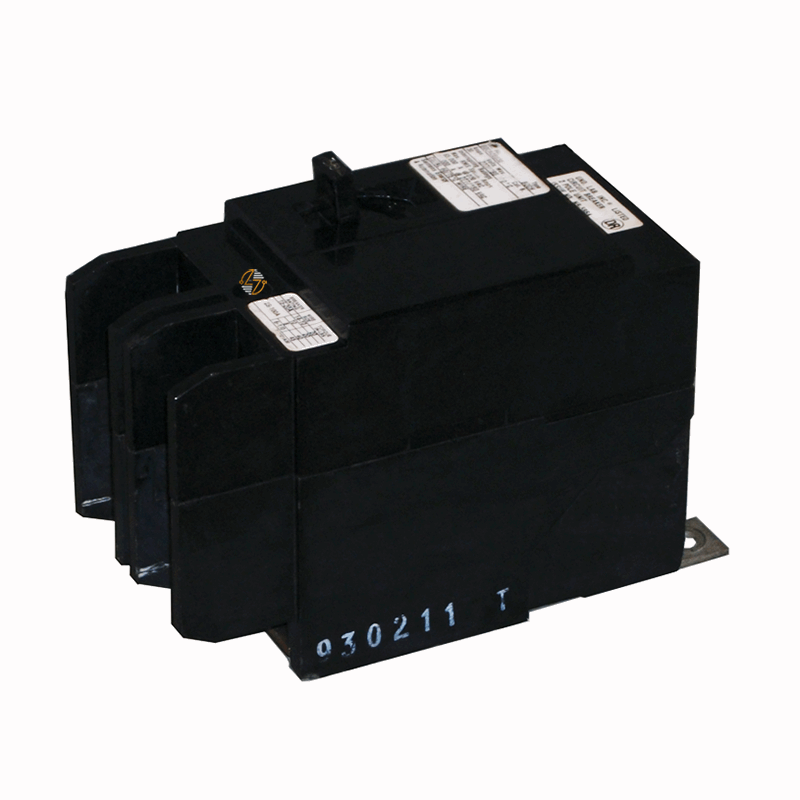

BQCH2B025 - 25Amp Circuit Breaker

BQCH2B025 - 25Amp Circuit Breaker

The BQCH2B025 is a 25 amp, 2-pole bolt-on molded case circuit breaker designed for electrical systems that require a BQCH frame breaker with a 14kA interrupting rating at 480VAC. In many maintenance and repair situations, the goal isn't to redesign the system—it's to find a breaker that matches the original specifications. This model is intended for applications where the existing equipment calls for a 25 amp, 2-pole breaker with the same mounting style and electrical ratings.

You'll often find the BQCH2B025 in commercial buildings, manufacturing facilities, schools, warehouses, and other properties that rely on compatible electrical distribution equipment. It's commonly used in HVAC systems, refrigeration equipment, control panels, motor-related applications, and branch circuits where a two-pole breaker is required. The bolt-on design helps keep the breaker securely mounted in equipment built for this configuration, making it a practical choice for maintenance teams and electricians working with existing installations.

Key Features and Benefits

• 25 amp current rating
• 2-pole configuration
• Bolt-on mounting design
• BQCH frame type
• Molded case circuit breaker construction
• 14kA interrupting rating at 480VAC
• HACR rated
• Rated for operation in 40°C ambient conditions
• Designed for use in compatible electrical equipment
• Supports form, fit, and functional replacement requirements
• Built to last


Technical Specifications

• Part Number: BQCH2B025

• Frame Type: BQCH

• Circuit Breaker Type: Molded Case Circuit Breaker

• Poles: 2

• Amperage Rating: 25 Amps

• Voltage Rating: 480VAC

• Interrupting Rating: 14kA @ 480VAC

• Mounting Type: Bolt-On

• Ambient Temperature Rating: 40°C

• HACR Rated: Yes

• Dimensions:
  • Width: 2.00 in.
  • Height: 4.49 in.
  • Depth: 2.70 in.
• Approximate Shipping Weight: 3.0 lbs.


Material Compliance and Certifications

• HACR Rated
• Molded case circuit breaker construction
• Suitable for low-voltage power distribution applications
• Intended for installation in properly rated compatible equipment


Where It Works Best

• The BQCH2B025 is commonly found in office buildings, healthcare facilities, schools, retail centers, warehouses, manufacturing plants, and similar commercial or industrial properties. Typical applications include HVAC equipment, refrigeration systems, motor loads, control panels, branch circuits, and electrical distribution systems requiring a 25 amp, 2-pole bolt-on circuit breaker with a 14kA interrupting rating at 480VAC.
