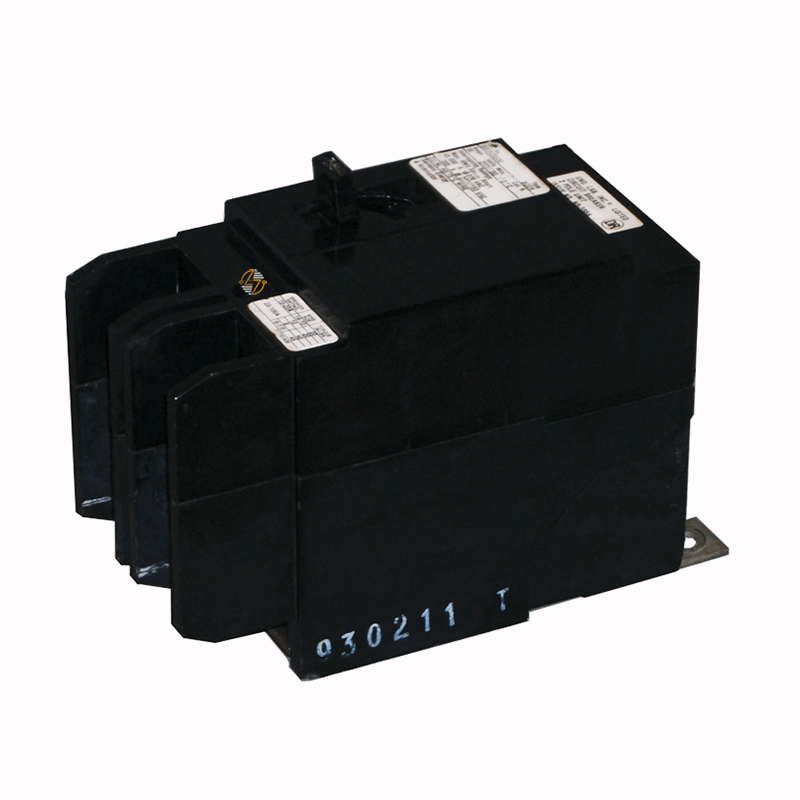

BQCH2B015 - 15Amp Circuit Breaker

BQCH2B015 - 15Amp Circuit Breaker

When you're maintaining or repairing an existing electrical distribution system, finding a circuit breaker that matches the original equipment specifications is essential. The BQCH2B015 is a 15 amp, 2-pole bolt-on molded case circuit breaker designed for applications that require a BQCH frame breaker with a 14kA interrupting rating at 480VAC. Whether you're replacing a failed breaker during routine maintenance or sourcing a compatible unit for an existing installation, this breaker is built to provide the fit and functionality required by the original design.

Its bolt-on mounting configuration helps you ensure secure installation in compatible panelboards and electrical distribution equipment, while the 2-pole design provides protection for circuits that require simultaneous disconnecting of both poles. The BQCH2B015 is also HACR rated, making it suitable for heating, air conditioning, and refrigeration applications where this rating is specified. Rated for operation in 40°C ambient environments, this molded case circuit breaker is built to last and remains a dependable choice for commercial and industrial facilities that rely on maintaining existing electrical infrastructure.

Key Features and Benefits

• 15 amp current rating for branch circuit protection
• 2-pole design for applications requiring dual-pole protection
• Bolt-on mounting style for compatible panelboard installations
• BQCH frame configuration for proper fit and replacement applications
• 14kA interrupting capacity at 480VAC
• HACR rated for HVAC and refrigeration applications
• Designed for operation in 40°C ambient environments
• Molded case construction for electrical distribution systems
• Built to last in demanding commercial and industrial settings
• Ideal for maintenance, repair, and replacement projects requiring matching specifications


Technical Specifications

• Part Number: BQCH2B015

• Frame Type: BQCH

• Poles: 2

• Amperage Rating: 15 Amps

• Interrupting Rating: 14kA @ 480VAC

• Voltage Rating: 480VAC

• Mounting Type: Bolt-On

• Breaker Type: Molded Case Circuit Breaker

• Ambient Rating: 40°C

• HACR Rated: Yes

• Dimensions:
  • Width: 2.00 in.
  • Height: 4.49 in.
  • Depth: 2.70 in.
• Approximate Shipping Weight: 3.0 lbs.


Material Compliance and Certifications

• HACR Rated
• Molded Case Circuit Breaker
• Designed for use in properly rated and compatible electrical equipment
• Manufactured for low-voltage power distribution applications


Where It Works Best

• The BQCH2B015 is commonly used in commercial buildings, industrial facilities, manufacturing plants, schools, healthcare facilities, warehouses, and other environments that depend on reliable power distribution. It is frequently found protecting HVAC equipment, refrigeration systems, motor loads, control panels, branch circuits, and general electrical distribution systems where a compatible 15 amp, 2-pole bolt-on circuit breaker is required.
