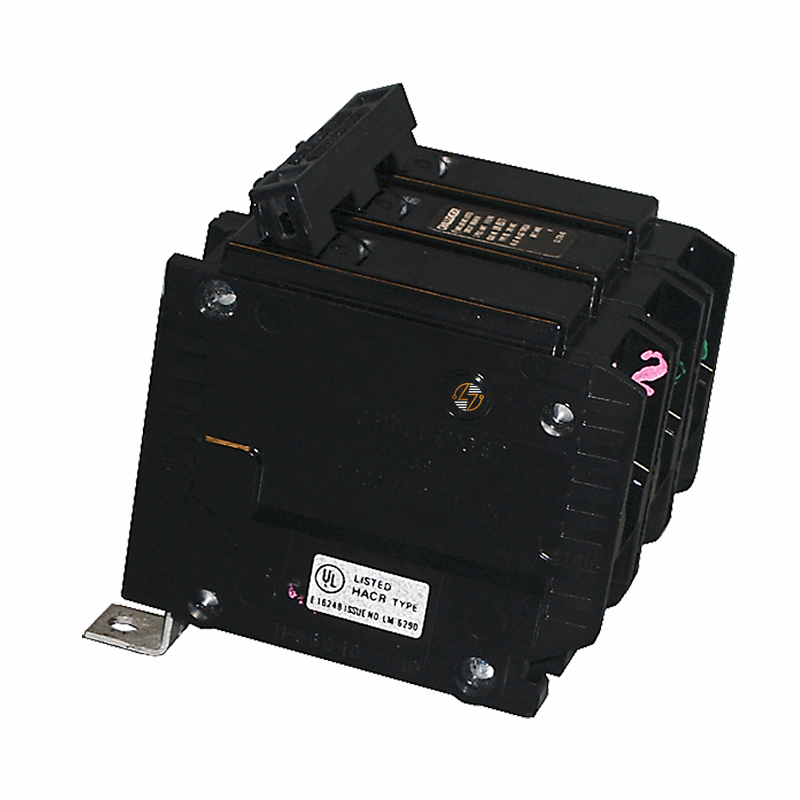

The BQ3D100 is a 100-amp, 3-pole bolt-on circuit breaker used in compatible BQ electrical panels and distribution equipment. Rated for 240VAC, it is designed for three-phase applications where a 100-amp breaker is required. The common-trip design opens all three poles together during an overload or short circuit, and the bolt-on connection helps you keep the breaker securely mounted in the panel.

You'll find breakers like the BQ3D100 in schools, office buildings, warehouses, apartment complexes, and a wide range of commercial properties. It is commonly used on feeder circuits, HVAC equipment, motor loads, and general power distribution systems. With a 10kA interrupting rating and HACR certification, it meets the requirements of many existing installations that utilize BQ-frame equipment.

When replacing a breaker, matching the original specifications is important. The BQ3D100 is intended for applications that call for a 100-amp, 3-pole BQ breaker with a bolt-on mounting configuration.

Key Features and Benefits

• 100 amp current rating
• 3-pole common-trip design
• Bolt-on mounting configuration
• BQ frame type
• 240VAC voltage rating
• 10kA interrupting capacity
•  HACR rated
• Molded case circuit breaker construction
• Compatible with BQ electrical equipment
• Built for long-term service


Technical Specifications

• Part Number: BQ3D100

• Frame Type: BQ

• Amperage Rating: 100 Amps

• Number of Poles: 3

• Voltage Rating: 240VAC

• A.I.C. Rating: 10kA @ 240VAC

• Mounting Type: Bolt-On

• Operating Temperature: 40°C

• Dimensions:
  • Width: 3.00 in.
  • Height: 3.29 in.
  • Depth: 2.92 in.
  • Dimensions: 3.00"W x 3.29"H x 2.92"D
• Approximate Shipping Weight: 3.00 lbs.


Material Compliance and Certifications

• HACR Rated
• Suitable for low-voltage electrical distribution applications
• Manufactured to applicable industry standards for molded case circuit breakers


Where It Works Best

• The BQ3D100 is commonly used in HVAC systems, feeder circuits, motor control equipment, lighting panels, and general electrical distribution applications. It can be found in commercial buildings, retail spaces, schools, apartment properties, warehouses, and other facilities that utilize compatible BQ-frame electrical equipment.
