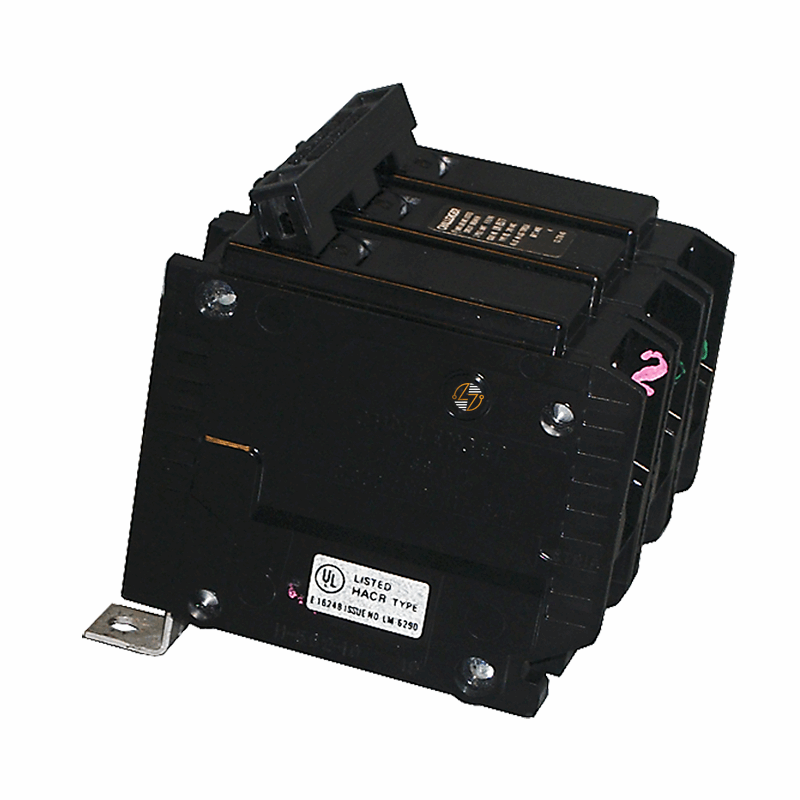

BQ3D090 - 90Amp Circuit Breaker

BQ3D090 - 90Amp Circuit Breaker

The BQ3D090 is a 90-amp, 3-pole bolt-on circuit breaker designed for use in compatible BQ electrical panels and distribution equipment. Rated for 240VAC, it provides overcurrent protection for three-phase circuits and features a common-trip design that opens all three poles at the same time when an overload or short circuit occurs. The bolt-on mounting style helps you ensure a secure fit in equipment designed for BQ-frame breakers.

You'll often find the BQ3D090 in commercial buildings, schools, warehouses, apartment complexes, and light industrial facilities. With a 10kA interrupting rating and HACR certification, it is commonly used on HVAC systems, feeder circuits, motor loads, and general power distribution equipment.

Key Features and Benefits

• 90 amp current rating
• 3-pole common-trip operation
•  Bolt-on mounting configuration
• BQ frame type
• 240VAC voltage rating
• 10kA interrupting capacity
• HACR rated for HVAC applications
• Molded case circuit breaker construction
• Designed for use in compatible BQ electrical equipment


Technical Specifications

• Part Number: BQ3D090

• Frame Type: BQ

• Amperage Rating: 90 Amps

• Number of Poles: 3

• Voltage Rating: 240VAC

• A.I.C. Rating: 10kA @ 240VAC

• Mounting Type: Bolt-On

• Circuit Breaker Type: Molded Case Circuit Breaker

• HACR Rated: Yes

• Operating Temperature: 40°C

• Dimensions:
  • Width: 3.00 in.
  • Height: 3.29 in.
  • Depth: 2.92 in.
  • Dimensions: 3.00"W x 3.29"H x 2.92"D
• Approximate Shipping Weight: 3.00 lbs.


Material Compliance and Certifications

• HACR Rated
• Suitable for low-voltage electrical distribution applications
• Manufactured to applicable industry standards for molded case circuit breakers
• Intended for use in compatible BQ-frame electrical equipment


Where It Works Best

• The BQ3D090 is commonly used in HVAC systems, feeder circuits, motor control applications, lighting panels, and general electrical distribution equipment. It can be found in office buildings, retail centers, schools, apartment properties, warehouses, and light industrial facilities that utilize compatible BQ-frame panelboards and distribution systems.
