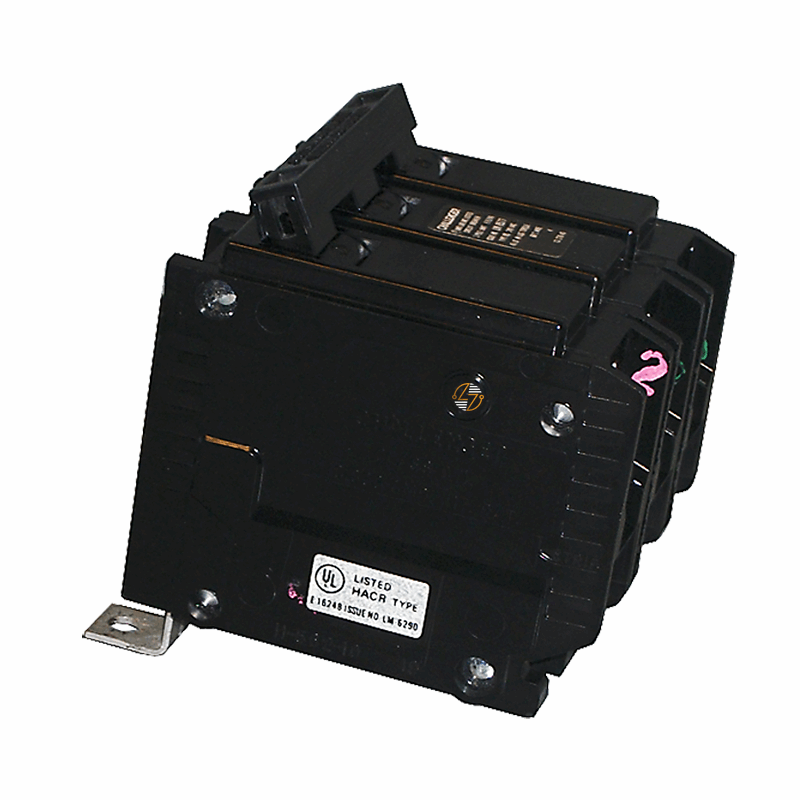

BQ3D080 - 80Amp Circuit Breaker

BQ3D080 - 80Amp Circuit Breaker

The BQ3D080 is an 80-amp, 3-pole bolt-on circuit breaker designed for use in compatible BQ electrical equipment. Rated for 240VAC, it provides overcurrent protection for three-phase circuits and features a common-trip design that opens all three poles together when a fault occurs. The bolt-on mounting style helps you ensure a secure fit in panelboards and distribution equipment designed for BQ-frame breakers.

You'll commonly find the BQ3D080 in commercial buildings, schools, warehouses, apartment complexes, and light industrial facilities. With a 10kA interrupting rating and HACR certification, it is often used for feeder circuits, HVAC equipment, motor loads, and general power distribution. When replacing an existing breaker, matching the original frame type, amperage, voltage rating, and mounting configuration is important. The BQ3D080 is designed for those compatible applications, providing the form and fit needed to keep existing systems operating as intended.

Key Features and Benefits

• 80 amp current rating
• 3-pole common-trip operation
• Bolt-on mounting configuration
• BQ frame type
• 240VAC voltage rating
• 10kA interrupting capacity
• HACR rated for HVAC applications
• Molded case circuit breaker construction
• Designed for use in compatible BQ electrical equipment
• Built for long-term service


Technical Specifications

• Part Number: BQ3D080

• Frame Type: BQ

• Amperage: 80 Amps

• Poles: 3

• Voltage Rating: 240VAC

• A.I.C. Rating: 10kA @ 240VAC

• Mounting Type: Bolt-On

• Circuit Breaker Type: Molded Case Circuit Breaker

• HACR Rated: Yes

• Operating Temperature: 40°C

• Dimensions:
  • Width: 3.00 in.
  • Height: 3.29 in.
  • Depth: 2.92 in.
  • Dimensions: 3.00"W x 3.29"H x 2.92"D
• Approximate Shipping Weight: 3.00 lbs.


Material Compliance and Certifications

• HACR Rated
• Suitable for low-voltage electrical distribution applications
• Manufactured to applicable industry standards for molded case circuit breakers
• Intended for use in compatible BQ-frame electrical equipment


Where It Works Best

• The BQ3D080 is commonly used in HVAC systems, feeder circuits, motor control applications, lighting panels, and general electrical distribution. It can be found in office buildings, retail centers, schools, apartment properties, warehouses, and light industrial facilities that utilize compatible BQ-frame panelboards and distribution equipment.
