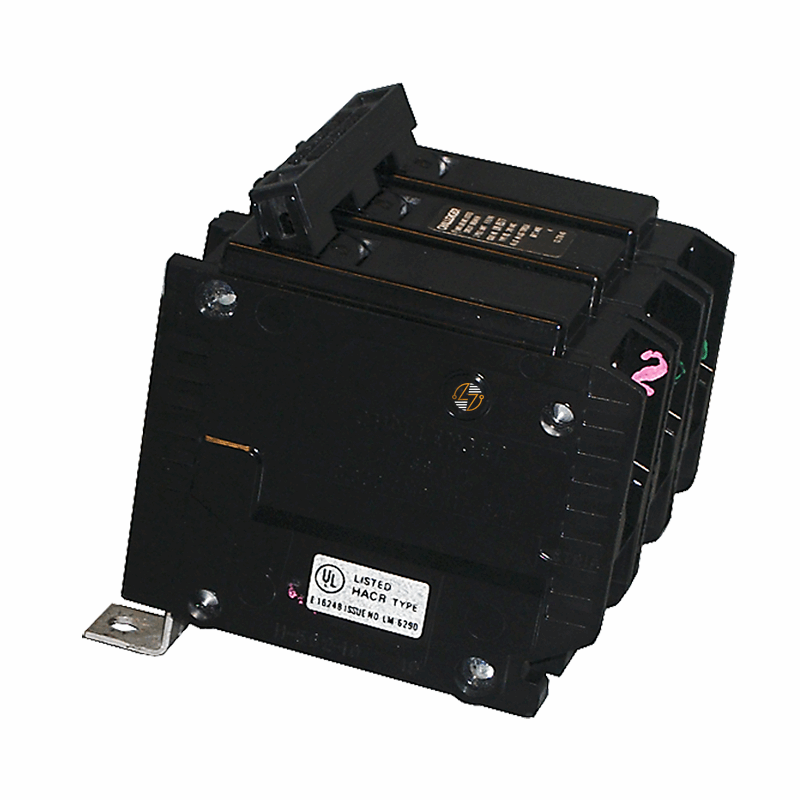

BQ3D060 - 60Amp Circuit Breaker

BQ3D060 - 60Amp Circuit Breaker

The BQ3D060 is a 60-amp, 3-pole circuit breaker designed for use in compatible BQ electrical panels and distribution equipment. Rated for 240VAC systems, it uses a common-trip design that disconnects all three poles at the same time if an overload or short circuit occurs. The bolt-on mounting configuration helps you provide a secure connection within the panel and makes it suitable for installations where a BQ-frame breaker is specified.

This breaker is commonly found in commercial buildings, schools, warehouses, apartment complexes, and light industrial facilities. With a 10kA interrupting rating and HACR certification, it is often used on HVAC equipment, motor circuits, feeder circuits, and general electrical distribution systems. When you're maintaining an existing panel, using the correct breaker type matters, and the BQ3D060 is designed to match applications that require a 60-amp, 3-pole BQ breaker. Like many breakers still operating in service today, it was built to last and continues to be used in a wide range of electrical systems.

Key Features and Benefits

• 60 amp current rating
• 3-pole common-trip operation
• Bolt-on mounting design
• BQ frame type
• 240VAC voltage rating
• 10kA interrupting capacity
• HACR rated for HVAC applications
• Molded case circuit breaker construction
• Designed for use in compatible BQ electrical equipment
• Built for long-term service

Technical Specifications

• Part Number: BQ3D060
• Frame Type: BQ
• Amperage Rating: 60 Amps
• Number of Poles: 3
• Voltage Rating: 240VAC
• Interrupting Rating: 10kA @ 240VAC
• Mounting Type: Bolt-On
• Operating Temperature: 40°C
• Dimensions: 3.00"W x 3.29"H x 2.92"D
• Approximate Shipping Weight: 3.00 lbs.

Material Compliance and Certifications

• HACR Rated
• Suitable for low-voltage electrical distribution applications
• Manufactured to applicable industry standards for molded case circuit breakers

Where It Works Best

• The BQ3D060 is commonly used for HVAC systems, feeder circuits, motor loads, lighting panels, and general power distribution. It can be found in office buildings, retail centers, apartment properties, schools, warehouses, and other facilities that utilize compatible BQ-frame electrical equipment.
