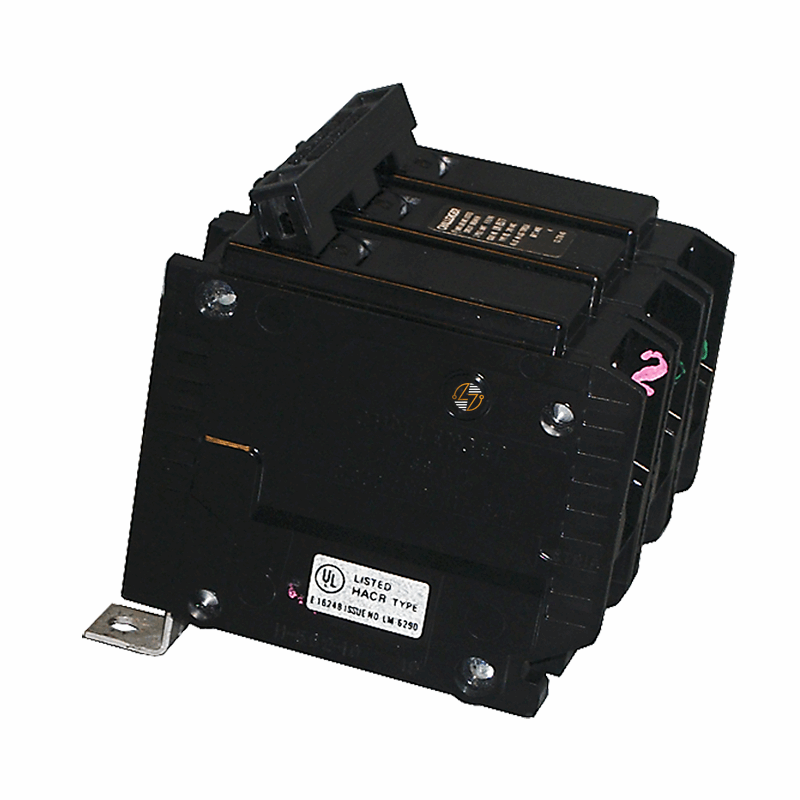

BQ3D050 - 50Amp Circuit Breaker

BQ3D050 - 50Amp Circuit Breaker

The BQ3D050 is a 50-amp, 3-pole circuit breaker designed for use in compatible BQ electrical distribution equipment. Featuring a bolt-on mounting design and common-trip operation, it disconnects all three poles simultaneously when an overload or short circuit occurs.

With a 10kA interrupting rating at 240VAC, the BQ3D050 is often found in commercial buildings, warehouses, apartment complexes, schools, and light industrial facilities. It is HACR rated, making it suitable for heating, air conditioning, and refrigeration applications, as well as general power distribution. Whether you're replacing an existing breaker or maintaining an older panel, matching the correct frame type and electrical ratings is important, and the BQ3D050 is designed for applications where a BQ-frame breaker is specified.

Key Features and Benefits

• 50 amp current rating
• 3-pole common-trip design
• Bolt-on mounting configuration
• BQ frame type
• 240VAC voltage rating
• 10kA interrupting capacity
• HACR rated
• Molded case circuit breaker construction
• Designed for use in compatible BQ electrical equipment
• Built for long-term service

Technical Specifications

• Part Number: BQ3D050
• Frame Type: BQ
• Amperage Rating: 50 Amps
• Number of Poles: 3
• Voltage Rating: 240VAC
• Interrupting Rating: 10kA @ 240VAC
• Mounting Type: Bolt-On
• Operating Temperature: 40°C
• Dimensions: 3.00"W x 3.29"H x 2.92"D
• Approximate Shipping Weight: 3.00 lbs.

Material Compliance and Certifications

• HACR Rated
• Suitable for low-voltage electrical distribution applications
• Manufactured to applicable industry standards for molded case circuit breakers

Where It Works Best

• The BQ3D050 is commonly used for feeder circuits, branch circuits, HVAC equipment, motor loads, lighting panels, and general electrical distribution. It can be found in office buildings, retail spaces, apartment properties, schools, manufacturing facilities, and other locations that utilize compatible BQ-frame panel equipment.
