BQ3D030 - 30Amp Circuit Breaker

BQ3D030 - 30Amp Circuit Breaker

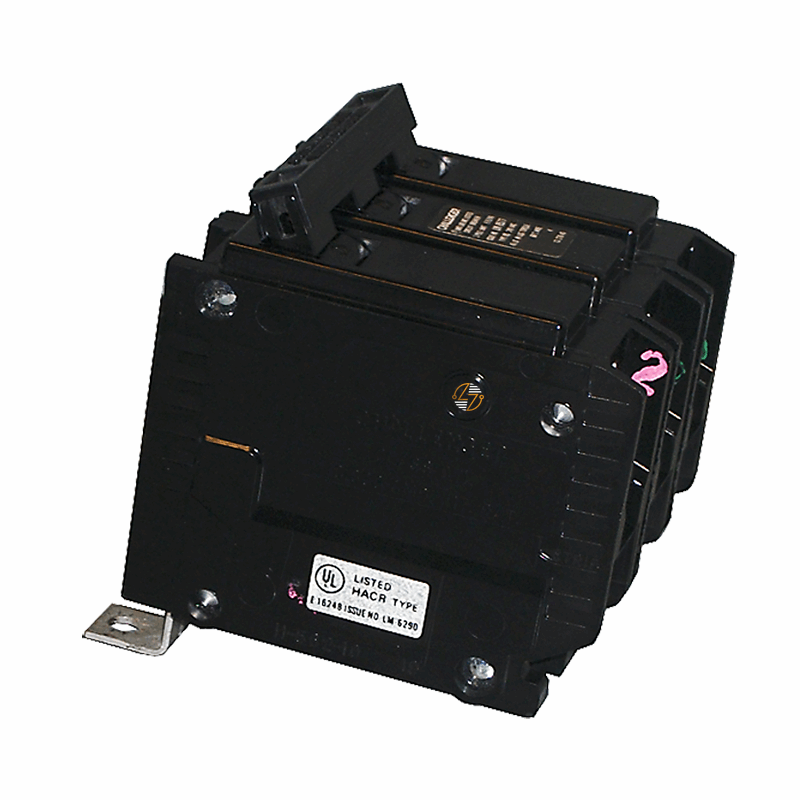

The Challenger BQ3D030 is a 30-amp, 3-pole circuit breaker designed for use in 240VAC electrical systems. It features a bolt-on mounting design and a Type BQ frame, making it a direct replacement for compatible Challenger panel applications. The common-trip mechanism opens all three poles together when a fault is detected, which is important in three-phase systems where all conductors need to disconnect at the same time.

With a 10kA interrupting rating, the BQ3D030 is commonly found protecting HVAC equipment, motor loads, lighting panels, and general power distribution circuits. For facilities that still rely on Challenger equipment, matching the correct breaker helps you maintain the original panel configuration and keeps maintenance work straightforward. This HACR-rated breaker was built for your everyday electrical service and continues to be used in many commercial, industrial, and multi-unit residential installations.

Key Features and Benefits

• 30 amp current rating
• 3-pole common-trip operation
• 240VAC voltage rating
• 10kA interrupting capacity
• Bolt-on mounting configuration
• Type BQ frame
• HACR rated
• Molded case circuit breaker construction
• Built for long-term service

Technical Specifications

• Manufacturer: Challenger

• Catalog Number: BQ3D030

• Frame Type: BQ

• Amp Rating: 30 Amps

• Number of Poles: 3

• Voltage Rating: 240VAC

• Interrupting Rating: 10kA @ 240VAC

• Mounting Type: Bolt-On

• Operating Temperature: 40°C

• Width: 3.00 in.

• Height: 3.29 in.

• Depth: 2.92 in.

• Dimensions: 3.00"W x 3.29"H x 2.92"D

• Approximate Shipping Weight: 3.00 lbs.


Material Compliance and Certifications

• HACR Rated
• UL 489 Listed

Where It Works Best

• The Challenger BQ3D030 is commonly used in commercial buildings, warehouses, apartment complexes, schools, and light industrial facilities. Typical applications include HVAC systems, motor control equipment, feeder circuits, branch circuits, and general electrical distribution where a 30-amp, 3-pole Type BQ breaker is specified.
