GTE/SYLVANIA
BQ3D015 - 15Amp Circuit Breaker
BQ3D015 - 15Amp Circuit Breaker
Couldn't load pickup availability
BQ3D015 - 15Amp Circuit Breaker

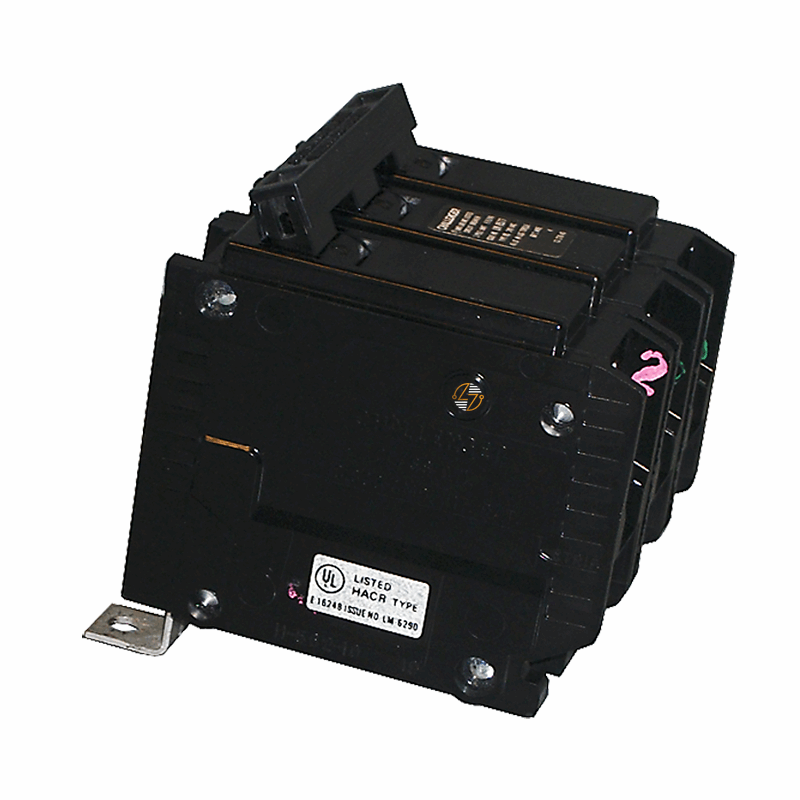

The Challenger BQ3D015 is a 15-amp, 3-pole breaker designed for your 240VAC three-phase circuits. It uses a bolt-on design with load-side lugs included, fitting directly into Challenger Type BQ panelboards. The common-trip setup ensures all three poles disconnect at the same time during an overload or short circuit, protecting your wiring and equipment. Built for long-term use, it’s widely found in commercial spaces, schools, warehouses, and light industrial facilities.
Key Features and Benefits
- 15 amp current rating
- 3-pole common-trip operation
- 240VAC voltage rating
- 10kA interrupting capacity (AIR)
- Bolt-on mounting
- Type BQ frame
- HACR rated
- Load-side lugs included
- Compatible with Challenger Type BQ panelboards
Technical Specifications
- Manufacturer: Challenger
- Catalog Number: BQ3D015
- Amp Rating: 15 Amps
- Number of Poles: 3
- Voltage Rating: 240VAC
- Interrupting Rating: 10kA AIR
- Mounting Type: Bolt-On
- HACR Rated: Yes
- Operating Temperature: 40°C
- Dimensions: 3.00"W x 3.29"L x 2.92"D
- Approx. Shipping Weight: 3.00 lbs
Material Compliance and Certifications
- HACR rated
- UL listed for low-voltage applications
Where It Works Best
- Perfect for branch circuits, motor controls, HVAC systems, and lighting in commercial buildings, schools, warehouses, and light industrial facilities where a 15-amp, 3-pole Challenger BQ breaker is required.
