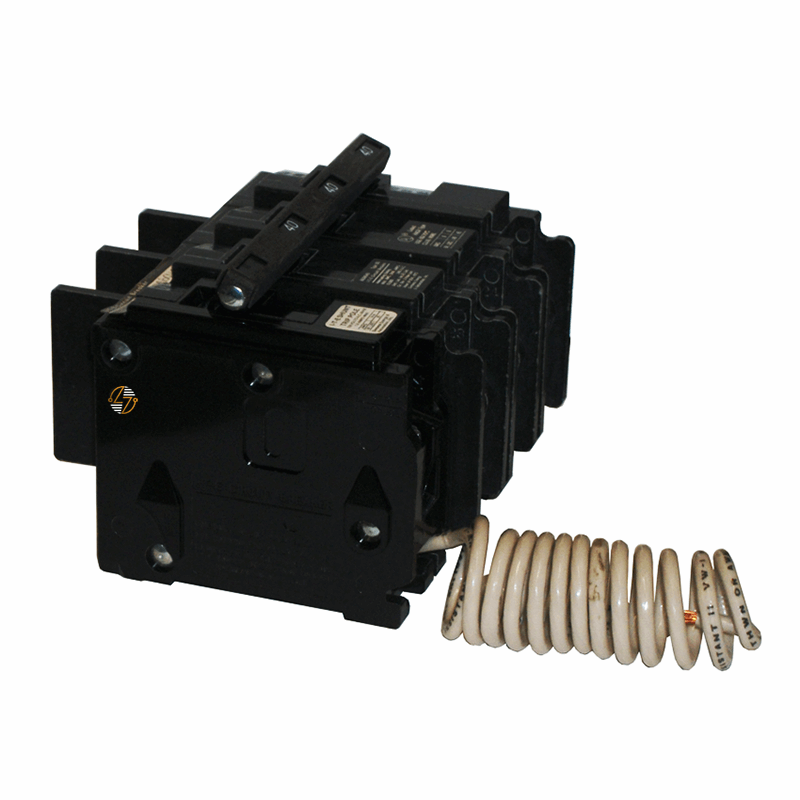

BQ3B07000S01 - 70Amp Circuit Breaker

BQ3B07000S01 - 70Amp Circuit Breaker

The Siemens BQ3B07000S01 is a 70-amp, 3-pole circuit breaker used in 240V three-phase distribution systems. It combines standard overcurrent protection with a factory-installed 120VAC shunt trip, allowing the breaker to be opened remotely from a control circuit when needed. This type of configuration is often found in applications where emergency shutdown capability or remote operation is part of the system design.

Built on Siemens' Type BQ platform, this breaker uses a common-trip mechanism that opens all three poles together during a fault condition. The bolt-on design provides a secure connection in compatible equipment, and load-side lugs are included. A 10 kA interrupting rating makes it suitable for a variety of commercial and industrial installations, including panelboards, HVAC equipment, machinery disconnect circuits, and distribution panels.

Whether you're replacing an existing unit or maintaining a Siemens electrical system, the BQ3B07000S01 provides the ratings and functionality required for applications that call for a 70-amp, 3-pole breaker with remote tripping capability. Like many Siemens molded case breakers, it was built for long service life in everyday electrical distribution environments.

Key Features and Benefits

• 70 amp continuous current rating
• Three-pole common-trip operation
• 240 VAC voltage rating
• 10 kA interrupting capacity
• Factory-installed 120VAC shunt trip
• Remote breaker operation capability
• Bolt-on mounting configuration
• Load-side lugs included
• Molded case construction
• Suitable for electrical distribution systems


Technical Specifications

• Catalog Number: BQ3B07000S01

• Manufacturer: Siemens

• Series: BQ

• Product Type: Molded Case Circuit Breaker

• Ampere Rating: 70 Amps

• Number of Poles: 3

• Voltage Rating: 240 VAC

• Interrupting Rating: 10 kA AIR

• Trip Type: Common Trip

• Shunt Trip Voltage: 120 VAC

• Connection Type: Bolt-On

• Height: 4 in.

• Width: 4 in.

• Depth: 6 in.

• Weight: 1.587 lb

• Country of Origin: Mexico


Material Compliance and Certifications

• UL 489 Listed

• Intended for low-voltage power distribution applications

• Manufactured to Siemens electrical product standards


Where It Works Best

• The BQ3B07000S01 is commonly used in commercial facilities, schools, warehouses, manufacturing plants, and institutional buildings. Typical applications include panelboards, feeder circuits, HVAC systems, motor control equipment, emergency shutdown systems, fire alarm interfaces, and building automation systems where remote breaker tripping is required.
