BQ3B025 - 25Amp Circuit Breaker

BQ3B025 - 25Amp Circuit Breaker

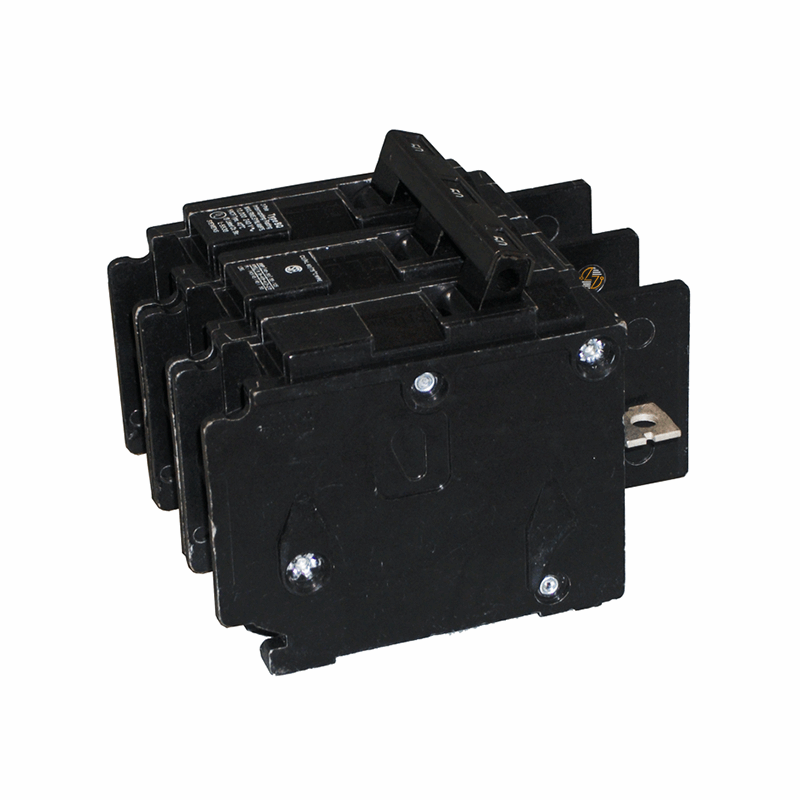

Meet the Siemens BQ3B025, a 25 amp, 3-pole circuit breaker built to protect your three-phase electrical circuits. Designed for use in commercial and industrial panelboards, this breaker ensures that all three poles disconnect at the same time during overloads or short circuits, keeping your systems safe and stable. Rated for 240VAC and 10kA interrupting capacity, it’s a reliable choice for branch circuit protection where standard safety is needed. The bolt-on mounting style keeps installation secure, and load-side lugs simplify wiring, making it an easy fit for maintenance, upgrades, or replacements. Built for form, fit, and function, the BQ3B025 works with Siemens Type BQ equipment, providing consistent protection for motor loads, control panels, HVAC systems, and other 240V three-phase circuits.

Key Features and Benefits

• 25 amp, 3-pole common-trip circuit breaker
• Rated for 240V AC three-phase systems
• 10kA interrupting capacity for standard branch circuits
• Bolt-on design ensures a secure fit
• Load-side lugs included for straightforward wiring
• Designed for branch circuit protection in commercial and industrial settings
• Compatible with Siemens Type BQ panelboards


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: BQ3B025

• Number of Poles: 3

• Amperage Rating: 25 Amps

• Voltage Rating: 240 VAC

• Interrupting Rating: 10 kAIC

• Trip Type: Common Trip

• Mounting Type: Bolt-On

• Load-Side Lugs: Included

• Dimensions: 3 in. W x 3.972 in. D x 3 in. H

• Net Weight: 1.014 lb.

• Country of Origin: Mexico


Material Compliance and Certifications

• UL 489 Listed
• Meets industry standards for low-voltage electrical distribution


Where It Works Best

• The BQ3B025 is ideal for your commercial buildings, warehouses, manufacturing facilities, schools, and other environments where reliable three-phase circuit protection is needed.
