BQ3B015 - 15Amp Circuit Breaker

BQ3B015 - 15Amp Circuit Breaker

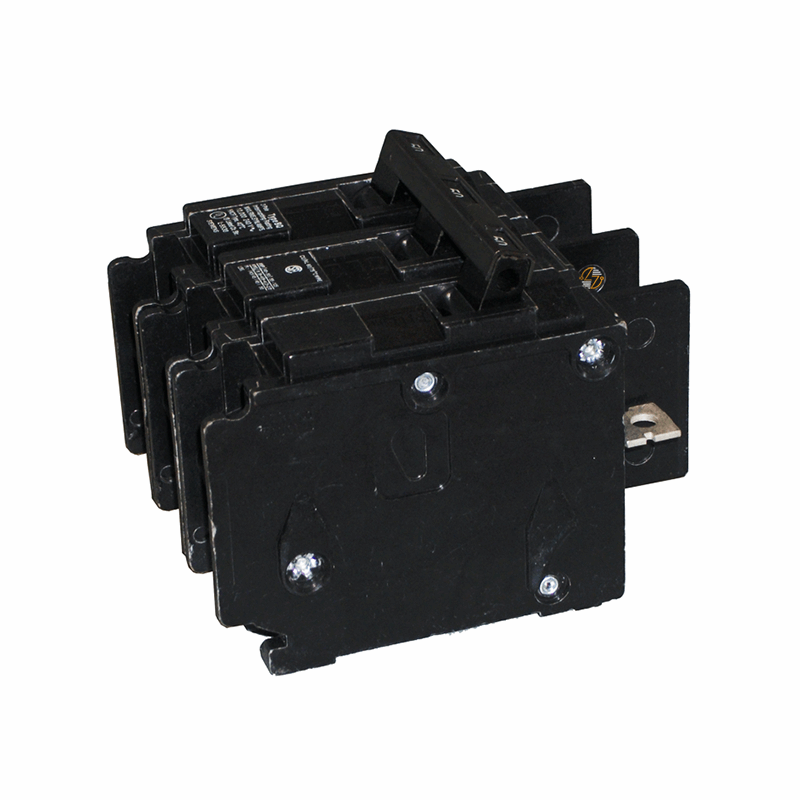

The Siemens BQ3B015 is a 15-amp, 3-pole circuit breaker designed for you to use in compatible Siemens Type BQ panelboards and electrical distribution equipment. Rated for 240 VAC, this breaker provides branch circuit protection for three-phase circuits and uses a common-trip mechanism that disconnects all three poles simultaneously when an overload or short circuit occurs. Its bolt-on design provides a secure connection within the panel, while the included load-side lugs help you simplify installation. With a 10 kAIC interrupting rating and UL 489 listing, the BQ3B015 is commonly used in commercial, industrial, and institutional electrical systems where 3-pole protection is required.

Key Features and Benefits

• Siemens Type BQ molded case circuit breaker
• 15 amp current rating
• 3-pole common-trip configuration
• Rated for 240 VAC systems
• 10 kAIC interrupting capacity
• Bolt-on mounting design
• Load-side lugs included
• Designed for branch circuit protection
• Compatible with Siemens Type BQ panelboards and distribution equipment
• UL 489 Listed

Technical Specifications

• Manufacturer: Siemens
• Catalog Number: BQ3B015
• Product Type: Molded Case Circuit Breaker
• Breaker Series: Type BQ
• Number of Poles: 3
• Amperage Rating: 15 Amps
• Voltage Rating: 240 VAC
• Interrupting Rating: 10 kAIC
• Trip Type: Common Trip
• Mounting Type: Bolt-On
• Electrical Connection Type: Bolt-On
• Load-Side Lugs: Included
• Application: Branch Circuit Protection
• Suitable For: Electrical Distribution Systems
• Width: 3 in.
• Height: 2 in.
• Depth: 4 in.
• Net Weight: 1.014 lbs.
• Country of Origin: Mexico

Material Compliance and Certifications

The Siemens BQ3B015 is manufactured for low-voltage electrical distribution and branch circuit protection applications.

• UL 489 Listed
• Suitable for electrical distribution applications
• Designed for branch circuit protection
• Rated for 240 VAC systems
• Manufactured for use in compatible Siemens Type BQ equipment

Where It Works Best

• The BQ3B015 is commonly installed in commercial buildings, manufacturing facilities, schools, warehouses, healthcare facilities, and other locations that utilize three-phase power. Typical applications include HVAC systems, motor control equipment, machinery, distribution panels, and control circuits requiring a 15-amp, 3-pole circuit breaker.
