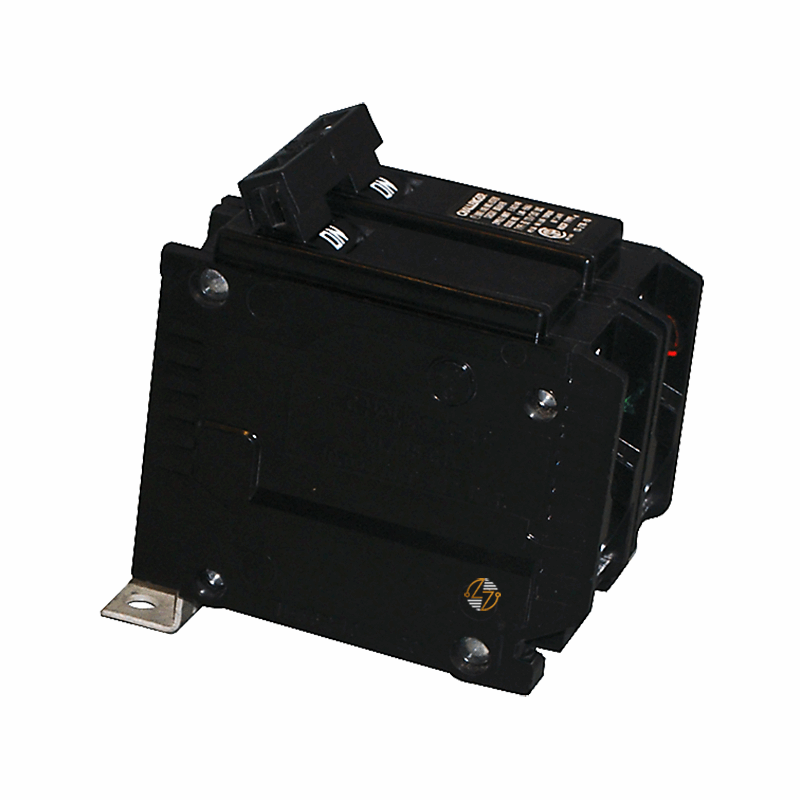

BQ2C100 - 100Amp Circuit Breaker

BQ2C100 - 100Amp Circuit Breaker

The Challenger BQ2C100 is a 2-pole, 100-amp molded case circuit breaker designed for use in compatible Type BQ panelboards and load centers. Rated for 120/240 VAC, it provides branch circuit protection for larger electrical loads and features a common-trip design that disconnects both poles during overload and short-circuit conditions.

In many installations, a 100-amp, 2-pole breaker is used for subpanel feeds, large HVAC equipment, electric heating systems, pumps, compressors, and other high-demand 240-volt applications. The bolt-on mounting design provides a secure connection within compatible panels, while the HACR rating allows use in heating, air conditioning, and refrigeration systems. Whether you're replacing a failed breaker or maintaining an existing Type BQ electrical system, the BQ2C100 offers the ratings and configuration needed to match the original equipment. Built to last, it remains a practical solution for keeping legacy electrical systems operating safely and efficiently.

Key Features and Benefits

• Challenger Type BQ molded case circuit breaker
• 100 amp current rating
• 2-pole common-trip configuration
• Rated for 120/240 VAC systems
• 10 kAIC interrupting capacity
• Bolt-on mounting design
• HACR rated
• Designed for branch circuit protection
• Compatible with Type BQ panelboards and load centers
• Commonly used for subpanels and dedicated 240-volt circuits


Technical Specifications

• Manufacturer: Challenger

• Catalog Number: BQ2C100

• Product Type: Molded Case Circuit Breaker

• Breaker Type: BQ

• Number of Poles: 2

• Current Rating: 100 Amps

• Voltage Rating: 120/240 VAC

• Interrupting Rating: 10 kAIC

• Trip Configuration: Common Trip

• Mounting Type: Bolt-On

• HACR Rated: Yes

• Operating Temperature: 40°C

• Dimensions:
  • Width: 2.00 in.
  • Height: 3.29 in.
  • Depth: 2.92 in.
  • Dimensions: 2.00"W × 3.29"H × 2.92"D
• Ship Weight: 2.25 lbs.


Material Compliance and Certifications

The Challenger BQ2C100 is manufactured for low-voltage electrical distribution and branch circuit protection applications.

• UL Listed
• HACR Rated
• Rated for 120/240 VAC electrical systems
• Suitable for residential and commercial applications
• Designed for use in compatible Type BQ equipment


Where It Works Best

• The BQ2C100 is commonly installed in residential homes, apartment buildings, commercial properties, workshops, agricultural facilities, and maintenance departments. Typical applications include subpanel feeds, large air conditioning systems, electric heating equipment, pumps, compressors, and other dedicated 120/240-volt circuits requiring a 100-amp, 2-pole circuit breaker.
