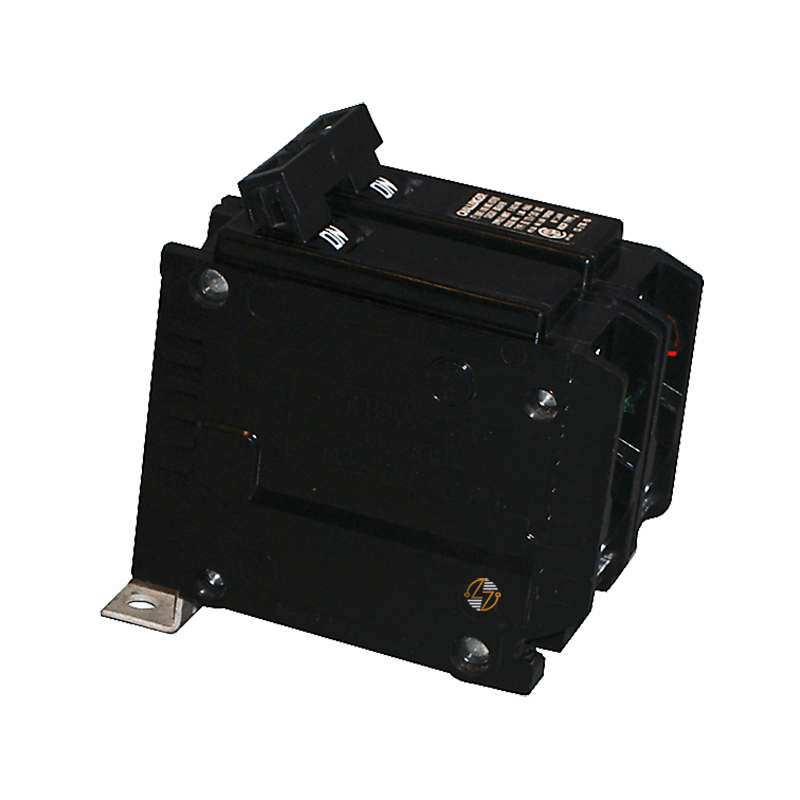

BQ2C070 - 70Amp Circuit Breaker

BQ2C070 - 70Amp Circuit Breaker

Keep your electrical circuits protected with the Challenger BQ2C070, a 2-pole, 70-amp circuit breaker designed for use in Type BQ panelboards and load centers. Rated for 120/240V systems, this breaker features a common-trip design that shuts off both poles simultaneously if an overload or short-circuit occurs, helping protect your circuits from potential damage. HACR-rated and designed to operate in 40°C environments, the BQ2C070 is built to last and serves as a reliable replacement for legacy Type BQ electrical systems. Typical applications include HVAC units, water heaters, pumps, compressors, and other 240-volt circuits in residential, commercial, and light industrial settings.

Key Features and Benefits

• 2-pole, 70A breaker for Type BQ equipment
• Common-trip for simultaneous pole protection
• Rated for 120/240V AC circuits
• 10 kAIC interrupting capacity
• Bolt-on mounting for secure installation
• HACR rated
• Load-side lugs included for easy connection
• Designed for branch circuit protection in legacy systems


Technical Specifications

• Manufacturer: Challenger

• Catalog Number: BQ2C070

• Poles: 2

• Current Rating: 70 Amps

• Voltage Rating: 120/240 VAC

• Interrupting Rating: 10 kAIC

• Trip Type: Common Trip

• Mounting: Bolt-On

• Operating Temperature: 40°C

• Dimensions: 2.00"W x 3.29"H x 2.92"D

• Ship Weight: 2.25 lbs


Material Compliance and Certifications

• UL Listed
• HACR Rated
• Suitable for low-voltage electrical distribution


Where It Works Best

• Perfect for homes, apartments, commercial buildings, workshops, and light industrial setups. Ideal for circuits powering HVAC systems, water heaters, compressors, pumps, and other 120/240V applications that need a 70-amp, 2-pole circuit breaker.
