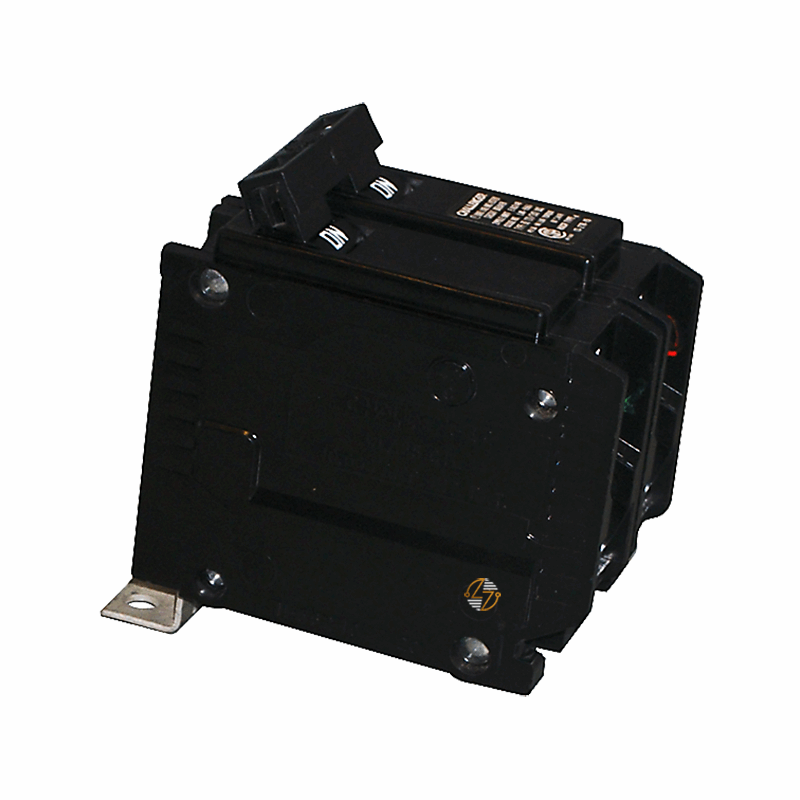

BQ2C040 - 40Amp Circuit Breaker

BQ2C040 - 40Amp Circuit Breaker

The Challenger BQ2C040 is a 2-pole, 40-amp molded case circuit breaker designed for you to use in compatible Type BQ panelboards and load centers. Rated for 120/240 VAC, it features a common-trip design that disconnects both poles during overload and short-circuit conditions.

A 40-amp, 2-pole breaker is commonly used on dedicated circuits serving air conditioners, heat pumps, water heaters, pumps, compressors, and other 240-volt equipment. The bolt-on mounting configuration provides a secure connection within the panel, while its HACR rating allows use in heating, air conditioning, and refrigeration applications. Designed to match the form, fit, and function of original Type BQ breakers, the BQ2C040 is a practical replacement for maintaining existing electrical systems. Built to last, it remains a dependable option for keeping your compatible equipment in service.

Key Features and Benefits

• Challenger Type BQ molded case circuit breaker

• 40 amp current rating

• 2-pole common-trip configuration

• Rated for 120/240 VAC systems

• 10 kAIC interrupting capacity

• Bolt-on mounting design

• HACR rated

• Designed for branch circuit protection

• Compatible with Type BQ panelboards and load centers

• Built for long-term use in existing electrical systems


Technical Specifications

• Manufacturer: Challenger

• Catalog Number: BQ2C040

• Product Type: Molded Case Circuit Breaker

• Breaker Type: BQ

• Number of Poles: 2

• Current Rating: 40 Amps

• Voltage Rating: 120/240 VAC

• Interrupting Rating: 10 kAIC

• Trip Configuration: Common Trip

• Mounting Type: Bolt-On

• HACR Rated: Yes

• Operating Temperature: 40°C

• Dimensions:
  • Width: 2.00 in.
  • Height: 3.29 in.
  • Depth: 2.92 in.
• Dimensions: 2.00"W × 3.29"H × 2.92"D

• Ship Weight: 2.25 lbs.


Material Compliance and Certifications

The Challenger BQ2C040 is manufactured for low-voltage electrical distribution and branch circuit protection applications.

• UL Listed
• HACR Rated
• Rated for 120/240 VAC electrical systems
• Suitable for residential and commercial electrical applications
• Designed for use in compatible Type BQ equipment


Where It Works Best

• The BQ2C040 is commonly installed in homes, apartment buildings, commercial properties, workshops, and maintenance facilities. Typical applications include air conditioning equipment, heat pumps, electric water heaters, pumps, compressors, and other dedicated 120/240-volt branch circuits requiring a 40-amp, 2-pole circuit breaker.
