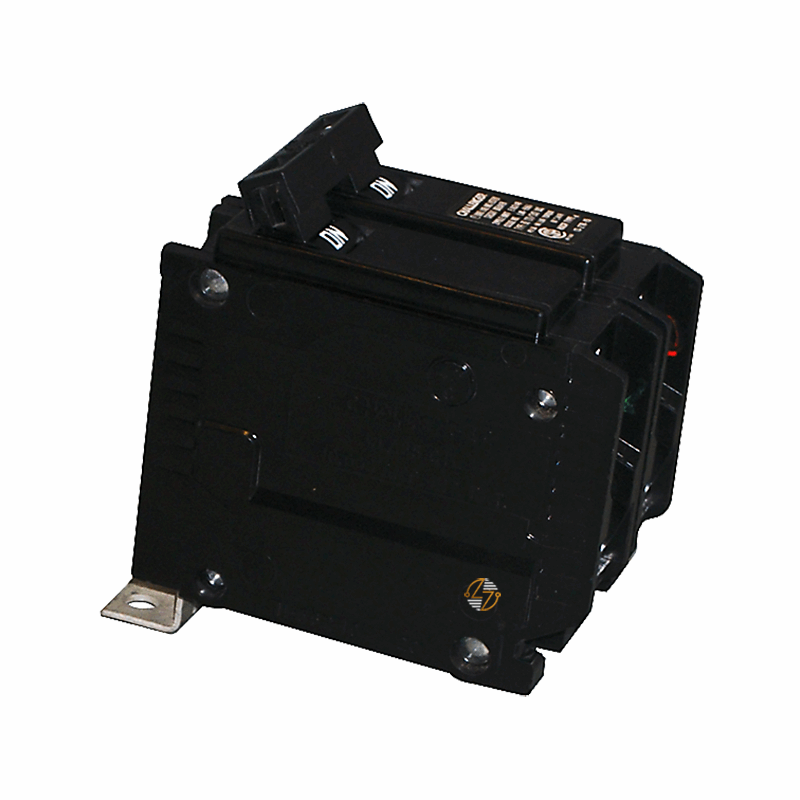

BQ2C015 - 15Amp Circuit Breaker

BQ2C015 - 15Amp Circuit Breaker

The Challenger BQ2C015 is a 15-amp, 2-pole molded case circuit breaker designed for you to use in Type BQ load centers and panelboards. Rated for 120/240 VAC, it features a common-trip design that disconnects both poles during overload and short-circuit conditions.

This breaker is commonly used for your branch circuits serving HVAC equipment, air conditioning systems, lighting circuits, receptacles, and other general electrical loads. The bolt-on mounting configuration provides a secure connection within compatible equipment, and its HACR rating makes it suitable for heating, air conditioning, and refrigeration applications. Built for long service life, the BQ2C015 remains a practical replacement option for maintaining existing Challenger electrical distribution systems.

Key Features and Benefits

• Challenger Type BQ molded case circuit breaker

• 15 amp current rating

• 2-pole common-trip configuration

• Rated for 120/240 VAC systems

• 10 kAIC interrupting capacity

• Bolt-on mounting design

• HACR rated

• Designed for branch circuit protection

• Compatible with Challenger Type BQ equipment

• Built for long-term service in electrical distribution applications


Technical Specifications

• Manufacturer: Challenger

• Part Number: BQ2C015

• Product Type: Molded Case Circuit Breaker

• Breaker Type: BQ

• Number of Poles: 2

• Current Rating: 15 Amps

• Voltage Rating: 120/240 VAC

• Interrupting Rating: 10 kAIC

• Trip Configuration: Common Trip

• Mounting Type: Bolt-On

• Operating Temperature: 40°C

• Dimensions:
  • Width: 2.00"
  • Height: 3.29"
  • Depth: 2.92"
• Ship Weight: 2.25 lbs.


Material Compliance and Certifications

The Challenger BQ2C015 is manufactured for low-voltage electrical distribution and branch circuit protection applications.

• HACR Rated

• UL Listed

• Rated for 120/240 VAC systems

• Suitable for residential and commercial electrical applications

• Designed for use in compatible Type BQ panelboards and load centers


Where It Works Best

• The BQ2C015 is commonly installed in residential properties, apartment buildings, small commercial facilities, workshops, and maintenance areas.
