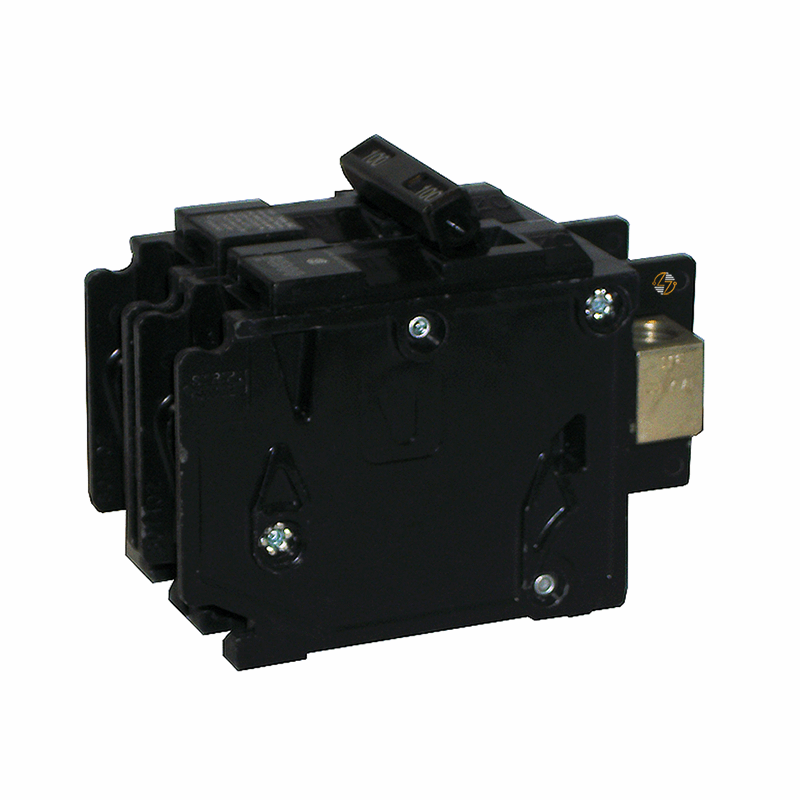

BQ2B100L - 100Amp Circuit Breaker

BQ2B100L - 100Amp Circuit Breaker

The Siemens BQ2B100L is a 100-amp, 2-pole molded case circuit breaker designed for 120/240V electrical distribution systems. It provides overcurrent protection for your branch circuits and feeder circuits and utilizes a common-trip mechanism that opens both poles during an overload or short-circuit condition. This breaker is part of Siemens' Type BQ product family and includes factory-installed line-side and load-side lugs.

The BQ2B100L features a bolt-on connection for installation in compatible Siemens panelboards and distribution equipment. Typical installations include HVAC equipment, distribution panels, feeder circuits, load centers, and other electrical systems requiring a 100-amp, 2-pole circuit breaker.

Line-side and load-side lugs are included as standard equipment, making this model suitable for applications where conductor terminations are required on both sides of the breaker.

Key Features and Benefits

• 100 amp continuous current rating
• 2-pole common-trip configuration
• Rated for 120/240 VAC systems
• 10 kA interrupting capacity (AIR)
• Bolt-on mounting design
• Factory-installed line-side lugs
• Factory-installed load-side lugs
• Molded case circuit breaker construction
• Suitable for branch and feeder circuit protection
• Designed for electrical distribution applications

Technical Specifications

• Catalog Number: BQ2B100L
• Manufacturer: Siemens
• Product Series: BQ
• Product Type: Molded Case Circuit Breaker
• Ampere Rating: 100 Amps
• Number of Poles: 2
• Trip Configuration: Common Trip
• Voltage Rating: 120/240 VAC
• Interrupting Rating (AIR): 10 kA
• Electrical Connection Type: Bolt-On
• Included Features: Line-Side and Load-Side Lugs
• Suitable For: Electrical Distribution
• Depth: 3 in.
• Width: 2 in.
• Height: 4 in.
• Net Weight: 0.29 kg
• Country of Origin: Mexico

Material Compliance and Certifications

• The Siemens BQ2B100L is UL 489 listed for use in low-voltage electrical distribution systems. It is manufactured to meet applicable industry standards for circuit breaker safety and performance when installed according to electrical code requirements and manufacturer specifications.

Where It Works Best

• The BQ2B100L is commonly installed in panelboards, load centers, feeder circuits, branch circuits, HVAC systems, and electrical distribution equipment.
