BQ2B100H - 100Amp Circuit Breaker

BQ2B100H - 100Amp Circuit Breaker

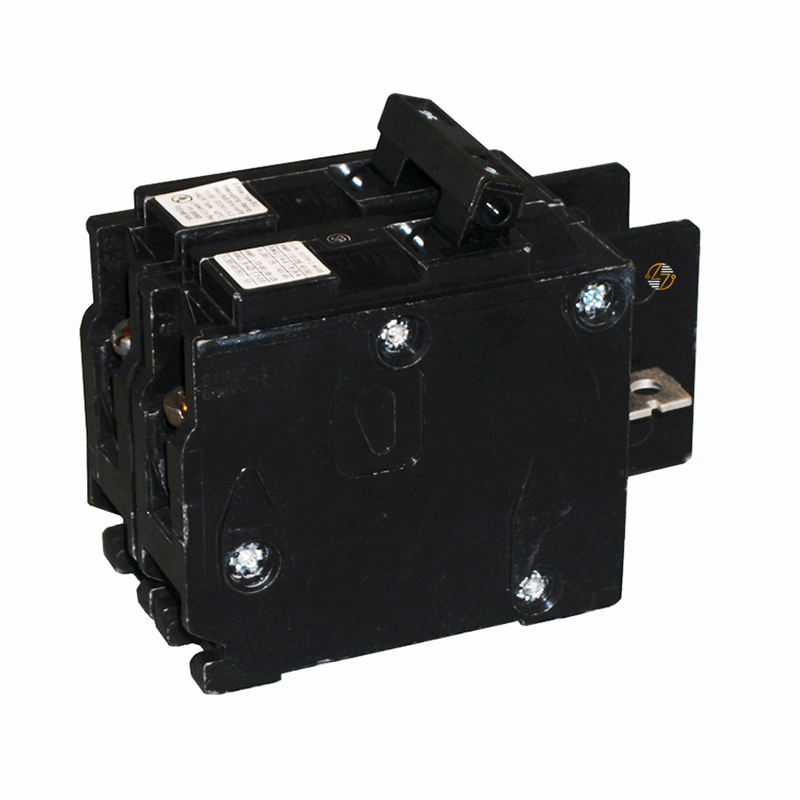

The Siemens BQ2B100H is a 100-amp, 2-pole molded case circuit breaker designed for you to use in 120/240V electrical distribution systems. It provides overcurrent protection for your branch and feeder circuits and utilizes a common-trip mechanism that opens both poles when a fault occurs. As part of the Siemens BQH series, this breaker is often specified for applications where a higher interrupting rating is required.

For contractors and maintenance personnel, the BQ2B100H is a familiar option when replacing existing Siemens breakers or completing new installations in compatible equipment. Its combination of a common-trip design, bolt-on mounting, and higher fault-current rating makes it suitable for a wide range of electrical distribution applications.

Key Features and Benefits

• 100 amp continuous current rating: 100 amp continuous current rating.
• 2-pole common-trip configuration: 2-pole common-trip configuration.
• Rated for 120/240 VAC systems: Rated for 120/240 VAC systems.
• 22 kA interrupting capacity: 22 kA interrupting capacity.
• Bolt-on mounting design: Bolt-on mounting design.
• Load-side lugs included: Load-side lugs included.
• Molded case circuit breaker construction: Molded case circuit breaker construction.
• Suitable for branch and feeder circuit protection: Suitable for branch and feeder circuit protection.
• Designed for electrical distribution applications: Designed for electrical distribution applications.


Technical Specifications

• Catalog Number: BQ2B100H

• Manufacturer: Siemens

• Product Series: BQH

• Product Type: Molded Case Circuit Breaker

• Ampere Rating: 100 Amps

• Number of Poles: 2

• Trip Configuration: Common Trip

• Voltage Rating: 120/240 VAC

• Interrupting Rating (AIR): 22 kA

• Electrical Connection Type: Bolt-On

• Included Features: Load Side Lugs

• Suitable For: Electrical Distribution

• Dimensions:
  • Width: 3 in.
  • Height: 2 in.
  • Depth: 4 in.
• Net Weight: 0.27 kg

• Country of Origin: Mexico


Material Compliance and Certifications

• Industry Standards: The Siemens BQ2B100H is UL 489 listed for use in low-voltage electrical distribution systems. It is manufactured to meet recognized industry requirements for circuit breaker safety and performance when installed in accordance with applicable codes and manufacturer specifications.
• UL Standards: UL 489 listed.


Where It Works Best

• The BQ2B100H is commonly installed in panelboards, load centers, feeder circuits, branch circuits, HVAC systems, and electrical distribution equipment.
