BQ2B100 - 100Amp Circuit Breaker

BQ2B100 - 100Amp Circuit Breaker

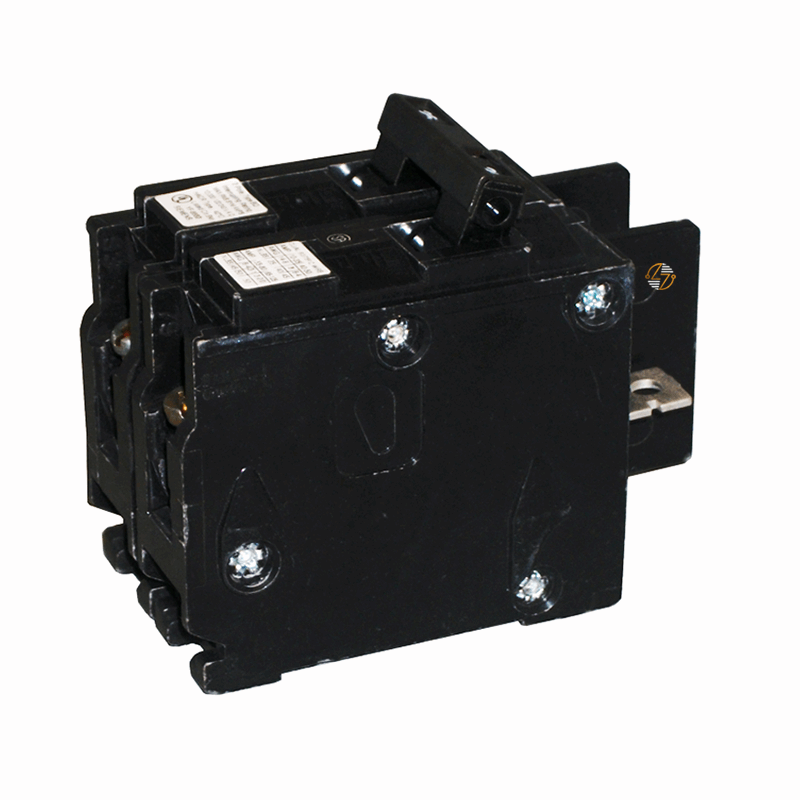

The Siemens BQ2B100 is a 100-amp, 2-pole molded case circuit breaker designed for use in 120/240V electrical distribution systems. It provides overcurrent protection for your branch and feeder circuits and features a common-trip mechanism that opens both poles during an overload or short-circuit condition. The breaker is part of Siemens' Type BQ product line and is commonly installed in panelboards, load centers, and distribution equipment requiring a 100-amp two-pole breaker.

This breaker utilizes a bolt-on connection and includes load-side lugs. With a 10 kA interrupting rating, the BQ2B100 is suitable for a wide range of electrical distribution applications found in commercial buildings, multifamily properties, schools, office facilities, retail spaces, and light industrial environments.

Key Features and Benefits

• 100 amp continuous current rating: 100 amp continuous current rating.
• 2-pole common-trip configuration: 2-pole common-trip configuration.
• Rated for 120/240 VAC systems: Rated for 120/240 VAC systems.
• 10 kA interrupting capacity: 10 kA interrupting capacity.
• Bolt-on mounting design: Bolt-on mounting design.
• Load-side lugs included: Load-side lugs included.
• Molded case circuit breaker construction: Molded case circuit breaker construction.
• Suitable for branch and feeder circuit protection: Suitable for branch and feeder circuit protection.
• Designed for electrical distribution applications: Designed for electrical distribution applications.


Technical Specifications

• Catalog Number: BQ2B100

• Manufacturer: Siemens

• Product Series: BQ

• Product Type: Molded Case Circuit Breaker

• Ampere Rating: 100 Amps

• Number of Poles: 2

• Trip Configuration: Common Trip

• Voltage Rating: 120/240 VAC

• Interrupting Rating (AIR): 10 kA

• Electrical Connection Type: Bolt-On

• Included Features: Load Side Lugs

• Suitable For: Electrical Distribution

• Dimensions:
  • Width: 5 in.
  • Height: 3.8 in.
  • Depth: 13 in.
• Net Weight: 0.29 kg

• Country of Origin: Mexico


Material Compliance and Certifications

• Industry Standards: The Siemens BQ2B100 is UL 489 listed for use in low-voltage electrical distribution systems. It is manufactured to meet recognized industry requirements for circuit breaker safety and performance when installed according to applicable codes and manufacturer specifications.
• UL Standards: UL 489 listed.


Where It Works Best

• The BQ2B100 is commonly used in panelboards, load centers, feeder circuits, branch circuits, HVAC systems, and electrical distribution equipment. Typical installations include office buildings, retail centers, apartment complexes, schools, warehouses, and light industrial facilities where 100-amp circuit protection is required.
