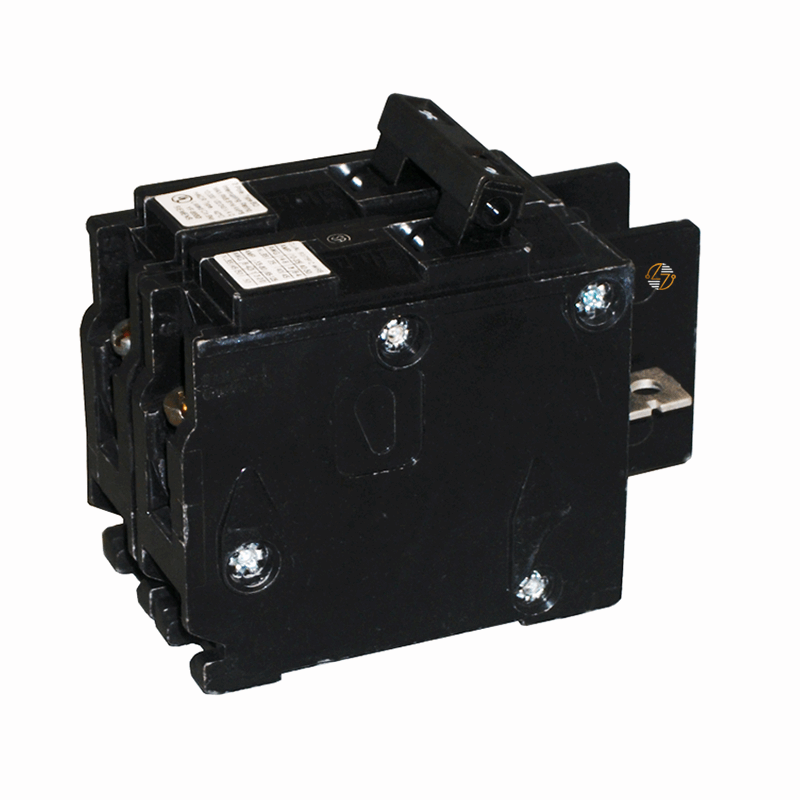

BQ2B090H - 90Amp Circuit Breaker

BQ2B090H - 90Amp Circuit Breaker

The Siemens BQ2B090H is a 90-amp, 2-pole molded case circuit breaker designed for your 120/240V electrical distribution systems. It provides you with overcurrent protection for branch and feeder circuits and features a common-trip mechanism that opens both poles during a fault condition. The breaker is part of Siemens' BQH series and is rated for applications where a higher interrupting capacity is required.

This breaker includes load-side lugs and utilizes a bolt-on connection for installation in compatible panelboards and distribution equipment. With a 22 kA interrupting rating, the BQ2B090H is often specified for commercial facilities, multifamily properties, schools, office buildings, retail spaces, and light industrial environments. It is also used in HVAC equipment, feeder circuits, and other electrical distribution applications that require a 90-amp, 2-pole circuit breaker.

Key Features and Benefits

• 90 amp continuous current rating: 90 amp continuous current rating.
• 2-pole common-trip configuration: 2-pole common-trip configuration.
• Rated for 120/240 VAC electrical systems: Rated for 120/240 VAC electrical systems.
• 22 kA interrupting capacity: 22 kA interrupting capacity.
• Bolt-on mounting design: Bolt-on mounting design.
• Load-side lugs included: Load-side lugs included.
• Compact molded case construction: Compact molded case construction.
• Suitable for branch and feeder circuit protection: Suitable for branch and feeder circuit protection.


Technical Specifications

• Catalog Number: BQ2B090H

• Manufacturer: Siemens

• Product Series: BQH

• Product Type: Molded Case Circuit Breaker

• Ampere Rating: 90 Amps

• Number of Poles: 2

• Trip Configuration: Common Trip

• Voltage Rating: 120/240 VAC

• Interrupting Rating (AIR): 22 kA

• Electrical Connection Type: Bolt-On

• Included Features: Load Side Lugs

• Suitable For: Electrical Distribution

• Dimensions:
  • Width: 3 in.
  • Height: 2 in.
  • Depth: 4 in.
• Net Weight: 0.32 kg

• Country of Origin: Mexico


Material Compliance and Certifications

• Industry Standards: The Siemens BQ2B090H is UL 489 listed and manufactured for use in low-voltage electrical distribution systems. It is designed to meet established industry requirements for circuit breaker safety and performance when properly installed and applied.
• UL Standards: UL 489 listed.


Where It Works Best

• The BQ2B090H is commonly installed in panelboards, load centers, feeder circuits, branch circuits, HVAC systems, and electrical distribution equipment.
