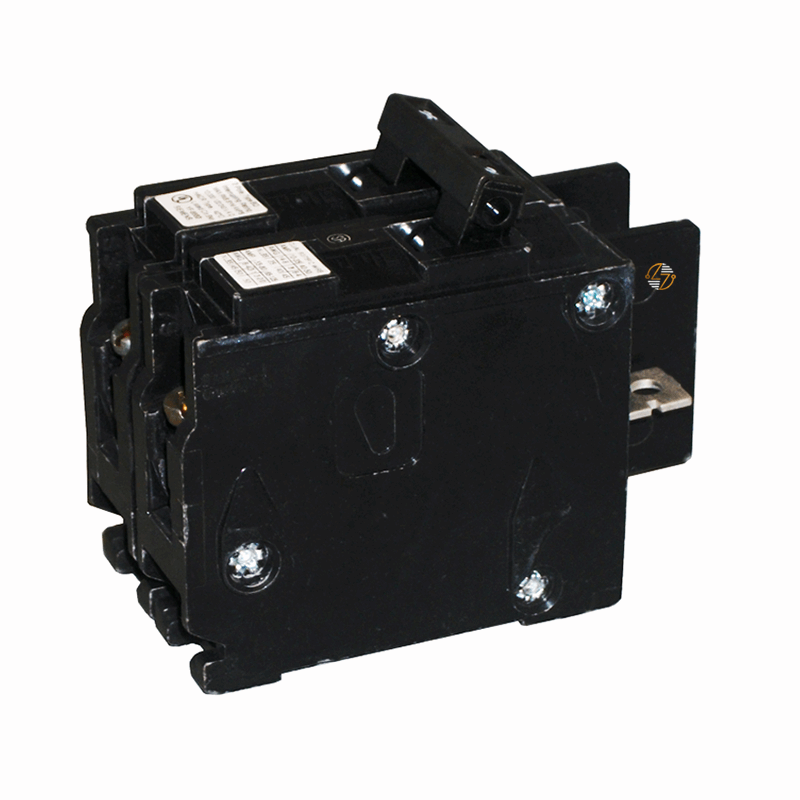

BQ2B080H - 80Amp Circuit Breaker

BQ2B080H - 80Amp Circuit Breaker

The Siemens BQ2B080H is an 80-amp, 2-pole molded case circuit breaker designed for use in 120/240V electrical distribution systems. It provides overcurrent protection for your wiring, equipment, and connected loads by helping prevent damage caused by overloads and short circuits. The common-trip mechanism disconnects both poles simultaneously during a fault, making it suitable for applications that require reliable two-pole protection.

Part of the Siemens BQH breaker series, the BQ2B080H features a bolt-on connection and includes load-side lugs to simplify installation. Its 22 kA interrupting rating allows it to be applied in systems with higher available fault current, while the compact design makes it a practical choice for your panelboards, load centers, and other distribution equipment where space is limited.

Key Features and Benefits

• 80 amp continuous current rating: 80 amp continuous current rating
• 2-pole common-trip configuration: 2-pole common-trip configuration
• Rated for 120/240 VAC electrical systems: Rated for 120/240 VAC electrical systems
• 22 kA interrupting capacity: 22 kA interrupting capacity
• Bolt-on mounting design: Bolt-on mounting design
• Load-side lugs included: Load-side lugs included
• Compact molded case construction: Compact molded case construction


Technical Specifications

• Catalog Number: BQ2B080H

• Manufacturer: Siemens

• Product Series: BQH

• Product Type: Molded Case Circuit Breaker

• Ampere Rating: 80 Amps

• Number of Poles: 2

• Trip Configuration: Common Trip

• Voltage Rating: 120/240 VAC

• Interrupting Rating (AIR): 22 kA

• Electrical Connection Type: Bolt-On

• Included Features: Load Side Lugs

• Suitable For: Electrical Distribution

• Dimensions:
  • Width: 3 in.
  • Height: 2 in.
  • Depth: 4 in.
• Net Weight: 0.32 kg

• Country of Origin: Mexico


Material Compliance and Certifications

• Industry Standards: The Siemens BQ2B080H is UL 489 listed and manufactured for use in low-voltage electrical distribution systems. It is designed to meet established industry standards for circuit breaker safety and performance when properly installed and applied.
• UL Standards: UL 489 listed.


Where It Works Best

• The BQ2B080H is commonly installed in panelboards, load centers, distribution equipment, HVAC systems, feeder circuits, and branch circuits.
