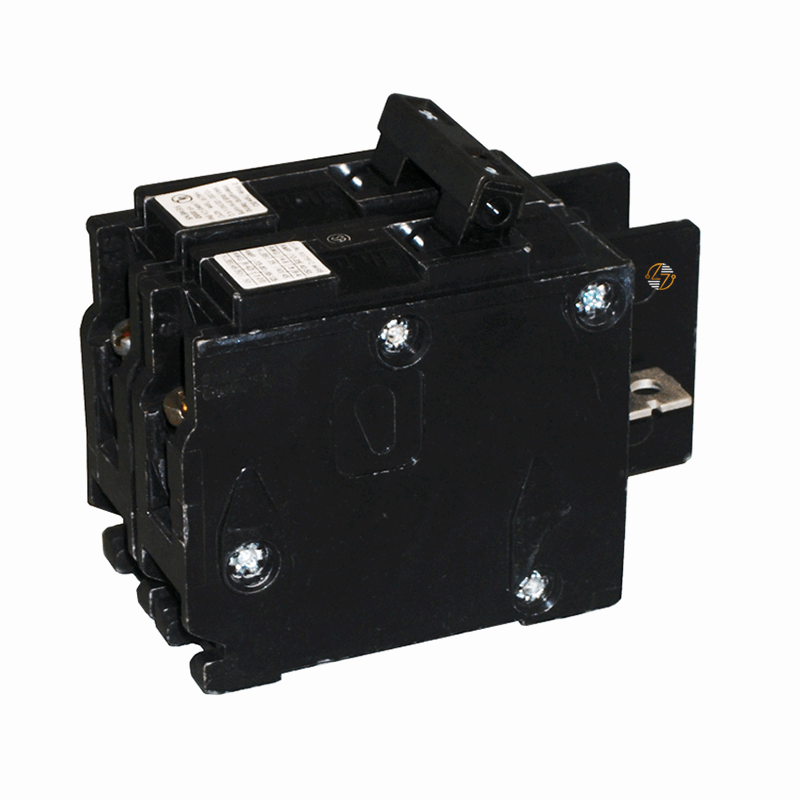

BQ2B080 - 80Amp Circuit Breaker

BQ2B080 - 80Amp Circuit Breaker

The Siemens BQ2B080 is an 80-amp, 2-pole molded case circuit breaker designed for 120/240V electrical distribution systems. It helps protect wiring, equipment, and connected loads from overloads and short circuits while providing the reliable performance expected in residential, commercial, and light industrial installations. The common-trip design disconnects both poles simultaneously during a fault, helping maintain system safety and proper circuit protection.

Part of Siemens' BQ breaker family, the BQ2B080 features a bolt-on connection and includes load-side lugs for straightforward installation. Its compact footprint allows it to fit comfortably in panelboards and distribution equipment where space may be limited. With a 10 kA interrupting rating, this breaker is suitable for a variety of branch and feeder circuit applications.

Whether you're replacing an existing breaker, upgrading a panel, or completing a new installation, the BQ2B080 provides dependable overcurrent protection for everyday electrical distribution needs. It is commonly used in offices, retail buildings, apartment complexes, schools, HVAC systems, and light industrial facilities where consistent circuit protection is essential.

Key Features and Benefits

• 80 amp continuous current rating: Provides branch and feeder circuit protection.
• 2-pole common-trip design: Disconnects both poles during fault conditions.
• Rated for 120/240VAC electrical systems
• 10 kA interrupting rating: Protects against short-circuit events.
• Bolt-on mounting design: Provides a secure electrical connection.
• Load-side lugs included: Simplifies installation.
• Compact molded case construction: Helps conserve panel space.
• Suitable for residential, commercial, and light industrial applications

Technical Specifications

• Catalog Number: BQ2B080
• Manufacturer: Siemens
• Product Series: BQ
• Product Type: Molded Case Circuit Breaker
• Circuit Breaker Design: BQ
• Ampere Rating: 80 Amps
• Number of Poles: 2
• Trip Configuration: Common Trip
• Voltage Rating: 120/240 VAC
• Interrupting Rating (AIR): 10 kA
• Electrical Connection Type: Bolt-On
• Included Features: Load Side Lugs
• Suitable For: Electrical Distribution
• Depth: 3 in.
• Width: 2 in.
• Height: 4 in.
• Net Weight: 0.33 kg
• Country of Origin: Mexico

Material Compliance and Certifications

• The Siemens BQ2B080 is UL 489 listed and manufactured for use in low-voltage electrical distribution systems. It is designed to meet established industry standards for circuit breaker safety and performance when properly installed and applied.

Where It Works Best

• The BQ2B080 is commonly installed in panelboards, load centers, distribution equipment, HVAC systems, feeder circuits, and branch circuits.
