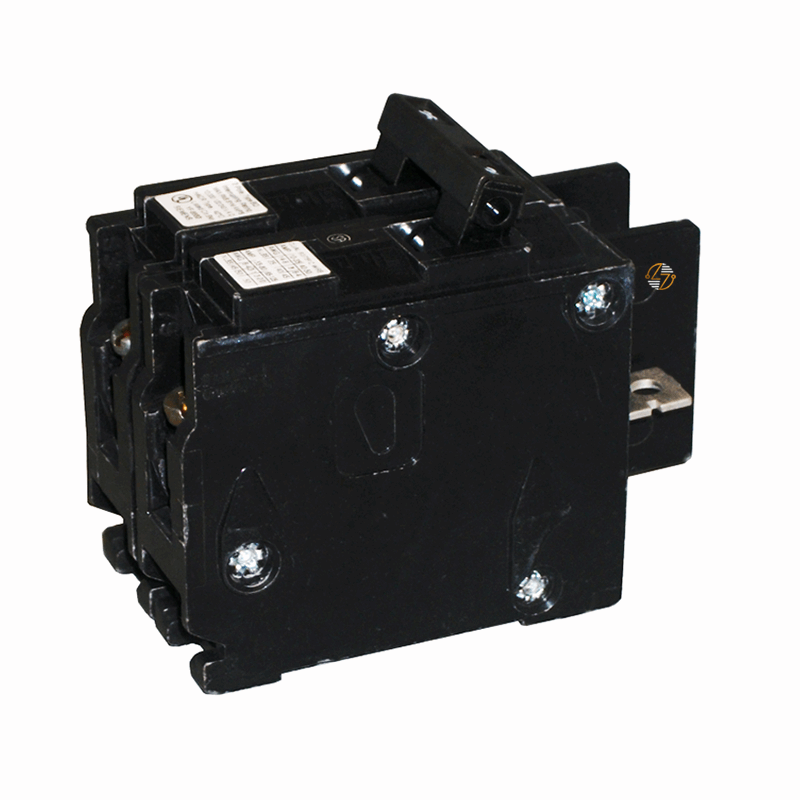

BQ2B060 - 60Amp Circuit Breaker

BQ2B060 - 60Amp Circuit Breaker

Protect your circuits with confidence using the Siemens BQ2B060, a 2-pole, 60-amp thermal magnetic breaker built for Type BQ load centers and panelboards. The bolt-on design ensures a secure fit, and included load-side lugs simplify installation. Rated for 10 kAIC and UL 489 listed, this breaker is ideal for residential, commercial, and light industrial setups, keeping HVAC units, water heaters, pumps, compressors, and other 120/240V circuits protected and running smoothly.

Key Features and Benefits

• 2-pole, 60A thermal magnetic breaker: 2-pole, 60A thermal magnetic breaker.
• Common-trip for simultaneous pole protection: Common-trip for simultaneous pole protection.
• Rated for 120/240V AC: Rated for 120/240V AC.
• 10 kAIC interrupting capacity: 10 kAIC interrupting capacity.
• Bolt-on mounting for a secure installation: Bolt-on mounting for a secure installation.
• Load-side lugs included for easy wiring: Load-side lugs included for easy wiring.
• Type BQ molded case construction: Type BQ molded case construction.


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: BQ2B060

• Number of Poles: 2

• Continuous Current Rating: 60A

• Voltage Rating: 120/240 VAC

• Interrupting Rating: 10 kAIC

• Trip Type: Common Trip

• Connection Type: Bolt-On

• Load-Side Lugs: Included

• Dimensions:
  • Depth: 4 in
  • Width: 3 in
  • Height: 2 in
• Net Weight: 0.32 kg

• Country of Origin: Mexico


Material Compliance and Certifications

• UL Standards: UL 489 Listed for branch circuit protection.


Where It Works Best

• Perfect for residential panels, commercial properties, workshops, and light industrial environments. Ideal for protecting critical 120/240V circuits powering HVAC systems, water heaters, pumps, compressors, and other essential electrical loads.
