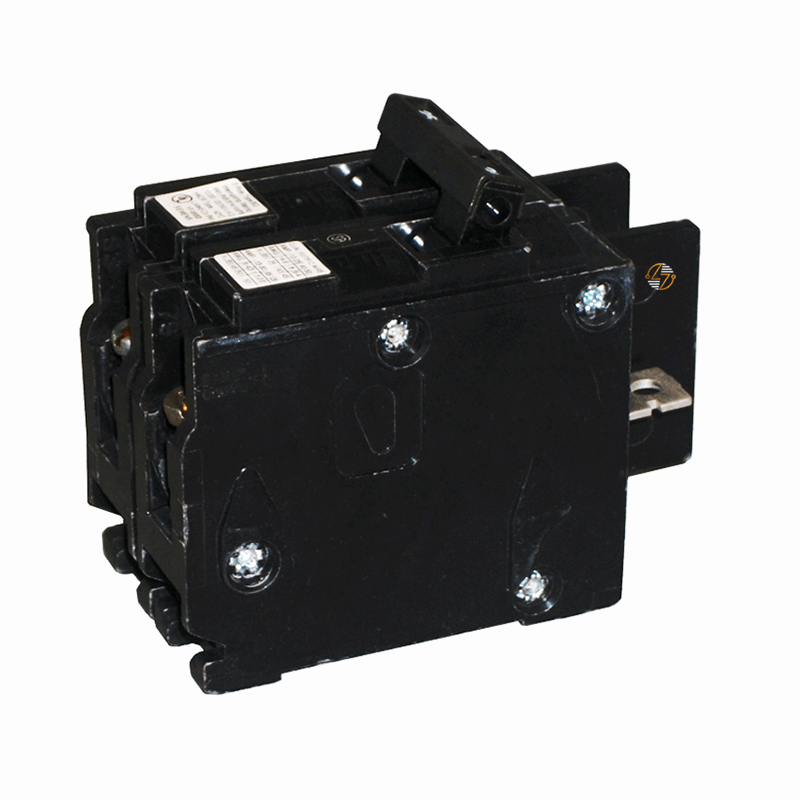

BQ2B050H - 50Amp Circuit Breaker

BQ2B050H - 50Amp Circuit Breaker

The Siemens BQ2B050H is a 50 amp, 2-pole circuit breaker designed for you to use in Siemens Type BQH panelboards and electrical distribution equipment. Rated for 120/240 VAC, it uses a common-trip thermal magnetic mechanism that disconnects both poles during overload or short-circuit conditions.

Its 22 kAIC interrupting rating makes it suitable for your systems with higher available fault current than standard 10 kA breakers. The bolt-on configuration mounts directly into compatible Siemens equipment, and load-side lugs are included. A 50 amp, 2-pole breaker is commonly used for HVAC equipment, electric water heaters, pumps, compressors, machinery, and other dedicated 240-volt loads. The BQ2B050H is UL 489 Listed for branch circuit protection and is used in residential, commercial, and industrial electrical systems.

Key Features and Benefits

• Siemens Type BQH Molded Case Circuit Breaker: Designed for use in compatible Siemens Type BQH panelboards and electrical distribution equipment.
• 50 Amp Continuous Current Rating: Suitable for branch circuits requiring 50 amp overcurrent protection.
• 2-Pole Common-Trip Configuration: Disconnects both poles during overload or short-circuit conditions.
• Rated for 120/240 VAC Electrical Systems: Compatible with standard electrical distribution systems.
• Thermal Magnetic Trip Mechanism: Provides protection against overloads and short circuits.
• 22 kAIC Interrupting Capacity: Suitable for systems with higher available fault current than standard 10 kA breakers.
• Bolt-On Mounting Design: Mounts directly into compatible Siemens equipment.
• Load-Side Lugs Included: Ready for installation and wiring connection.
• Designed for Branch Circuit Protection: Suitable for electrical distribution applications.
• Compatible with Approved Siemens Type BQ Panelboards and Distribution Equipment: Intended for installation in approved Siemens electrical equipment.
• UL 489 Listed: Certified for branch circuit protection applications.


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: BQ2B050H

• Product Type: Thermal Magnetic Circuit Breaker

• Breaker Family: BQH

• Number of Poles: 2

• Amperage Rating: 50 Amps

• Voltage Rating: 120/240 VAC

• Interrupting Rating: 22 kAIC

• Trip Type: Common Trip

• Mounting Type: Bolt-On

• Electrical Connection: Bolt-On

• Load-Side Lugs: Included

• Dimensions:
  • Width: 2 Inches
  • Height: 4 Inches
  • Depth: 3 Inches
• Net Weight: 0.27 kg

• Country of Origin: Mexico


Material Compliance and Certifications

• Industry Standards: The Siemens BQ2B050H is UL 489 Listed for branch circuit protection and is manufactured for low-voltage electrical distribution applications.
• UL 489 Listed: Certified for branch circuit protection applications.
• Export Classification: EAR99
• Dangerous Goods Classification: No
• WEEE Take-Back Obligation: No
• REACH Article 33 Information: Available from Manufacturer


Where It Works Best

• The BQ2B050H is found in residential service panels, commercial buildings, warehouses, manufacturing facilities, schools, and maintenance operations. Common installations include HVAC systems, electric water heaters, pumps, compressors, motor circuits, and other 120/240-volt branch circuits requiring a 50 amp, 2-pole breaker with a 22 kAIC interrupting rating.
