BQ2B035 - 35Amp Circuit Breaker

BQ2B035 - 35Amp Circuit Breaker

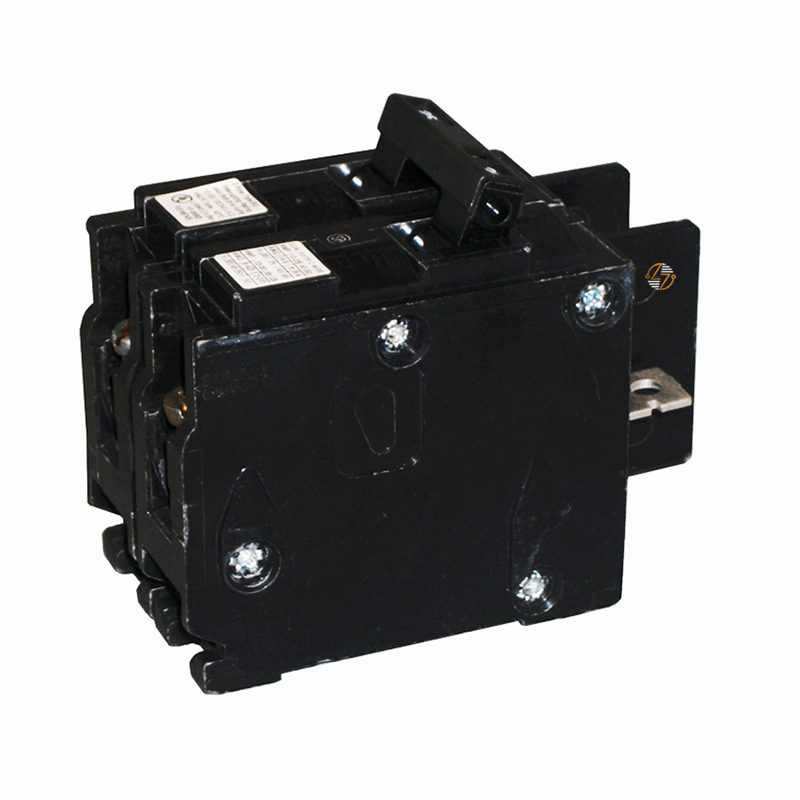

The Siemens BQ2B035 is a 35 amp, 2-pole circuit breaker designed for you to use in compatible Siemens Type BQ load centers and panelboards. Rated for 120/240 VAC, it provides overcurrent protection for your branch circuits serving residential, commercial, and light industrial electrical systems. The common-trip design disconnects both poles during overload or short-circuit conditions and is commonly used on 240-volt circuits and other applications requiring two-pole protection.

This breaker features a bolt-on connection and includes load-side lugs. Typical applications include air conditioning equipment, heat pumps, electric water heaters, pumps, compressors, workshop machinery, and other dedicated electrical loads that require a 35 amp circuit breaker. With a 10 kA interrupting rating and UL 489 listing, the BQ2B035 is designed for installation in compatible Siemens electrical distribution equipment.

Key Features and Benefits

• Siemens Type BQ Circuit Breaker: Designed for installation in compatible Siemens Type BQ load centers and panelboards.
• 35 Amp Current Rating: Suitable for branch circuits requiring 35 amp overcurrent protection.
• 2-Pole Common-Trip Configuration: Disconnects both poles during overload or short-circuit conditions.
• Rated for 120/240 VAC Systems: Compatible with residential, commercial, and light industrial electrical systems.
• 10 kAIC Interrupting Capacity: Provides reliable fault interruption capability.
• Bolt-On Mounting Design: Enables secure installation.
• Load-Side Lugs Included: Ready for wiring connection during installation.
• Thermal Magnetic Protection: Provides protection against overloads and short circuits.
• Suitable for Branch Circuit Protection: Designed for a variety of electrical distribution applications.
• UL 489 Listed: Certified for branch circuit protection applications.


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: BQ2B035

• UPC: 783643161207

• Product Series: BQ

• Number of Poles: 2

• Current Rating: 35 Amps

• Voltage Rating: 120/240 VAC

• Interrupting Capacity: 10 kAIC

• Connection Type: Bolt-On

• Trip Type: Common Trip

• Load-Side Lugs: Included

• Application: Electrical Distribution

• Dimensions:
  • Depth: 4 in.
  • Width: 3 in.
  • Height: 2 in.
• Net Weight: 0.25 kg

• Country of Origin: Mexico


Material Compliance and Certifications

• Industry Standards: The Siemens BQ2B035 is manufactured for low-voltage electrical distribution applications and meets recognized industry standards for molded case circuit breakers.
• UL 489 Listed: Certified for branch circuit protection applications.
• Export Classification: EAR99
• Dangerous Goods Classification: No
• WEEE Take-Back Obligations: No


Where It Works Best

• The BQ2B035 is commonly installed in residential service equipment, commercial buildings, workshops, retail facilities, and light industrial applications. It is frequently used on air conditioning systems, heat pumps, water heaters, compressors, pumps, and other branch circuits requiring 35 amp, 2-pole protection.
