BQ2B030H - 30Amp Circuit Breaker

BQ2B030H - 30Amp Circuit Breaker

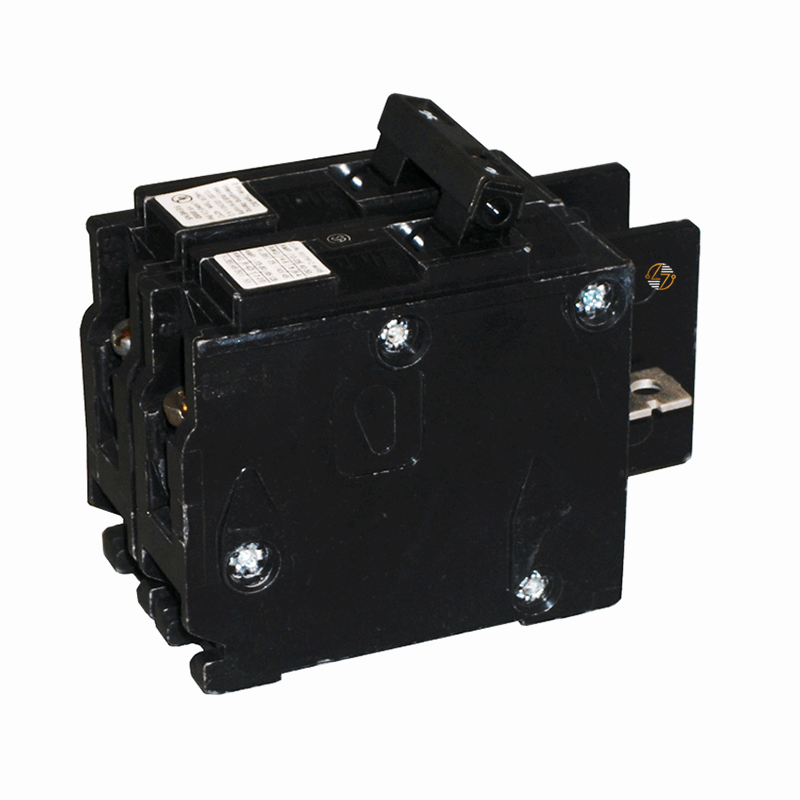

The Siemens BQ2B030H is a 2-pole, 30-amp thermal magnetic circuit breaker designed for you to use in Type BQH loadcenters. The common-trip mechanism disconnects both poles during overload and short-circuit conditions. Rated for 120/240 VAC with a 22 kAIC interrupting capacity, this breaker is used in residential, commercial, and light industrial electrical distribution systems.

The BQ2B030H features a bolt-on connection and includes load-side lugs. Common applications include HVAC equipment, air conditioning systems, water heaters, small motors, dedicated appliance circuits, and other branch circuits requiring a 30-amp two-pole breaker. Its molded case construction is intended for installation in compatible Siemens electrical equipment.

Key Features and Benefits

• 2-Pole Thermal Magnetic Circuit Breaker: Provides protection against overload and short-circuit conditions.
• 30A Continuous Current Rating: Suitable for branch circuits requiring 30-amp protection.
• Common-Trip Operation: Disconnects both poles during overload and short-circuit conditions.
• Rated for 120/240 VAC Systems: Compatible with residential, commercial, and light industrial electrical distribution systems.
• 22 kAIC Interrupting Capacity: Provides reliable fault interruption capability.
• Bolt-On Connection: Enables secure installation.
• Load-Side Lugs Included: Ready for wiring connection during installation.
• Type BQH Molded Case Construction: Designed for installation in compatible Siemens electrical equipment.
• UL 489 Listed: Certified for branch circuit protection applications.


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: BQ2B030H

• MPN: BQ2B030H

• UPC: 783643161603

• Product Type: Thermal Magnetic Circuit Breaker

• Circuit Breaker Type: BQH

• Number of Poles: 2

• Current Rating: 30 Amps

• Voltage Rating: 120/240 VAC

• Interrupting Capacity: 22 kAIC

• Trip Configuration: Common Trip

• Electrical Connection: Bolt-On

• Load-Side Lugs: Included

• Dimensions:
  • Depth: 3 in.
  • Width: 2 in.
  • Height: 4 in.
• Net Weight: 0.28 kg

• Country of Origin: Mexico


Material Compliance and Certifications

• UL 489 Listed: The Siemens BQ2B030H is UL 489 Listed for branch circuit protection and is manufactured for low-voltage electrical distribution applications.


Where It Works Best

• The BQ2B030H is commonly installed in residential service equipment, apartment buildings, office spaces, retail locations, workshops, and light commercial facilities. Typical applications include air conditioning systems, water heaters, dedicated appliance circuits, HVAC equipment, small motors, and other branch circuits requiring 30-amp two-pole protection.
