BQ2B030 - 30Amp Circuit Breaker

BQ2B030 - 30Amp Circuit Breaker

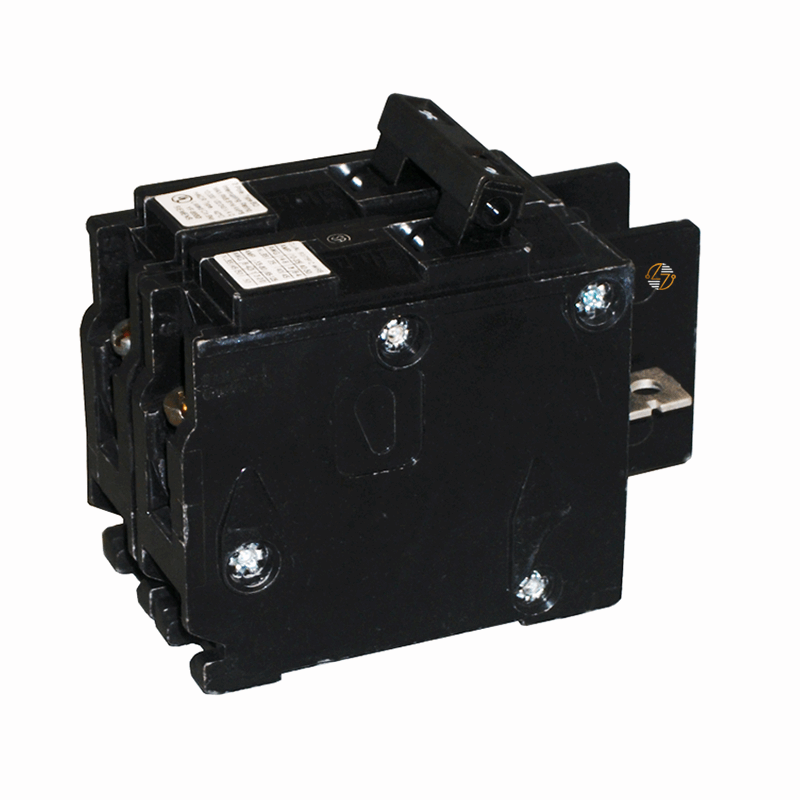

The Siemens BQ2B030 is a 2-pole, 30-amp thermal magnetic circuit breaker for your Type BQ electrical distribution equipment. The common-trip design opens both poles during overload and short-circuit conditions. Rated for 120/240 VAC with a 10 kAIC interrupting capacity, this breaker is used for branch circuit protection in residential, commercial, and light industrial applications.

The BQ2B030 features a bolt-on connection and includes load-side lugs. Common installations include air conditioning equipment, water heaters, small motors, workshop equipment, dedicated appliance circuits, and other loads requiring a 30-amp two-pole breaker. Its molded case construction is intended for use in compatible Siemens loadcenters and panelboards.

Key Features and Benefits

• 2-Pole Common-Trip Circuit Breaker: Provides protection against overload and short-circuit conditions.
• 30A Continuous Current Rating: Suitable for branch circuits requiring 30-amp protection.
• Thermal Magnetic Trip Mechanism: Responds to overloads and short circuits.
• Rated for 120/240 VAC Systems: Compatible with standard residential, commercial, and light industrial electrical systems.
• 10 kAIC Interrupting Capacity: Provides reliable fault interruption capability.
• Bolt-On Connection: Enables secure installation.
• Load-Side Lugs Included: Ready for wiring connection during installation.
• Type BQ Molded Case Design: Designed for installation in compatible Siemens loadcenters and panelboards.
• UL 489 Listed: Certified for branch circuit protection applications.


Technical Specifications

• Manufacturer: Siemens

• Catalog Number: BQ2B030

• MPN: BQ2B030

• UPC: 783643102422

• Product Type: Thermal Magnetic Circuit Breaker

• Circuit Breaker Type: BQ

• Number of Poles: 2

• Current Rating: 30 Amps

• Voltage Rating: 120/240 VAC

• Interrupting Capacity: 10 kAIC

• Trip Configuration: Common Trip

• Electrical Connection: Bolt-On

• Load-Side Lugs: Included

• Application: Electrical Distribution

• Dimensions:
  • Depth: 4 in.
  • Width: 3 in.
  • Height: 2 in.
• Net Weight: 0.28 kg

• Country of Origin: Mexico


Material Compliance and Certifications

• UL 489 Listed: The Siemens BQ2B030 is UL 489 Listed for branch circuit protection applications and is manufactured for use in low-voltage electrical distribution systems.


Where It Works Best

• The BQ2B030 is commonly installed in residential service equipment, apartment buildings, offices, retail locations, workshops, and light commercial facilities. Typical applications include air conditioning systems, water heaters, dedicated appliance circuits, small motors, workshop equipment, and other branch circuits requiring 30-amp two-pole protection.
