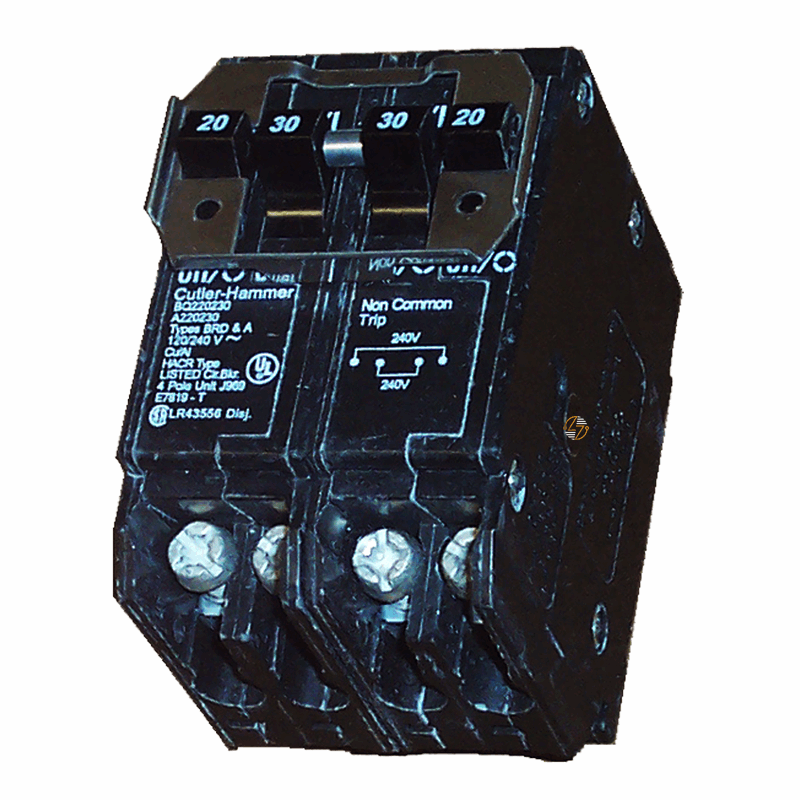

The Eaton BQ250250 BR Thermal Magnetic Circuit Breaker is a compact, reliable solution designed for residential and commercial electrical systems. Part of Eaton’s BQ series, this 1-inch quadplex plug-on circuit breaker is tailored for Type BR loadcenters, featuring a rejection tab to prevent incorrect installation. Rated at 50 amps per two-pole set and 120/240V, this four-pole breaker provides independent trip functionality, ensuring protection across connected circuits. With an interrupt rating of 10 kAIC, it offers dependable protection against overloads and short circuits, making it an ideal choice for diverse electrical applications.

Key Features and Benefits:

• Independent Trip Functionality: Each two-pole circuit operates independently, providing targeted protection for multiple connected circuits.
• Compact Design: Quadplex design with four poles in a compact footprint, optimizing space in electrical panels.
• HACR Rated: Suitable for heating, air conditioning, and refrigeration applications, providing versatility in residential and commercial setups.
• Rejection Tab Feature: Ensures proper installation, preventing placement in non-compatible loadcenters.

Technical Specifications:

• Amperage Rating: Two sets of two-pole 50A
• Voltage Rating: 120/240V
• Interrupt Rating: 10 kAIC
• Poles: 4-Pole
• Mounting Method: Plug-on
• Used With: Type BR Loadcenters
• Wire Size: #14-4 AWG Cu/Al
• Dimensions: 3" L x 2" W x 3" H
• Weight: 0.9 lbs

Material Compliance and Certifications:

• Certifications: UL 489 Certified
• Federal Specifications: Classified under W-C375, ensuring it meets federal standards for safety and performance.
• HACR Rated: Approved for use in Heating, Air Conditioning, and Refrigeration applications, meeting specific industry requirements.
• Environmental Compliance: Eaton’s products, including the BQ250250, generally adhere to environmental standards, though specific certifications such as RoHS compliance or other environmental certifications are not mentioned here. For detailed environmental compliance, please refer to Eaton’s official documentation or contact Eaton’s support.

Suitability:

• Ideal for Type BR loadcenters in both residential and commercial applications, the Eaton BQ250250 circuit breaker provides reliable circuit protection with independent tripping capability and HACR rating. Its compact quadplex design allows efficient use of space while ensuring safety and compliance with industry standards.
